Pinpoint Test A: The Anti-Lock Brake System (Abs) Control Module Does Not Respond To The Diagnostic Tool

WARNING: This page is about a different car, the 2004 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

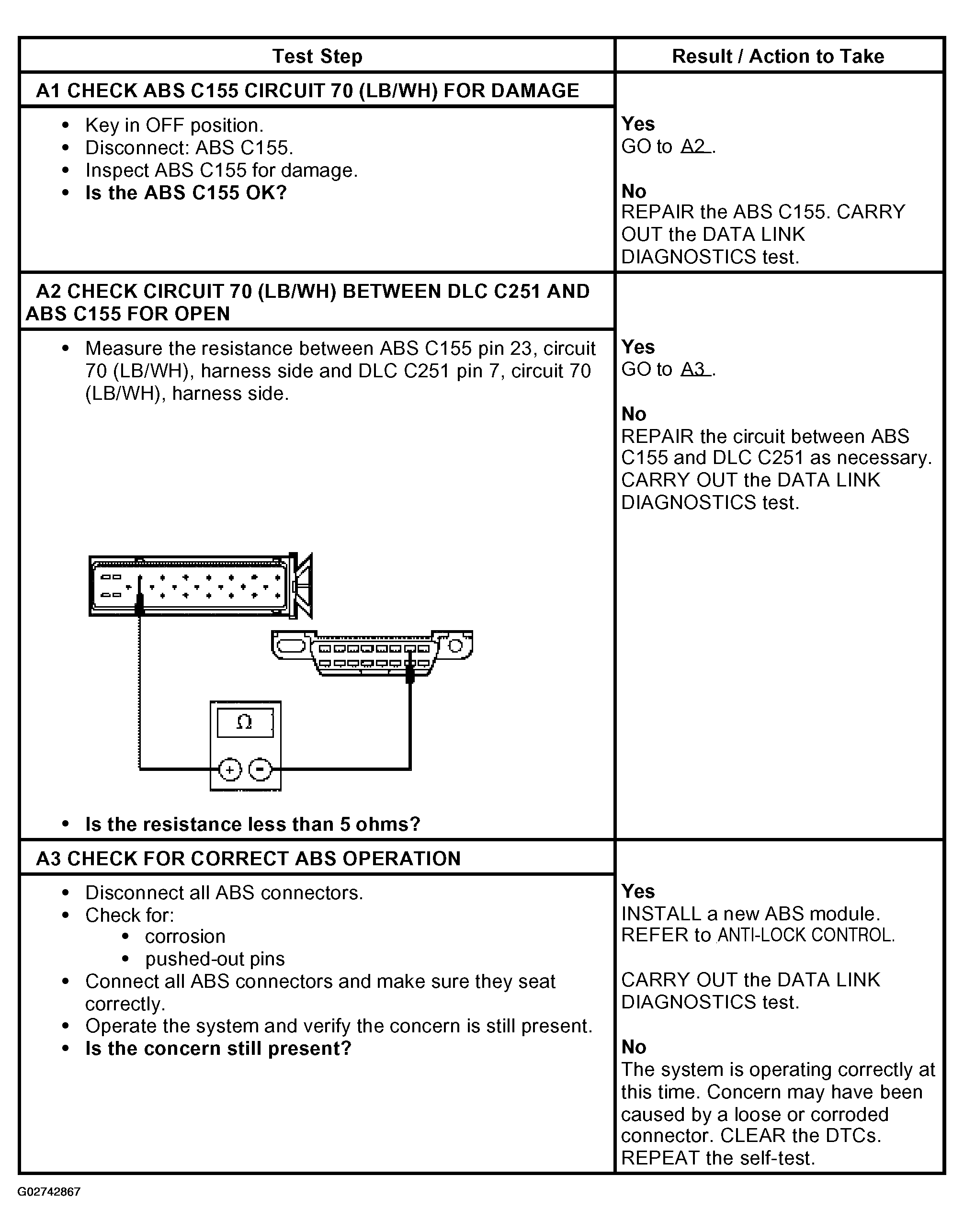

Fig 1: Pinpoint Test A: Anti-Lock Brake System (ABS) Control Module Does Not Respond To Diagnostic Tool (Step A1-A3)
G02742867Courtesy of FORD MOTOR CO.
