Pinpoint Test B: The Restraint Control Module (RCM) Does Not Respond To The Diagnostic Tool

WARNING: This page is about a different car, the 2004 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

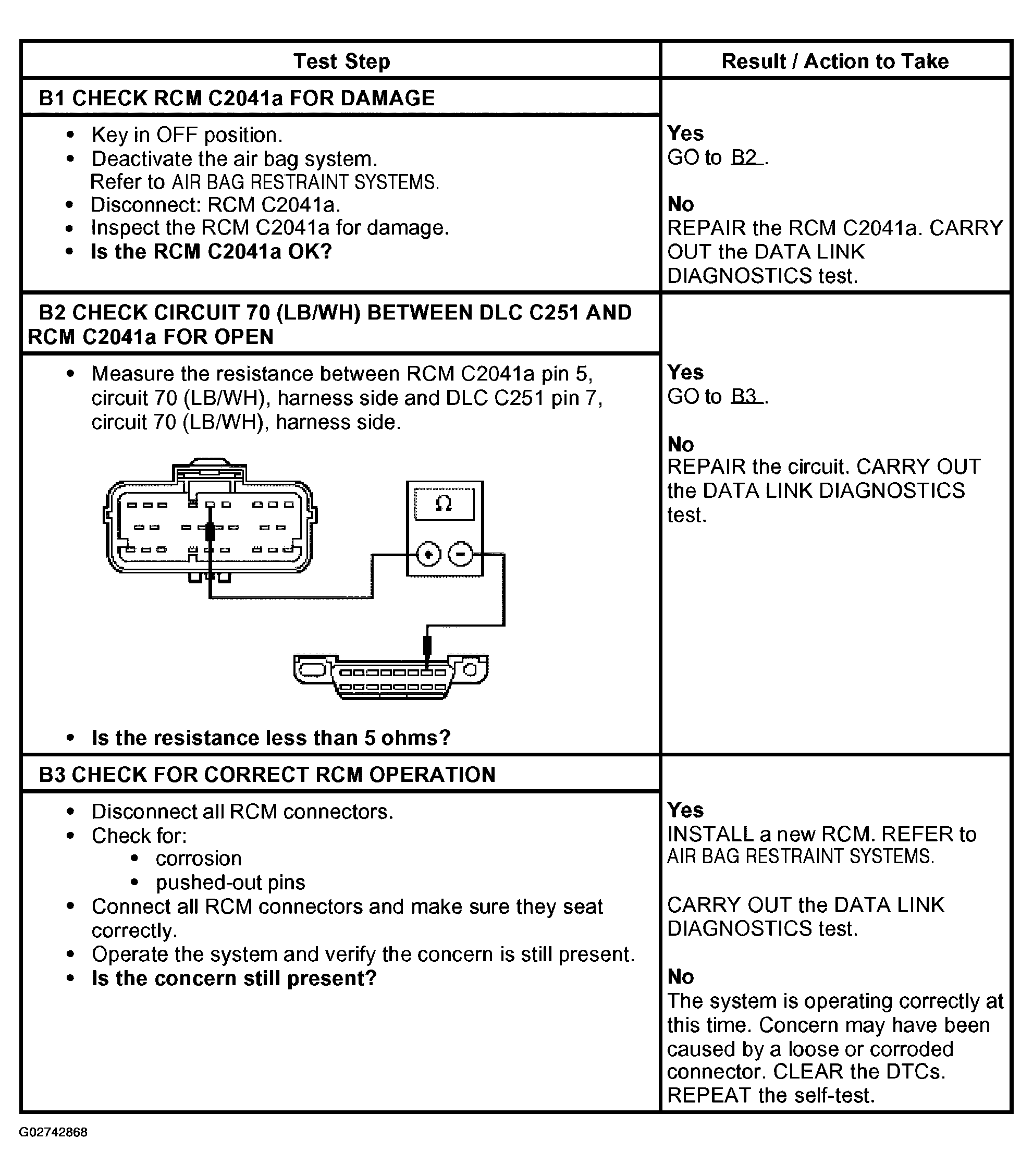

Fig 1: Pinpoint Test B: The Restraint Control Module (RCM) Does Not Respond To The Diagnostic Tool (Step B1-B3)
G02742868Courtesy of FORD MOTOR CO.
