Pinpoint Test C: The Generic Electronic Module (Gem) Does Not Respond To The Diagnostic Tool
WARNING: This page is about a different car, the 2004 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

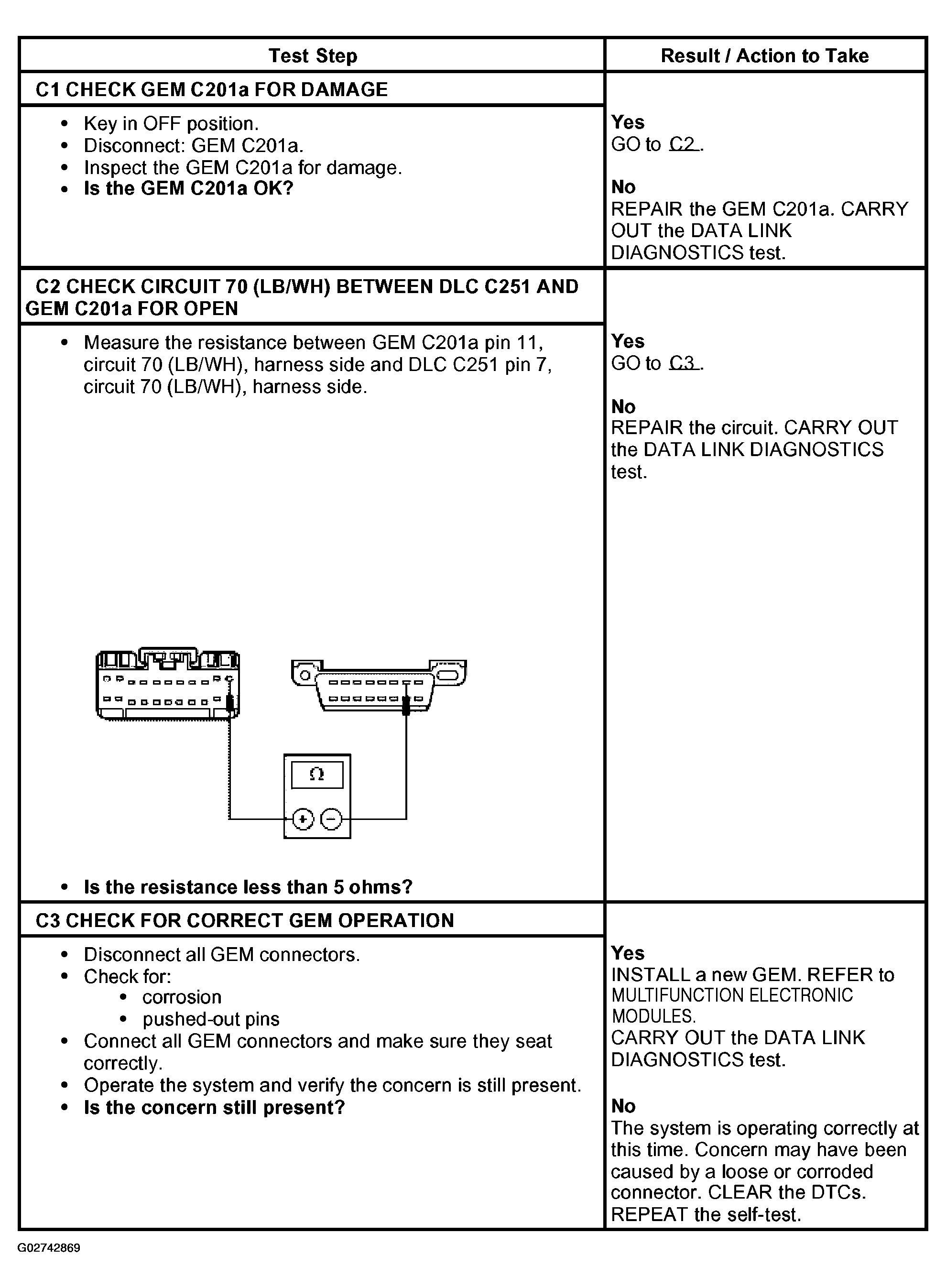

Fig 1: Pinpoint Test C: The Generic Electronic Module (GEM) Does Not Respond To The Diagnostic Tool (Step C1-C3)
