Pinpoint Test E: The Powertrain Control Module (Pcm) Does Not Respond To The Diagnostic Tool

WARNING: This page is about a different car, the 2004 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

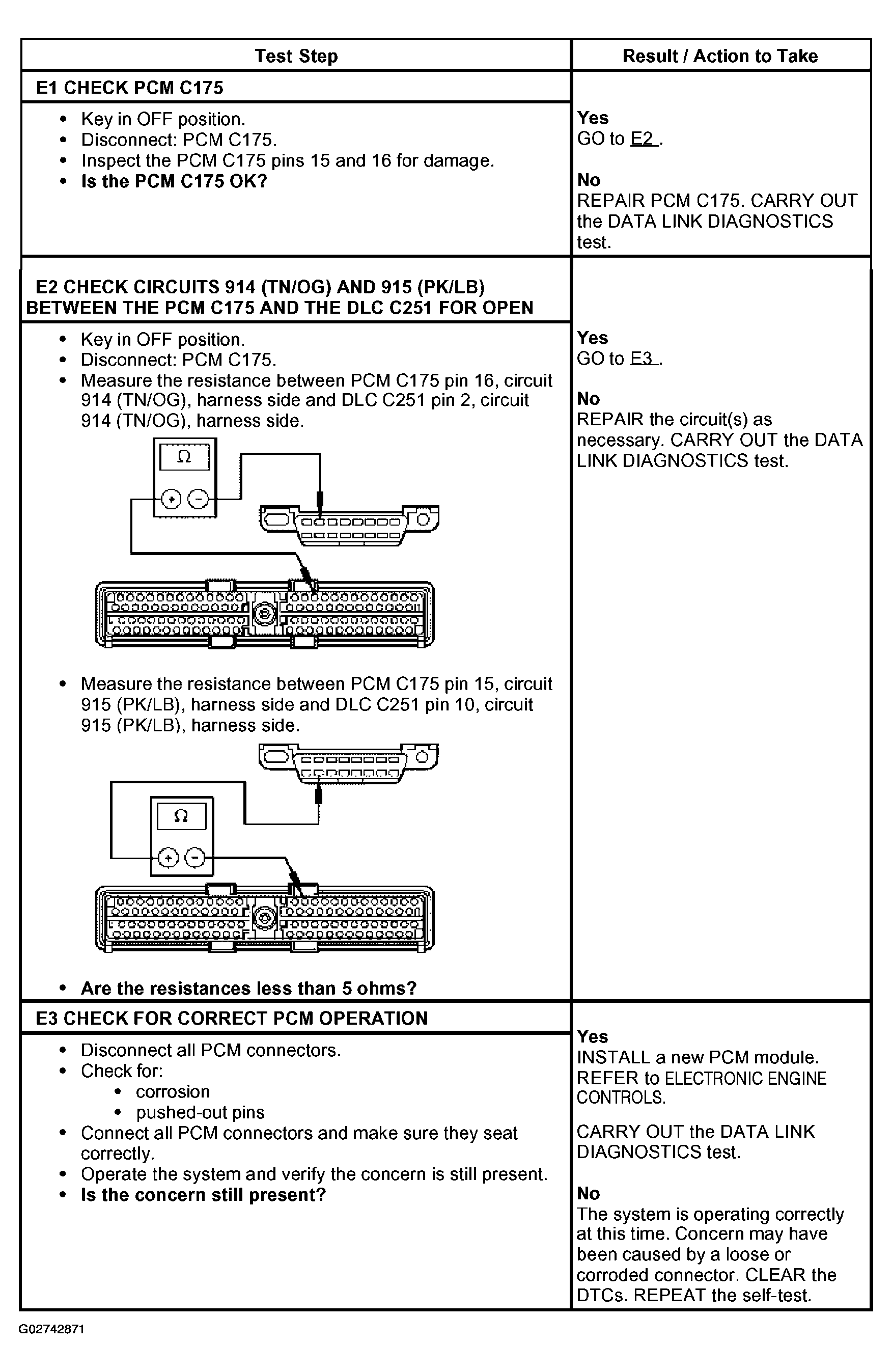

Fig 1: Pinpoint Test E: The Powertrain Control Module (PCM) Does Not Respond To The Diagnostic Tool (Step E1-E3)
G02742871Courtesy of FORD MOTOR CO.
