Crankshaft Position Sensor: Service and Repair

REMOVAL
1. Remove the air conditioning compressor.

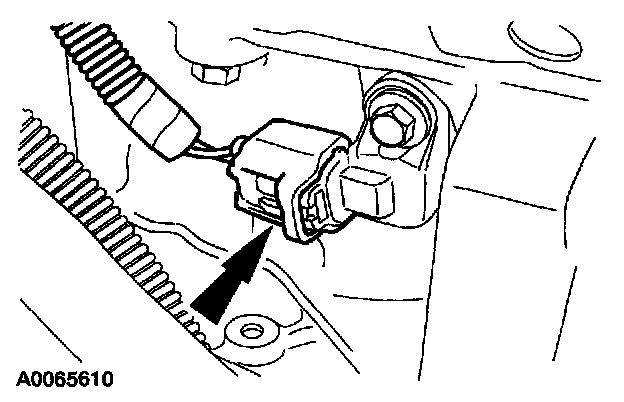

2. Disconnect the Crankshaft Position (CKP) sensor electrical connector.

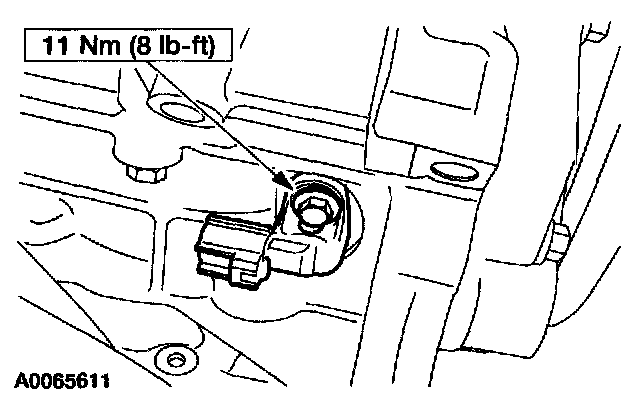

3. Remove the bolt and the CKP sensor.

INSTALLATION
1. To install, reverse the removal procedure.

NOTE: Apply clean engine oil to the O-ring before installation.
