Pinpoint Test G: Doors Do Not Lock/Unlock Using Remote Transmitter

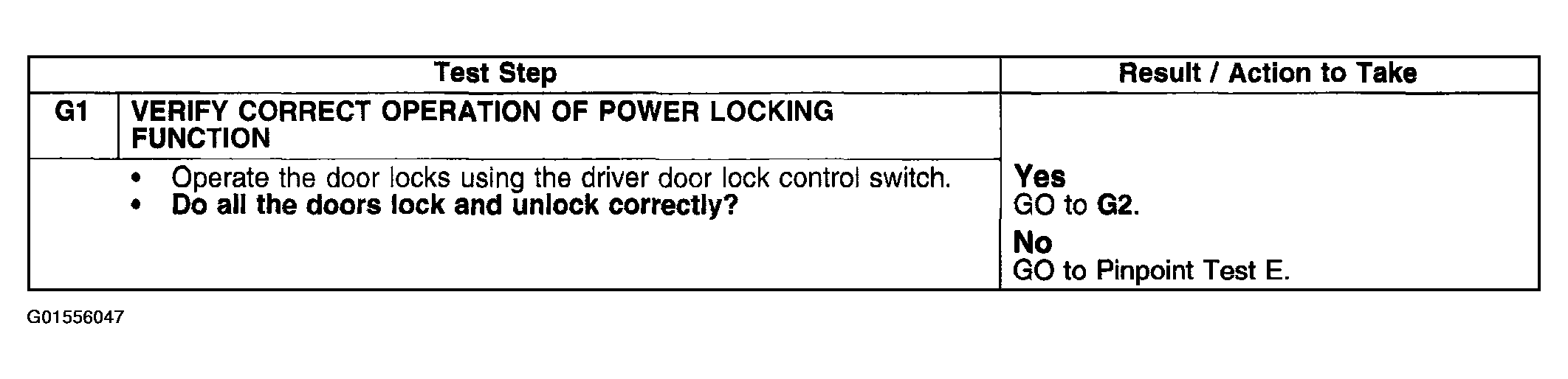

Fig 1: Pinpoint Test G: Doors Do Not Lock/Unlock Using Remote Transmitter (G1)
G01556047Courtesy of FORD MOTOR CO.

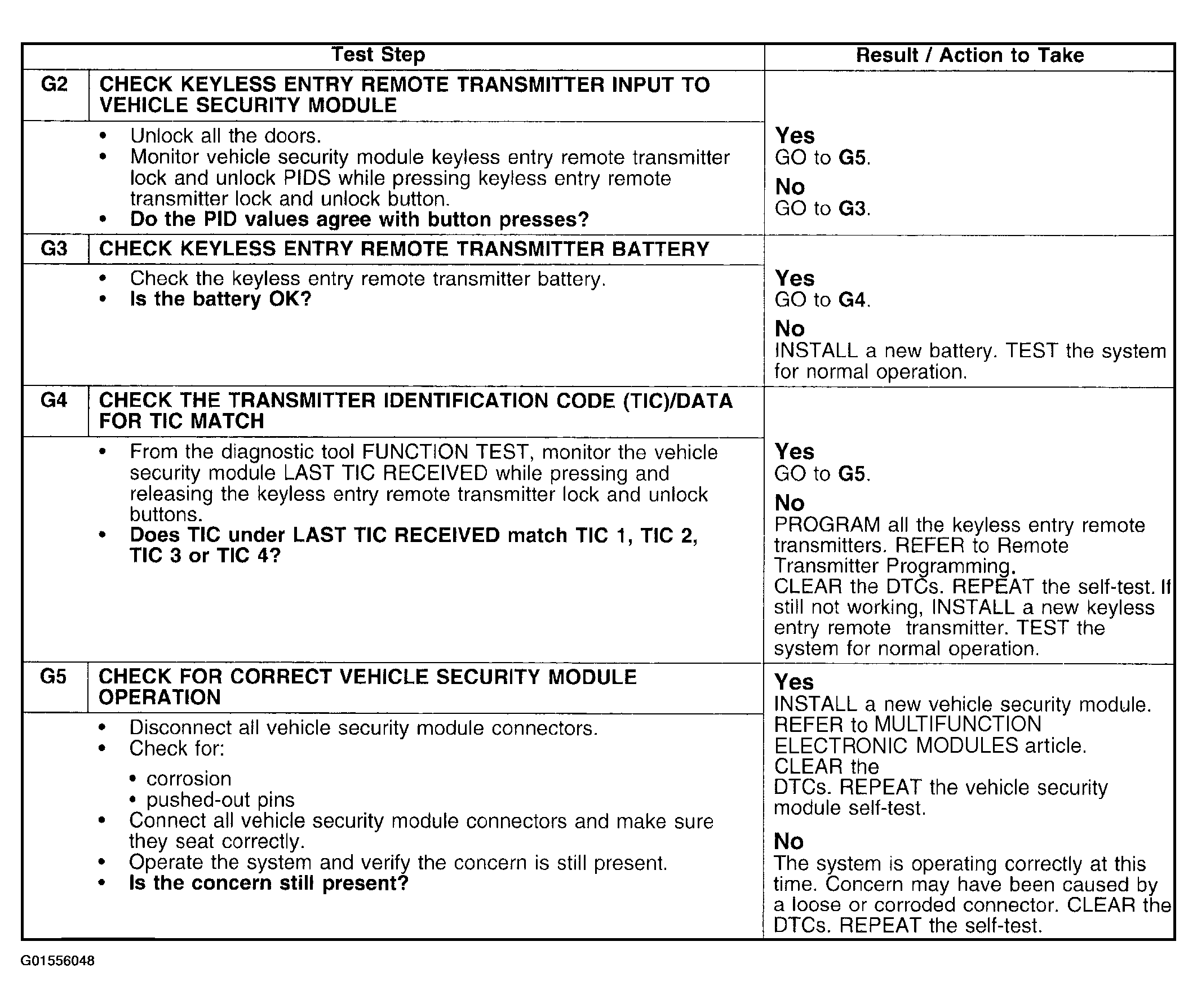

Fig 2: Pinpoint Test G: Doors Do Not Lock/Unlock Using Remote Transmitter (G2-G5)
G01556048Courtesy of FORD MOTOR CO.
