Pinpoint Test K: Remote Keyless Entry Transmitter Out Of Synchronization

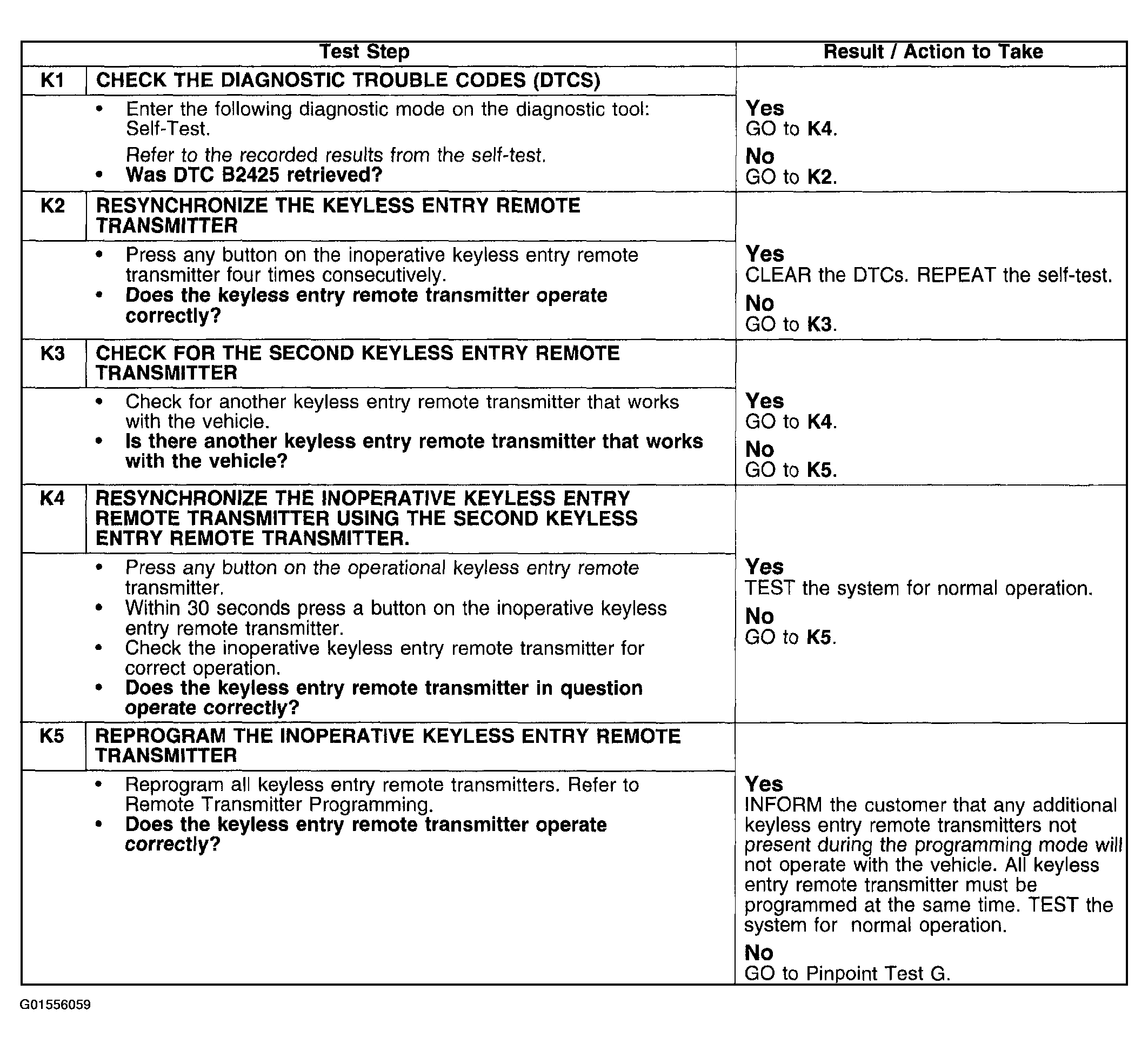

Fig 1: Pinpoint Test K: Remote Keyless Entry Transmitter Out Of Synchronization (K1-K5)
G01556059Courtesy of FORD MOTOR CO.
