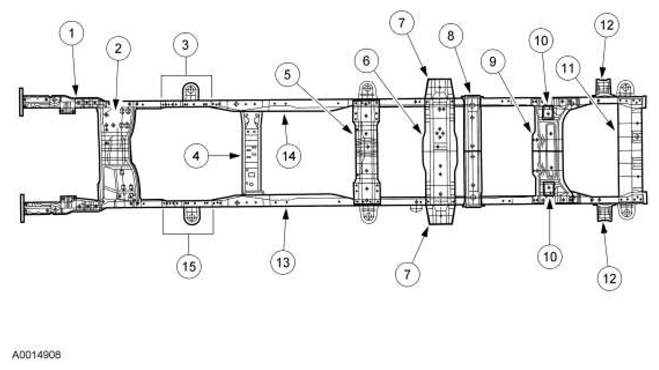

| 1 |
5C145 |
Frame - front stub assembly (part of frame assembly (5005)) |
| 2 |
- |
Crossmember - engine support (part of 5C145) (part of frame assembly (5005)) |
| 3 |
5015 |
Side rail reinforcement - RH (part of frame assembly (5005)) |
| 4 |
5060 |
Crossmember - transmission |
| 5 |
- |
Crossmember - Number 2 (part of frame assembly (5005)) |
| 6 |
- |
Crossmember - Number 3 (part of frame assembly (5005)) |
| 7 |
5785 |
Spring hanger |
| 8 |
- |
Crossmember - Number 4A (part of frame assembly (5005)) |
| 9 |
- |
Crossmember - Number 5 (part of frame assembly (5005)) |
| 10 |
18169 |
Shock absorber bracket |
| 11 |
- |
Crossmember - Number 6 (part of frame assembly (5005)) |
| 12 |
5575 |
Spring hanger |
| 13 |
- |
Rear side rail - LH (part of frame assembly (5005)) |
| 14 |
- |
Rear side rail - RH (part of frame assembly (5005)) |
| 15 |
5016 |
Side rail reinforcement - LH (part of frame assembly (5005)) |
