Pinpoint Tests

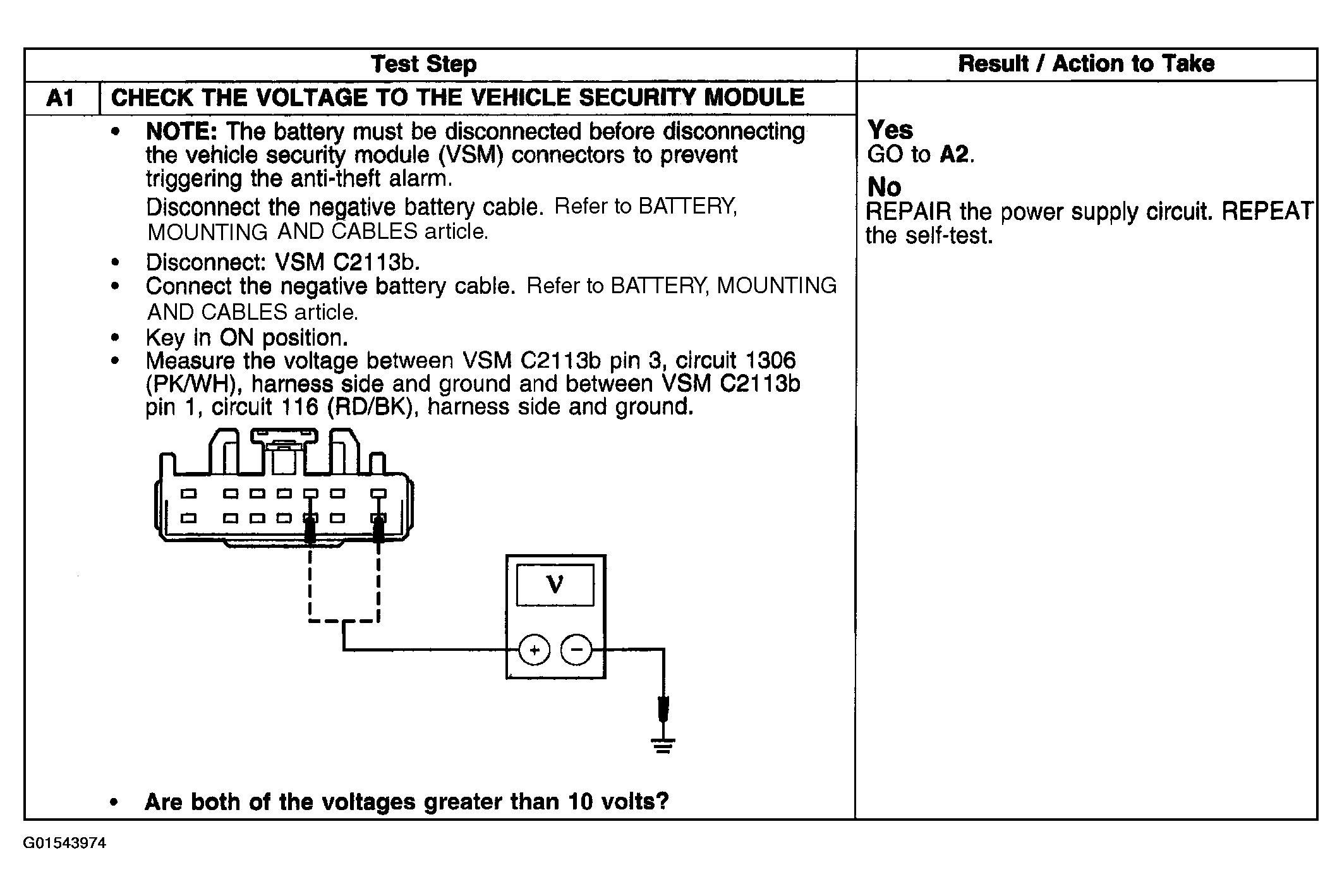

Fig 1: Pinpoint Test A: No Communication With Vehicle Security Module (VSM) (A1)
G01543974Courtesy of FORD MOTOR CO.

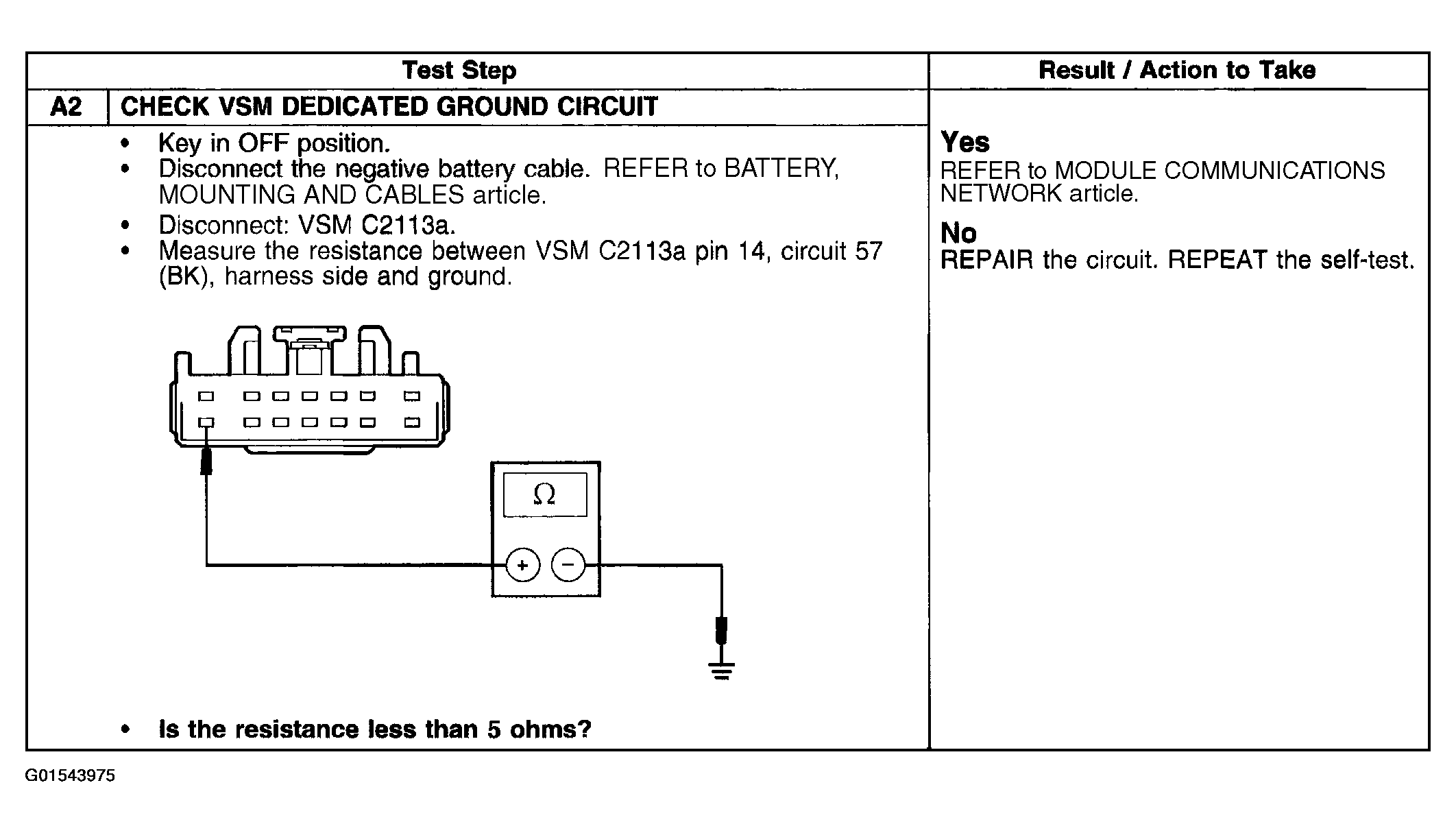

Fig 2: Pinpoint Test A: No Communication With Vehicle Security Module (VSM) (A2)
G01543975Courtesy of FORD MOTOR CO.
