Possible Causes

WARNING: This page is about a different car, the 2003 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

An open in circuit 31-FA45 (BK), 31S-FA18 (BK/RD), 30S-FA18 (RD/BK), 30-FA24 (RD/OG) or 31S-FA23 (BK/BU).
A short to ground in circuit 8-FA45 (BN/BU).
A short to voltage in circuit 31S-FA23 (BK/BU).
A/C blower relay.
Blower motor control module.
DATC module.

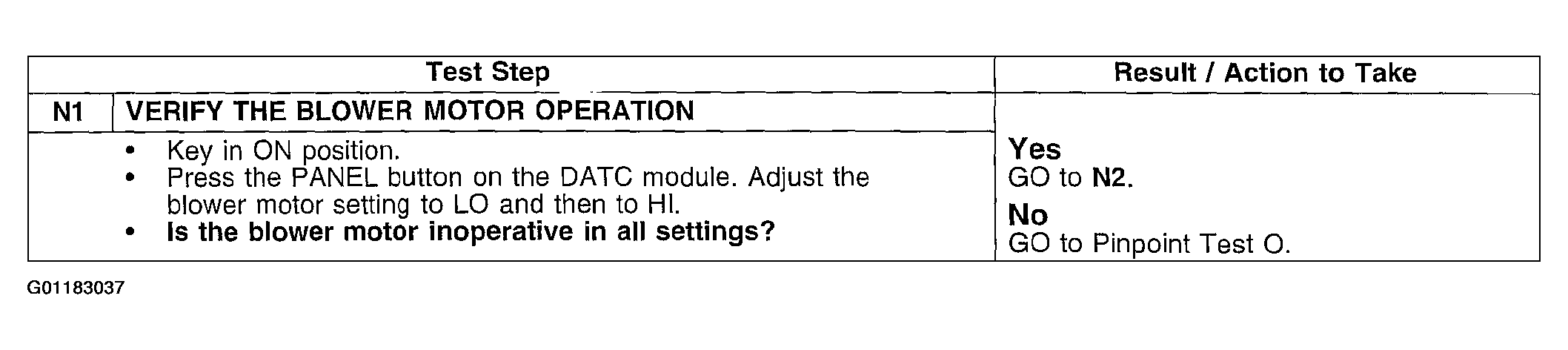

Fig 1: Pinpoint Test N: Blower Motor Is Inoperative (Steps N1)

Courtesy of FORD MOTOR CO.

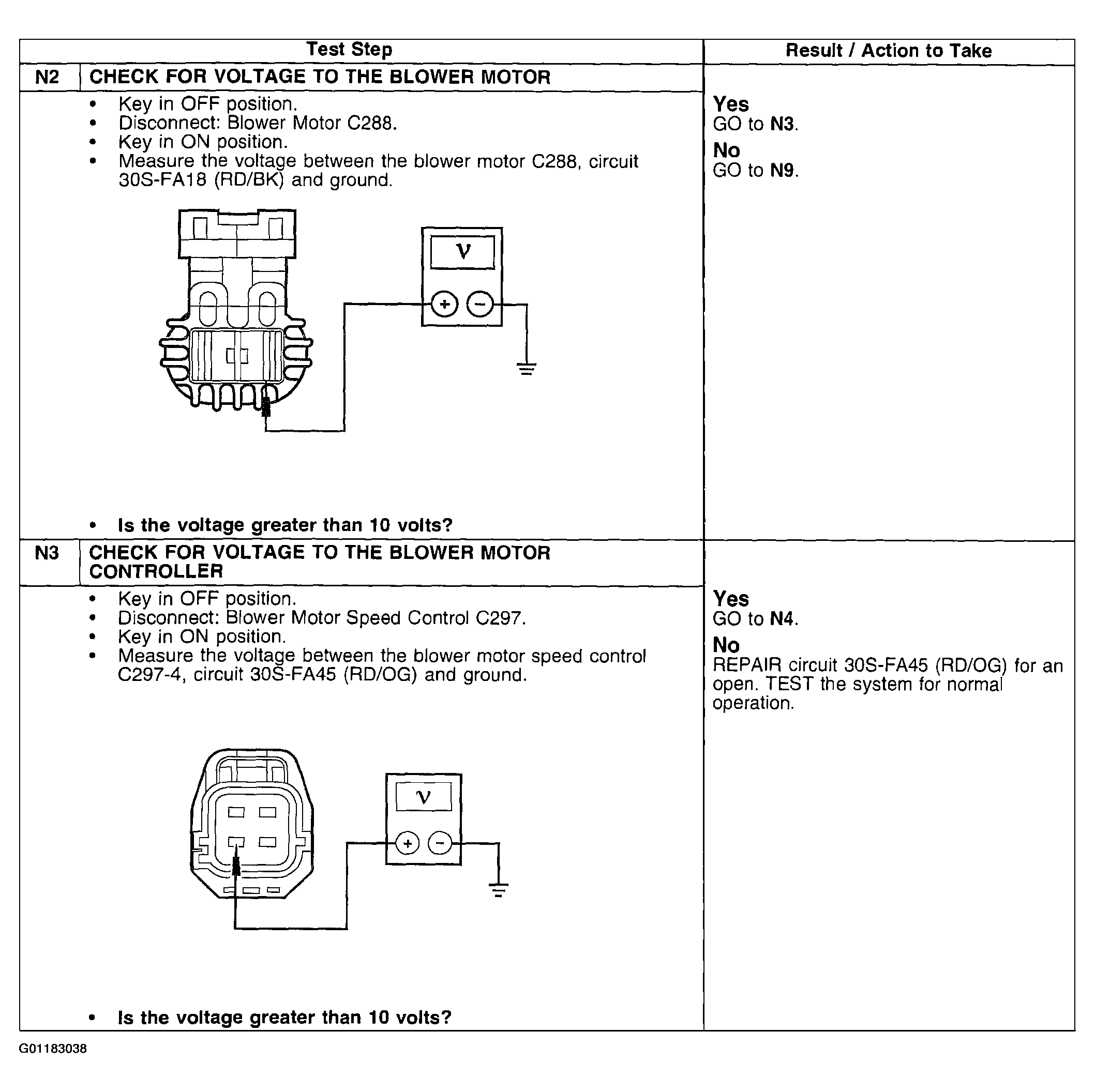

Fig 2: Pinpoint Test N: Blower Motor Is Inoperative (Steps N2-N3)

Courtesy of FORD MOTOR CO.

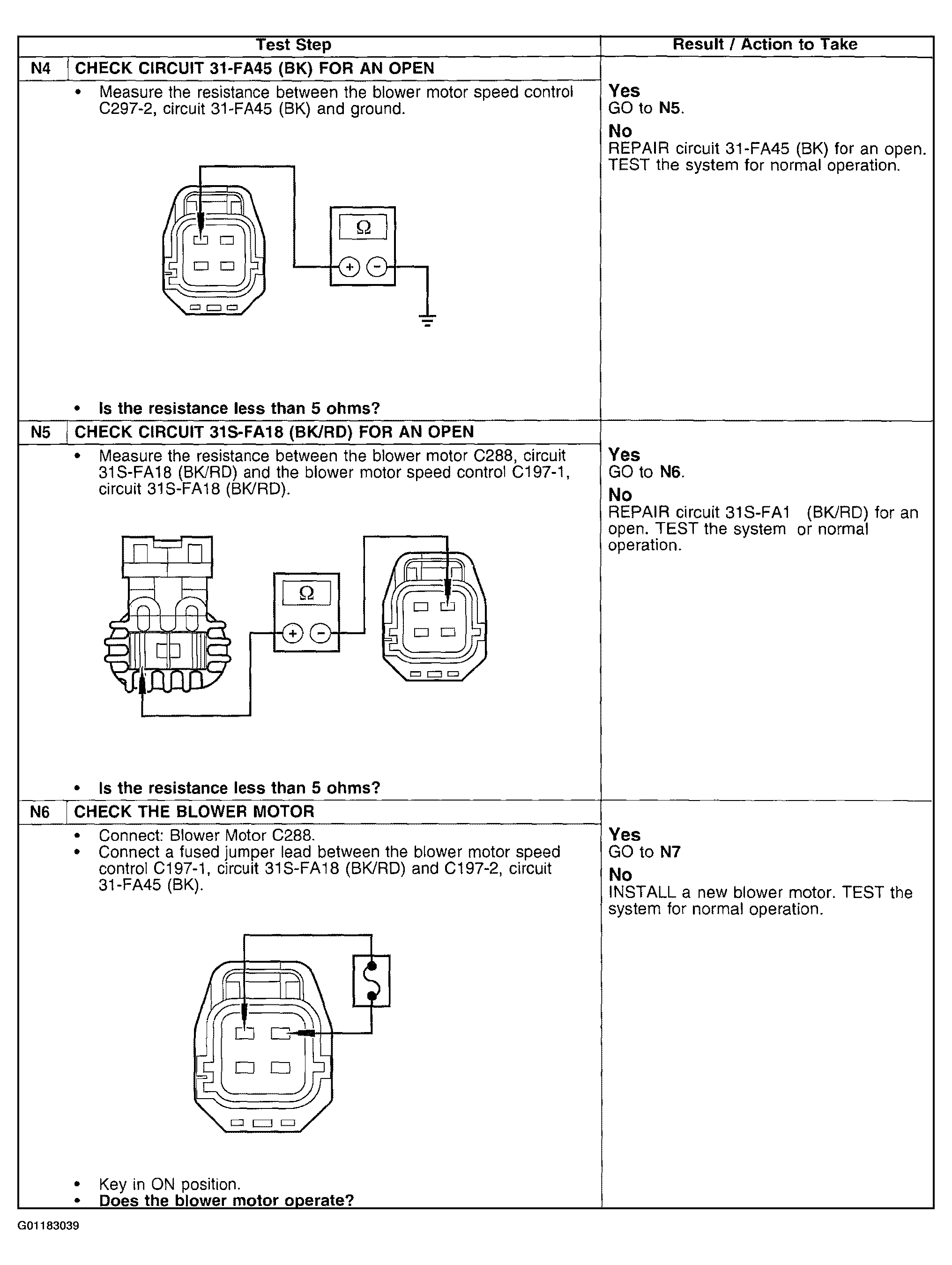

Fig 3: Pinpoint Test N: Blower Motor Is Inoperative (Steps N4-N6)

Courtesy of FORD MOTOR CO.

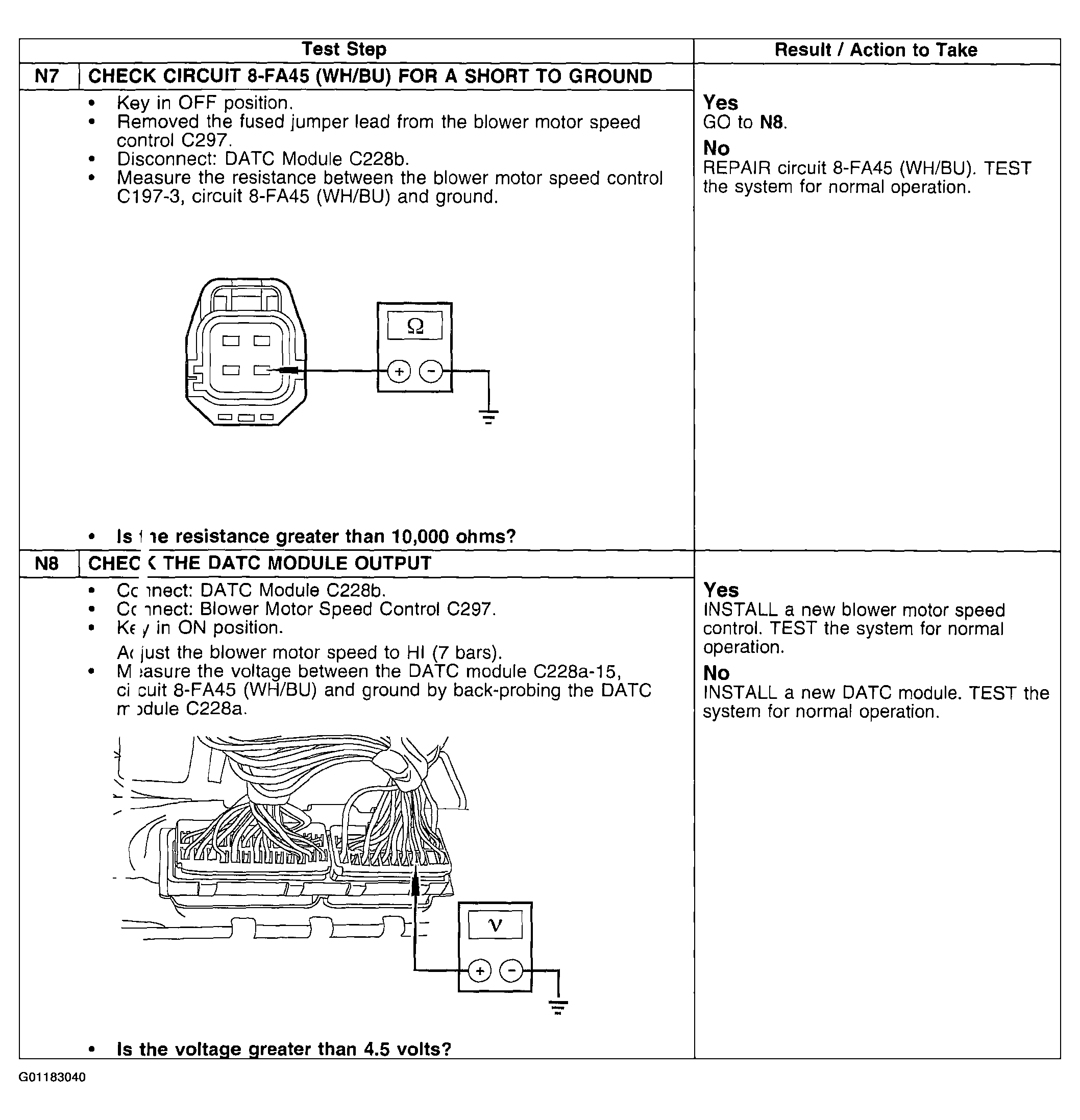

Fig 4: Pinpoint Test N: Blower Motor Is Inoperative (Steps N7-N8)

Courtesy of FORD MOTOR CO.

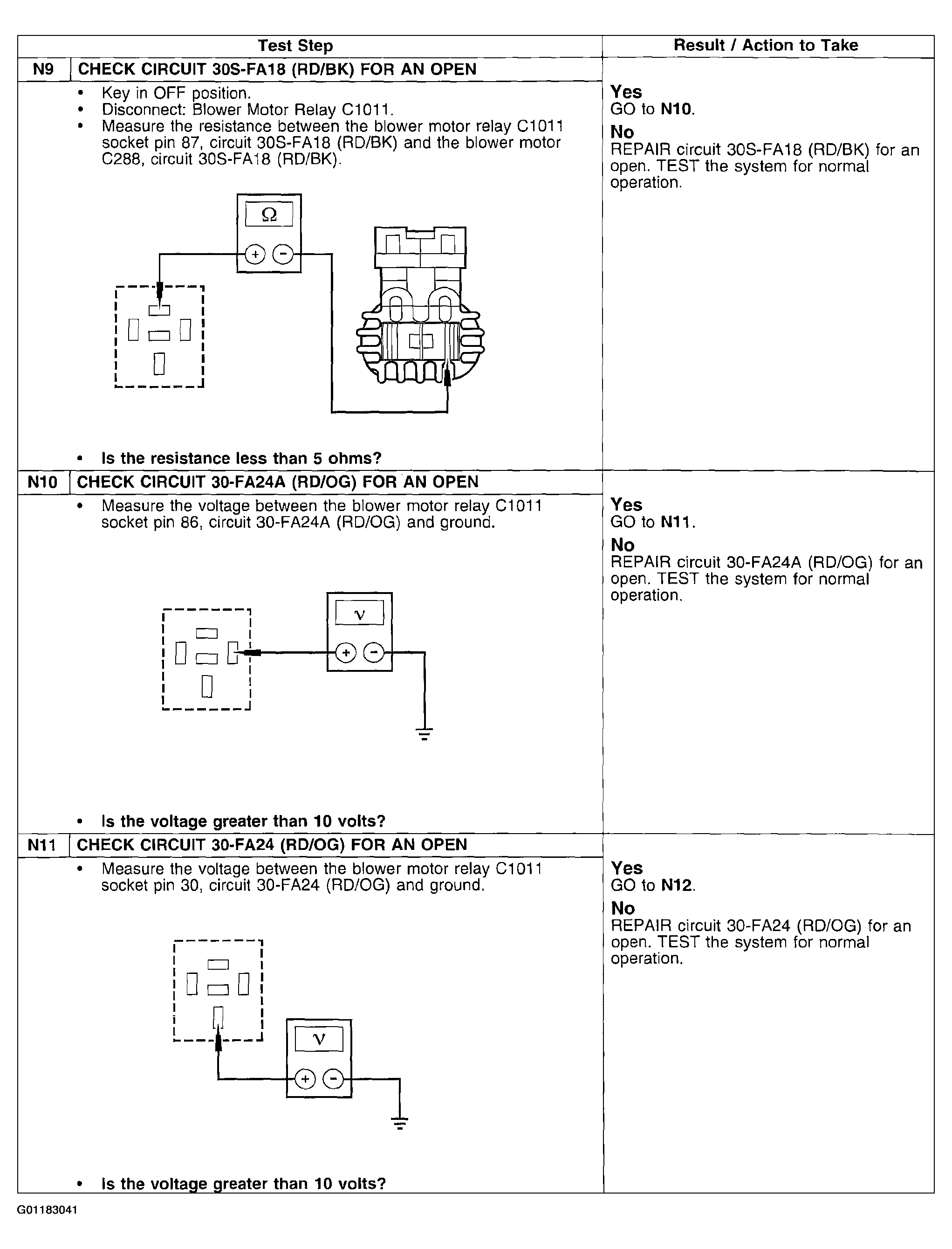

Fig 5: Pinpoint Test N: Blower Motor Is Inoperative (Steps N9-N11)

Courtesy of FORD MOTOR CO.

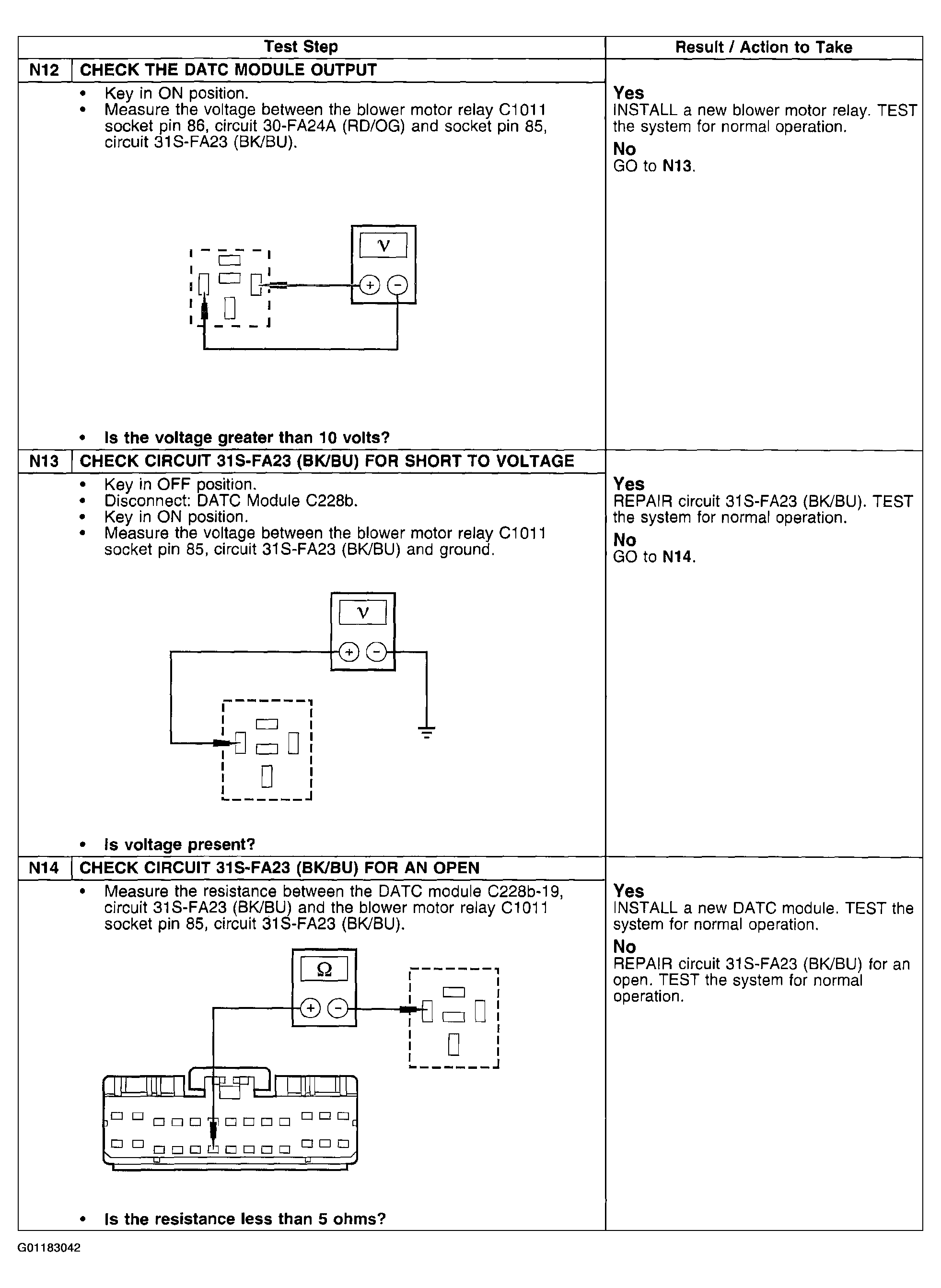

Fig 6: Pinpoint Test N: Blower Motor Is Inoperative (Steps N12-N14)

Courtesy of FORD MOTOR CO.
