Pinpoint Test F: Doors Do Not Lock/Unlock Using Keyless Entry Keypad

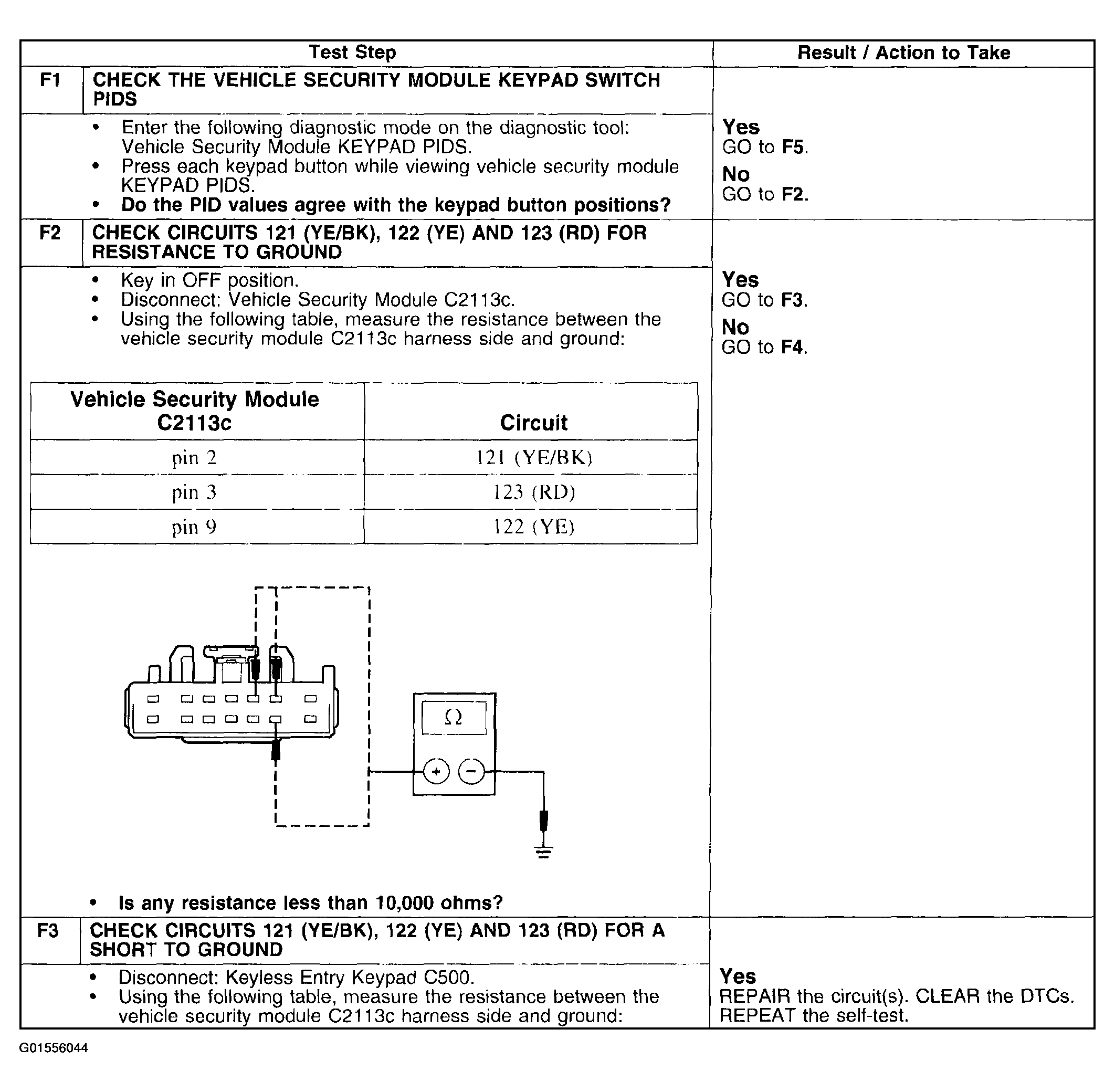

Fig 1: Pinpoint Test F: Doors Do Not Lock/Unlock Using Keyless Entry Keypad (F1-F3)
G01556044Courtesy of FORD MOTOR CO.

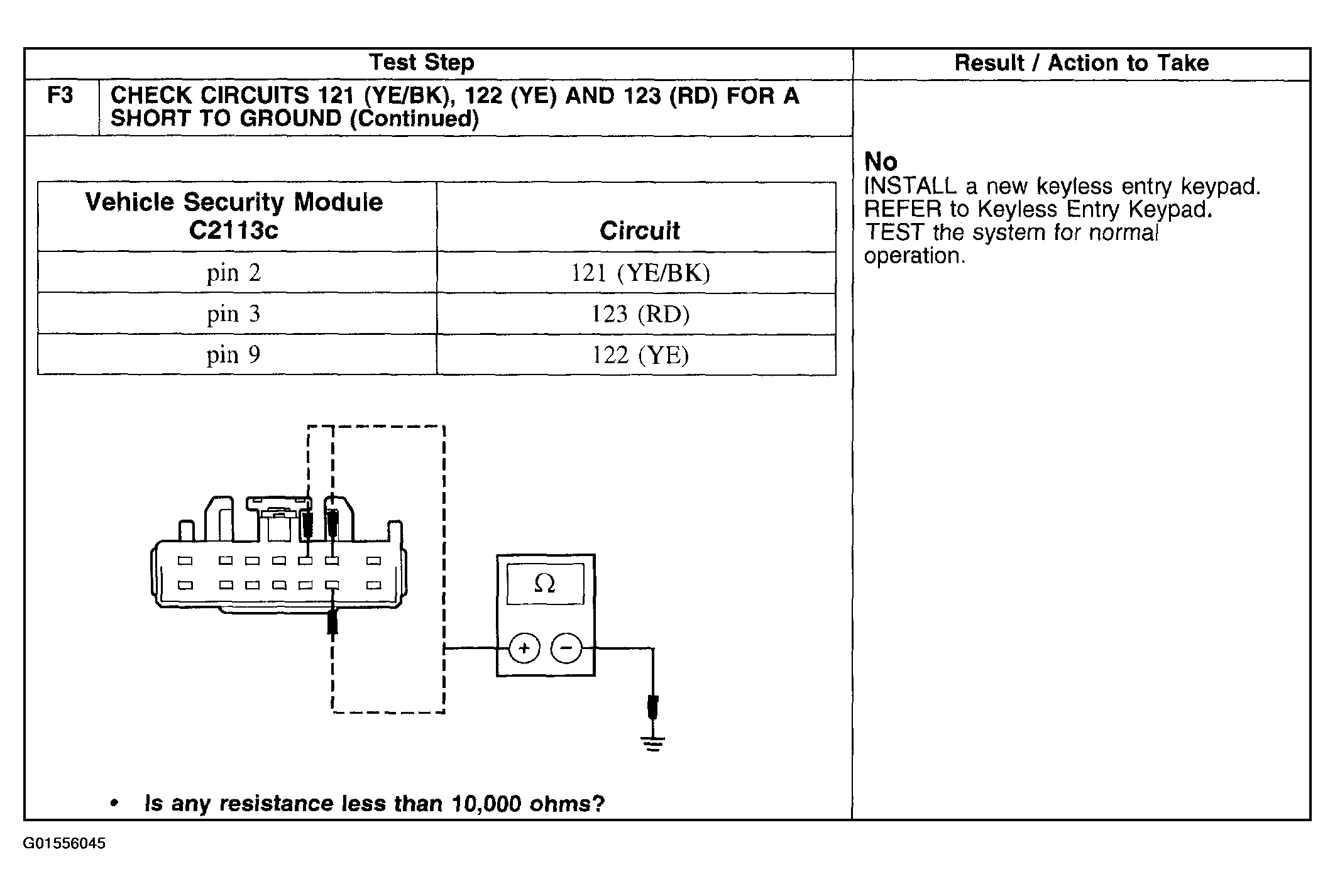

Fig 2: Pinpoint Test F: Doors Do Not Lock/Unlock Using Keyless Entry Keypad (F3)
G01556045Courtesy of FORD MOTOR CO.

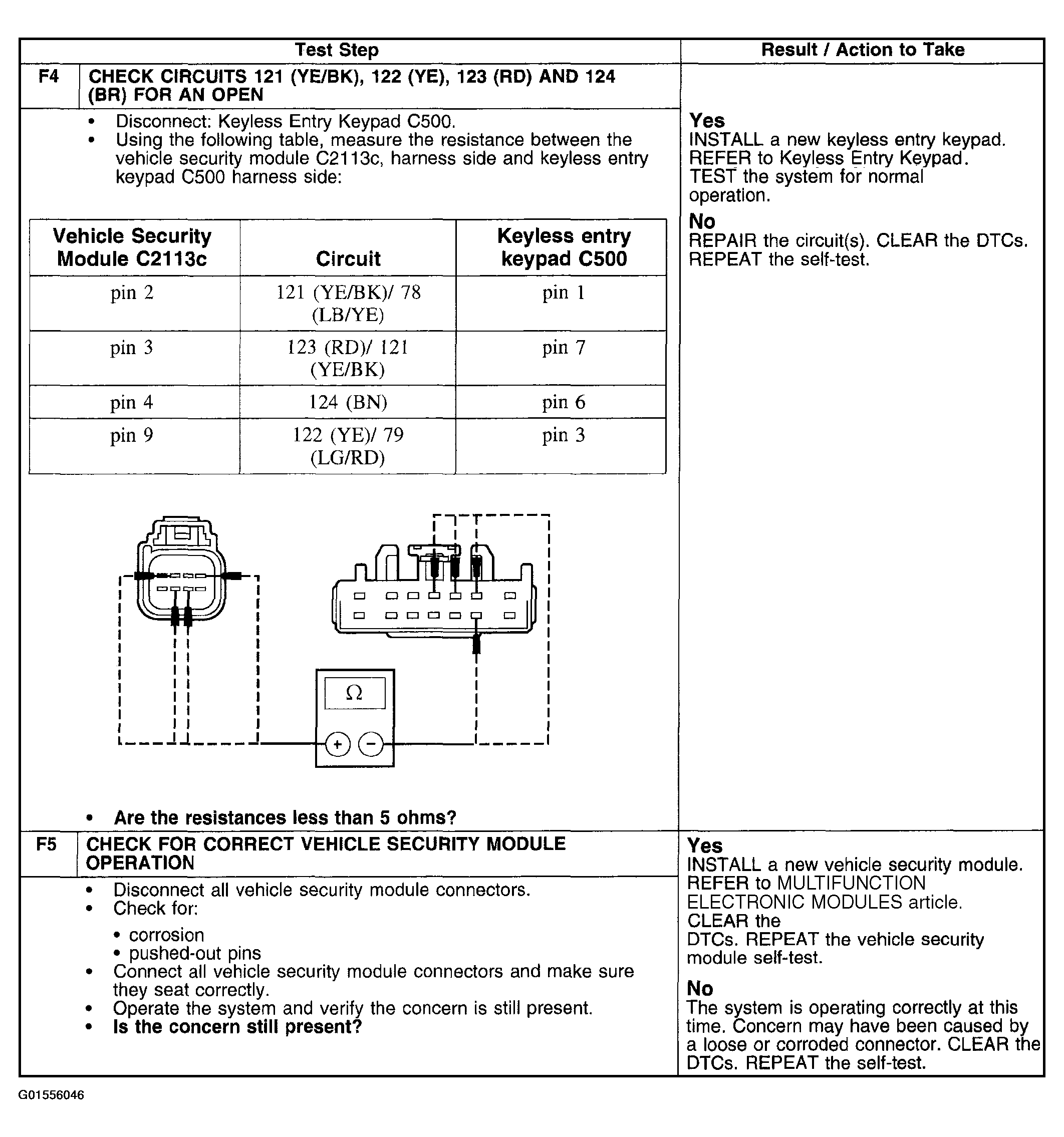

Fig 3: Pinpoint Test F: Doors Do Not Lock/Unlock Using Keyless Entry Keypad (F4 & F5)
G01556046Courtesy of FORD MOTOR CO.
