Diagnosis And Testing Chart - Pinpoint Test I: Flash With Last Switch Pressed, Dynamic Pull Occurs At Throttle And Speed Control Inoperative

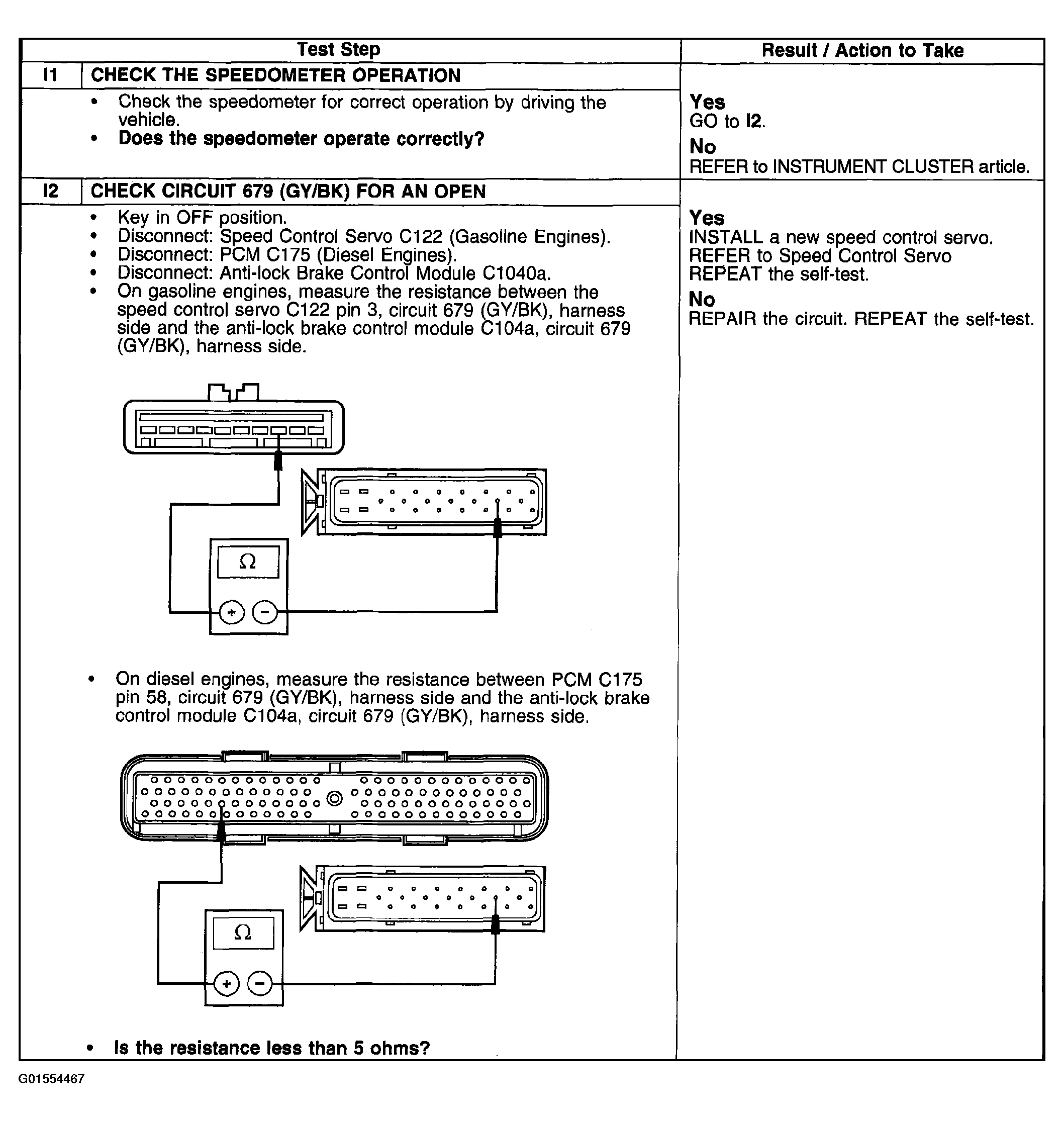

Fig 1: Diagnosis And Testing Chart - Pinpoint Test I: Flash With Last Switch Pressed, Dynamic Pull Occurs At Throttle And Speed Control Inoperative (I1 & I2)
