Pinpoint Test B: No Communication With The Four-Wheel Drive (4WD) Control Module - Electronic Shift: Testing

Fig 1: Identifying Pinpoint Test B: No Communication With Four-Wheel Drive (4WD) Control Module (B1)
G01273946Courtesy of FORD MOTOR CO.

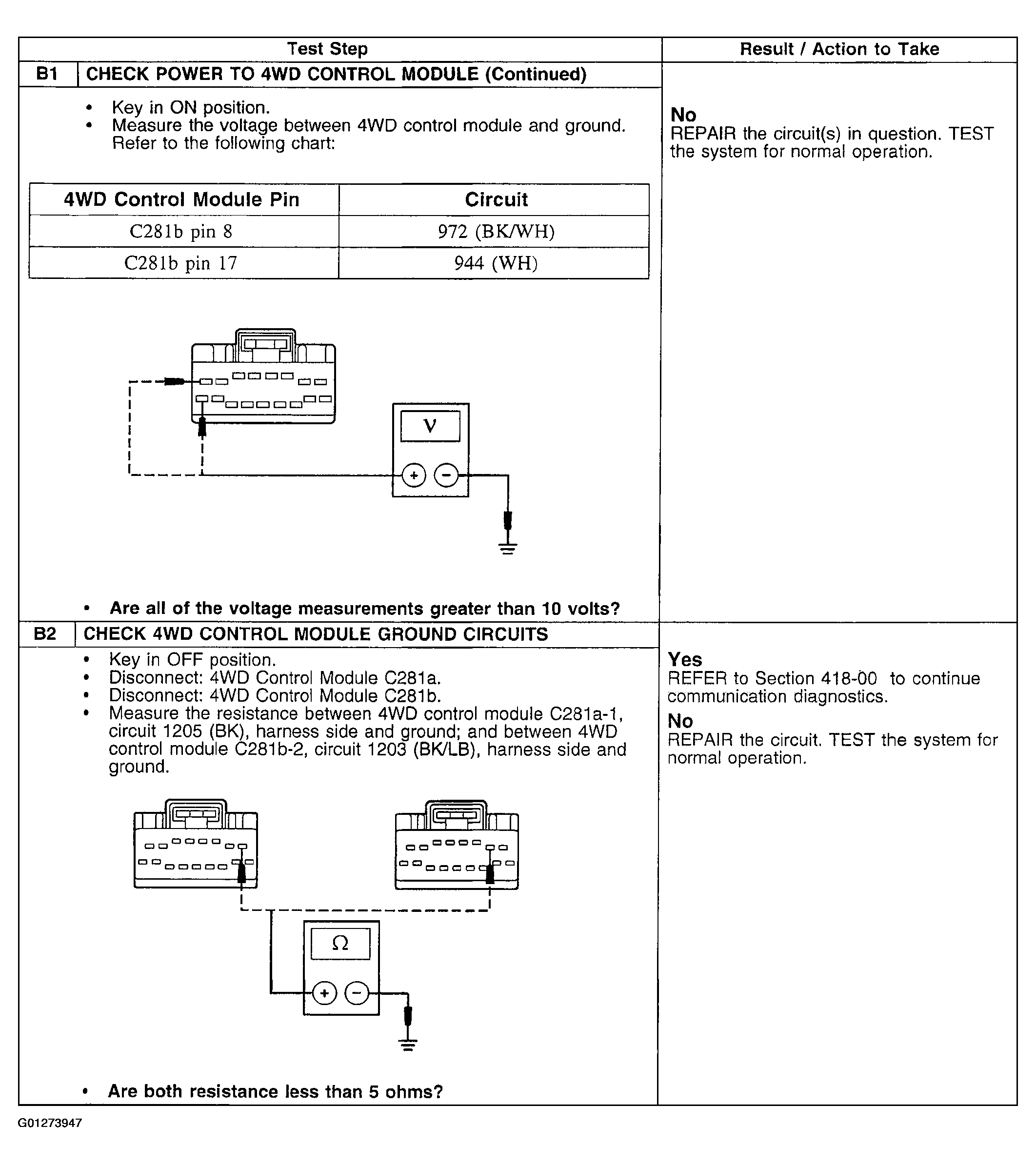

Fig 2: Identifying Pinpoint Test B: No Communication With Four-Wheel Drive (4WD) Control Module (B1-B2)
G01273947Courtesy of FORD MOTOR CO.
