Function Selector Switch

Fig 1: Identifying Function Selector Switch Terminal View (1 Of 2)
G01271431Courtesy of FORD MOTOR CO.

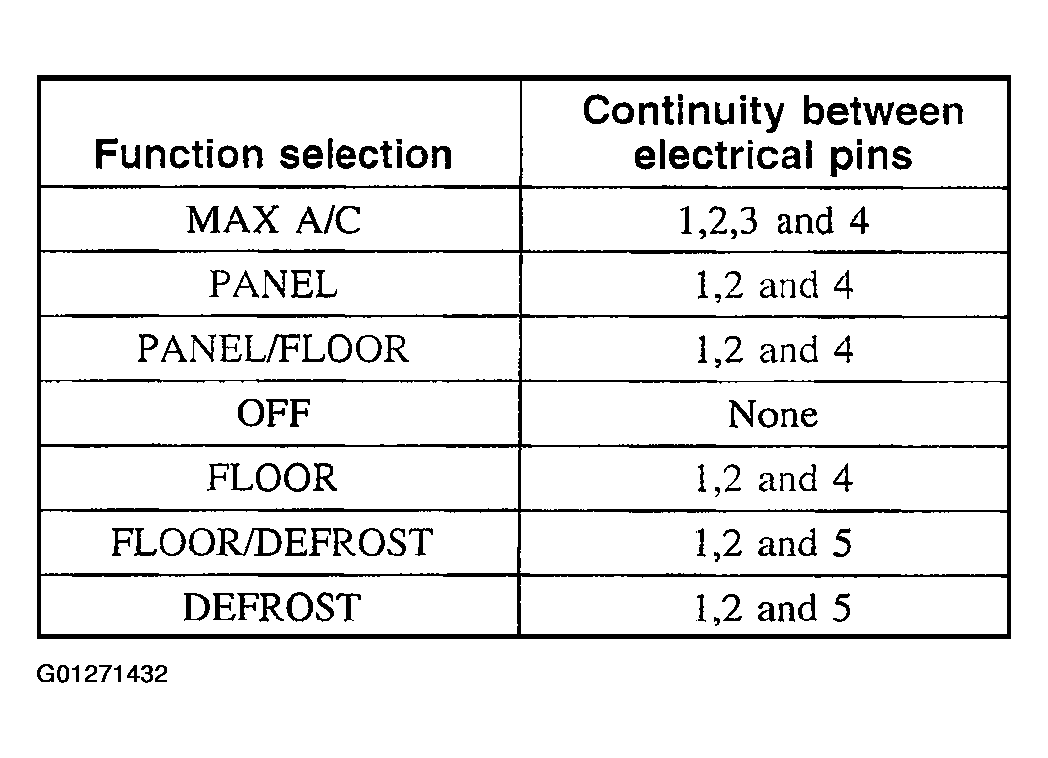

Fig 2: Identifying Function Selector Switch Terminal View (2 Of 2)
G01271432Courtesy of FORD MOTOR CO.
