Transmission Range Sensor

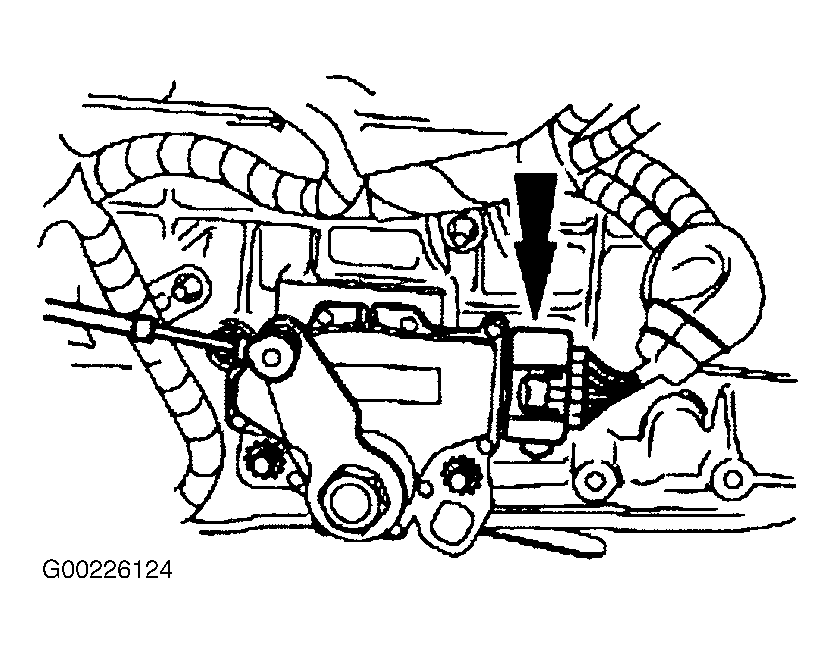

- With the vehicle in the Neutral, position on a hoist. Move the rubber boot back to gain access to the connector. Disconnect the digital TR sensor connector. See Fig 1.

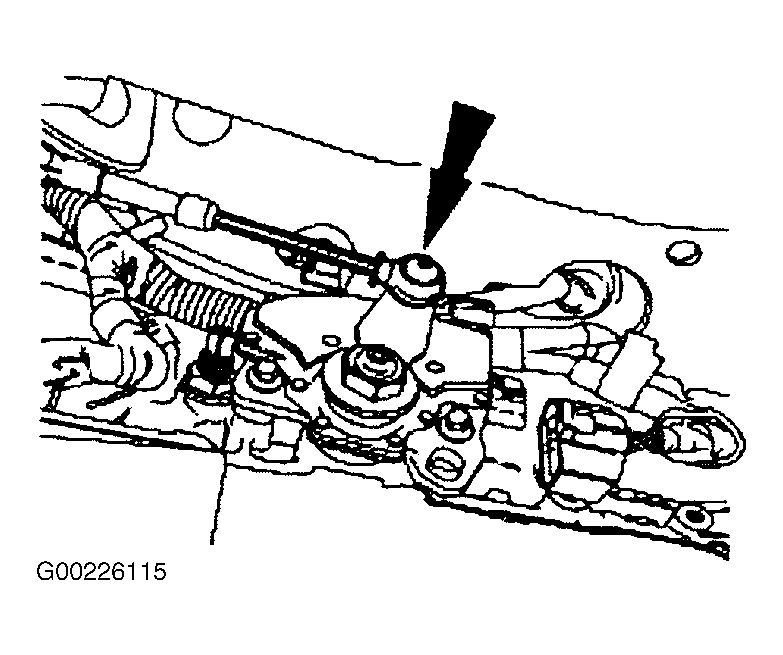

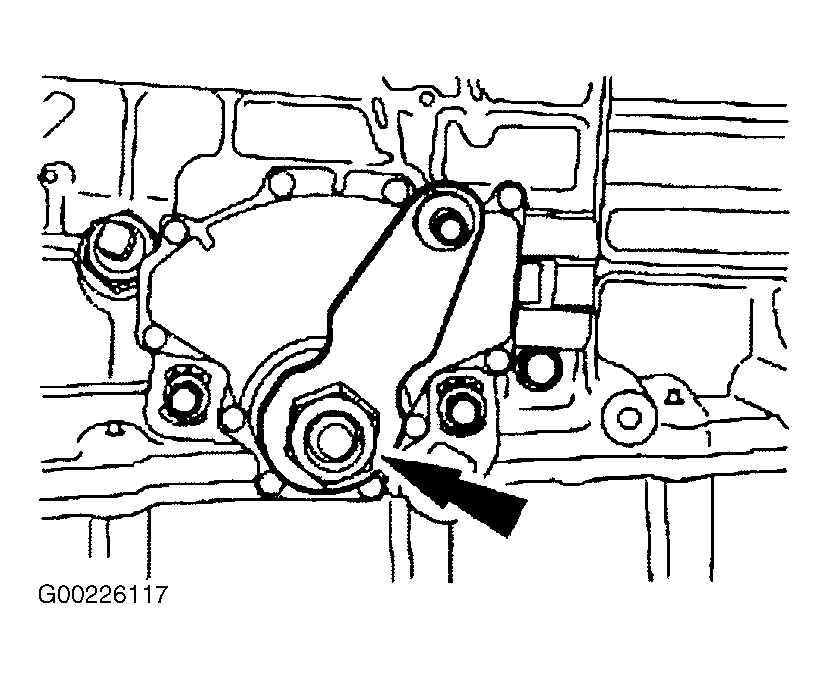

- Remove the shift cable from the manual control lever. See Figure. Remove the outer manual control lever. See Fig 2. Loosen the screws.CAUTION: The digital transmission range sensor must fit flush against the boss on the case to prevent damage to the sensor.
- The manual lever must be in the Neutral position. Using the TR Sensor Alignment Gauge (307-351), align the digital TR sensor and tighten the screws in an alternating sequence. See Fig 3. Tighten screws to specification. See TORQUE SPECIFICATIONS .CAUTION: Tightening one screw before tightening the other may cause the sensor to bind or become damaged.
- Install the outer manual lever. See Fig 2. Tighten bolt to specification. See TORQUE SPECIFICATIONS . Install the shift cable to the manual control lever. See Figure. Reconnect the digital TR sensor connector. See Fig 1. Move the rubber boot back over the connector.
- Verify that the shift cable is adjusted correctly. See SHIFT CABLE . Lower the vehicle. Verify that the vehicle will start in Park and Neutral, and that the reverse lamps illuminate in Reverse.
