Pinpoint Test W: The Temperature Control Is Inoperative Using The Front Auxiliary Climate Controls: Testing

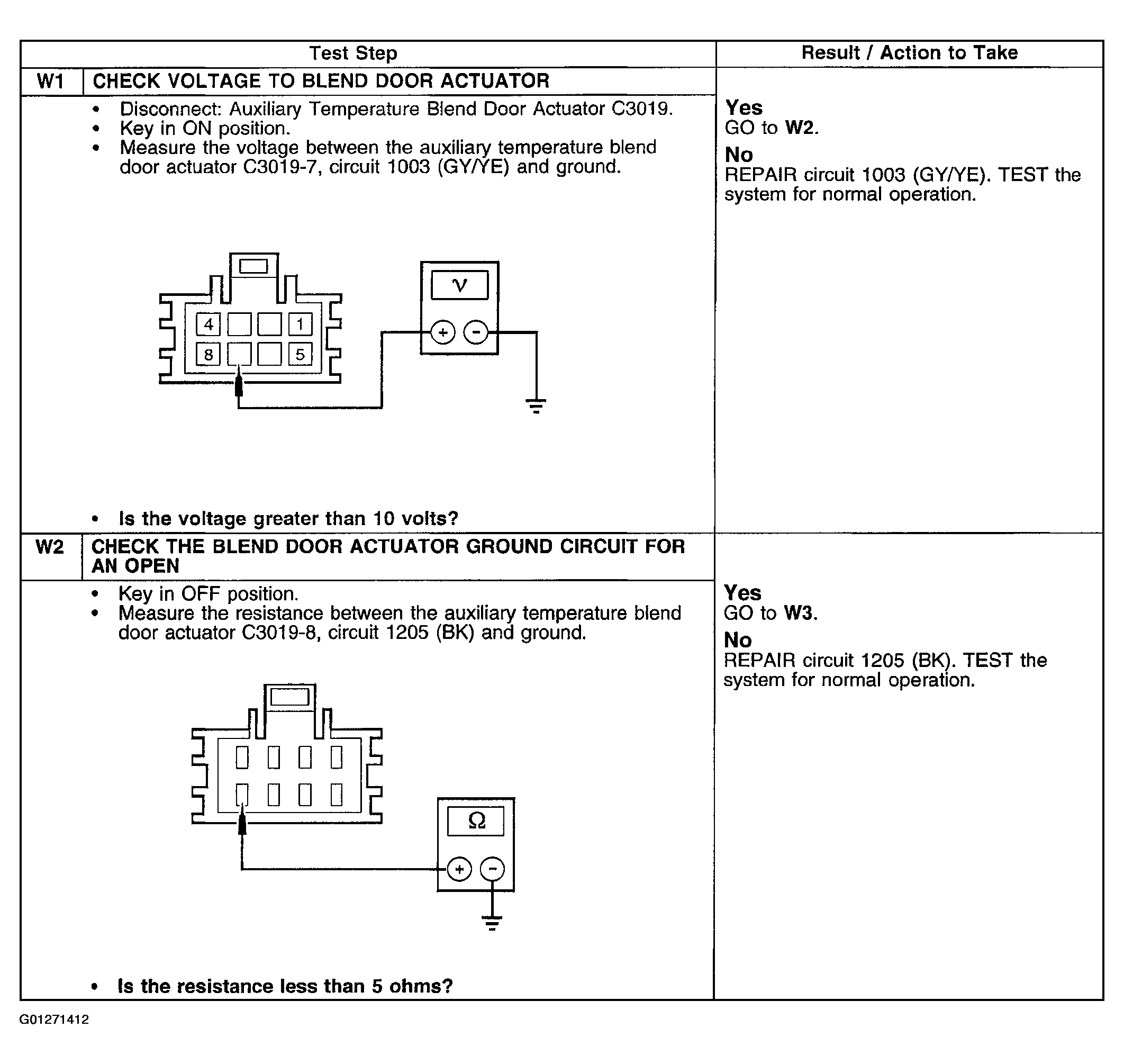

Fig 1: Pinpoint Test W: Temperature Control Is Inoperative Using Front Auxiliary Climate Controls (W1 - W2)
G01271412Courtesy of FORD MOTOR CO.

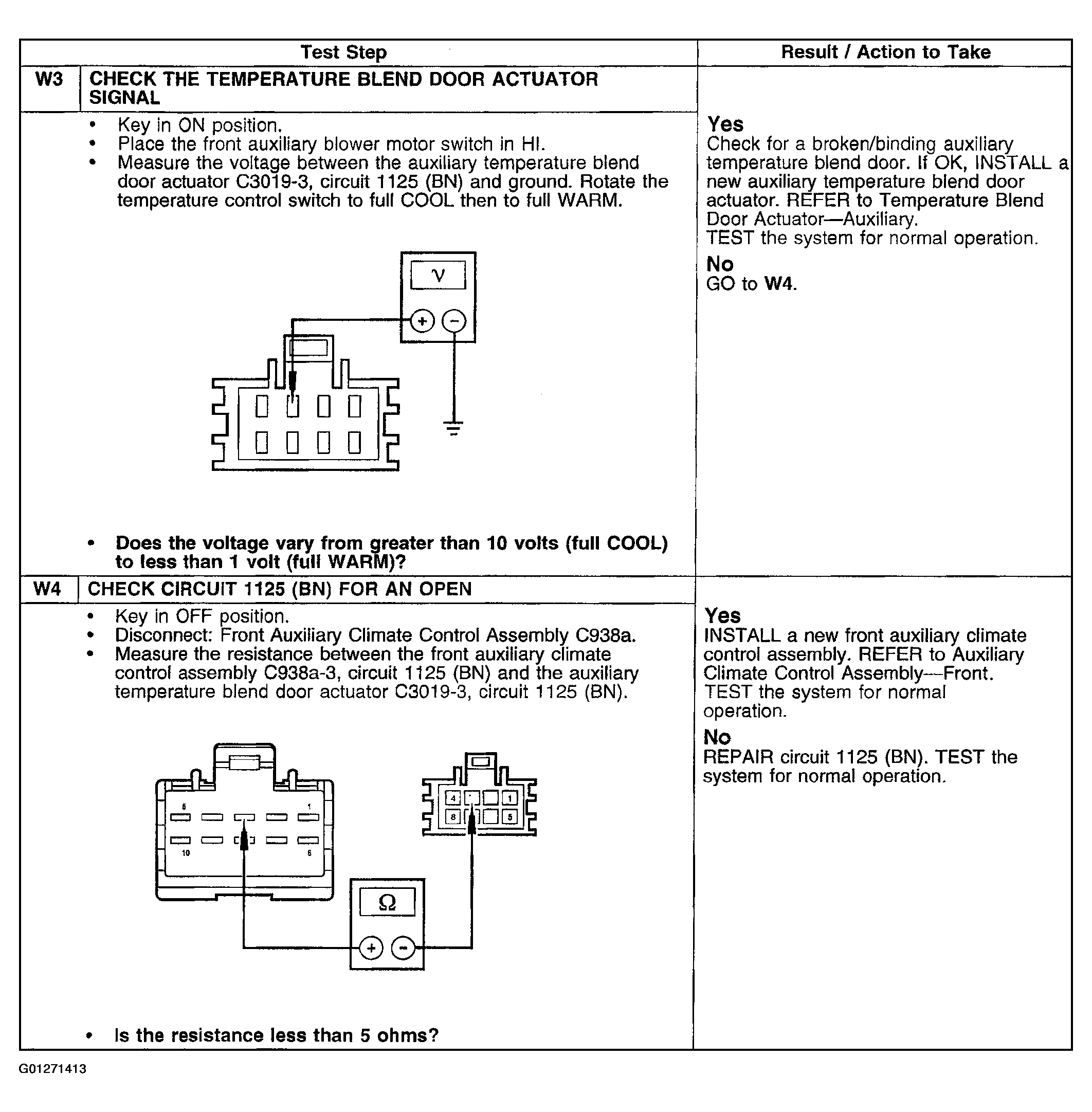

Fig 2: Pinpoint Test W: Temperature Control Is Inoperative Using Front Auxiliary Climate Controls (W3 - W4)
G01271413Courtesy of FORD MOTOR CO.
