Disassembly & Assembly: Notes

NOTE: Inspect the reverse servo piston seal for damage. If damaged, a new piston and seal assembly will need to be installed.
  1. Disassemble the components in the order indicated in the following illustration and table.
  2. To assemble, reverse the disassembly procedure.

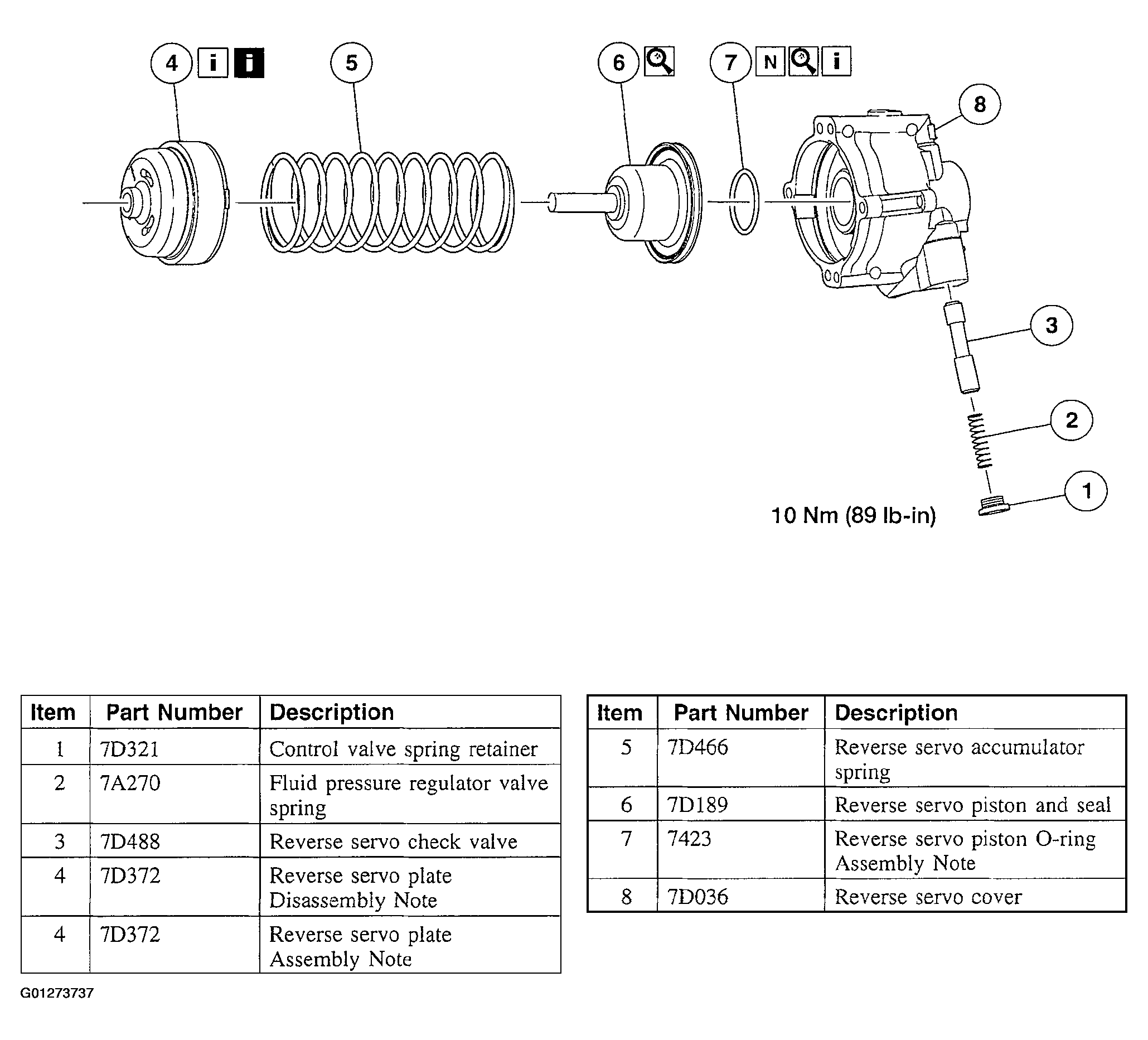

    Fig 1: Assembling Reverse Servo Assembly
    G01273737Courtesy of FORD MOTOR CO.
