Line Pressure Chart

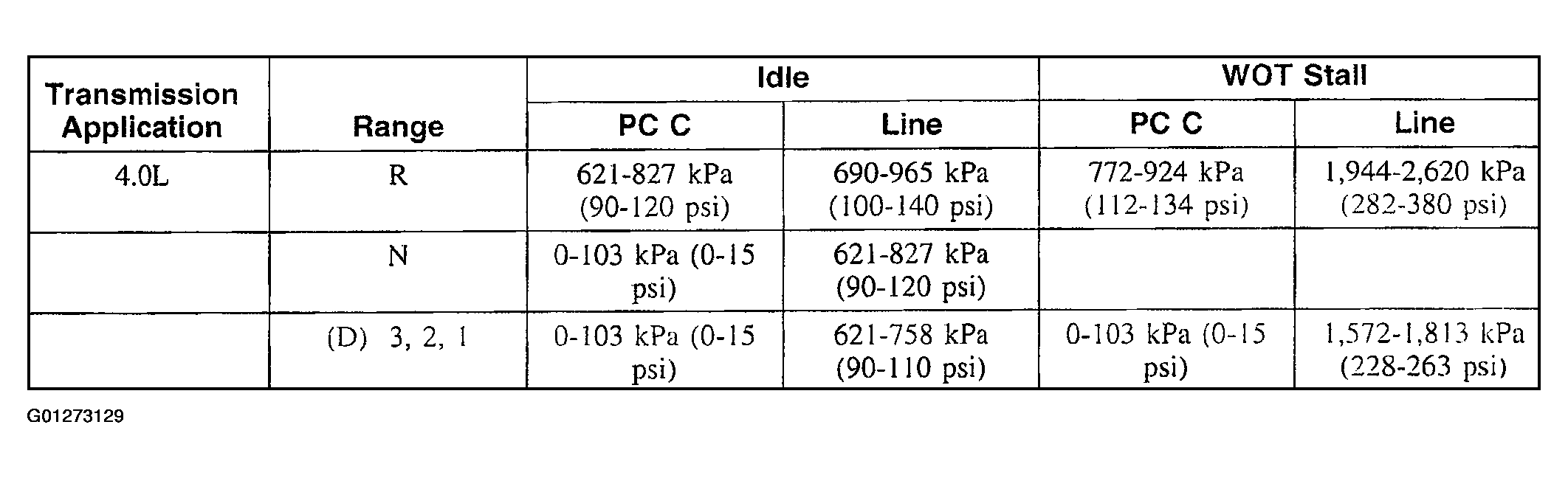

Fig 1: Line Pressure Specification Chart - 4.0L
G01273129Courtesy of FORD MOTOR CO.


Fig 1: Line Pressure Specification Chart - 4.6L
G01273130Courtesy of FORD MOTOR CO.
