Antitheft Mode Switch: Service and Repair

ANTI-THEFT ALARM INHIBIT SWITCH

REMOVAL
1. Remove the driver door trim panel.
2. Position the watershield aside.

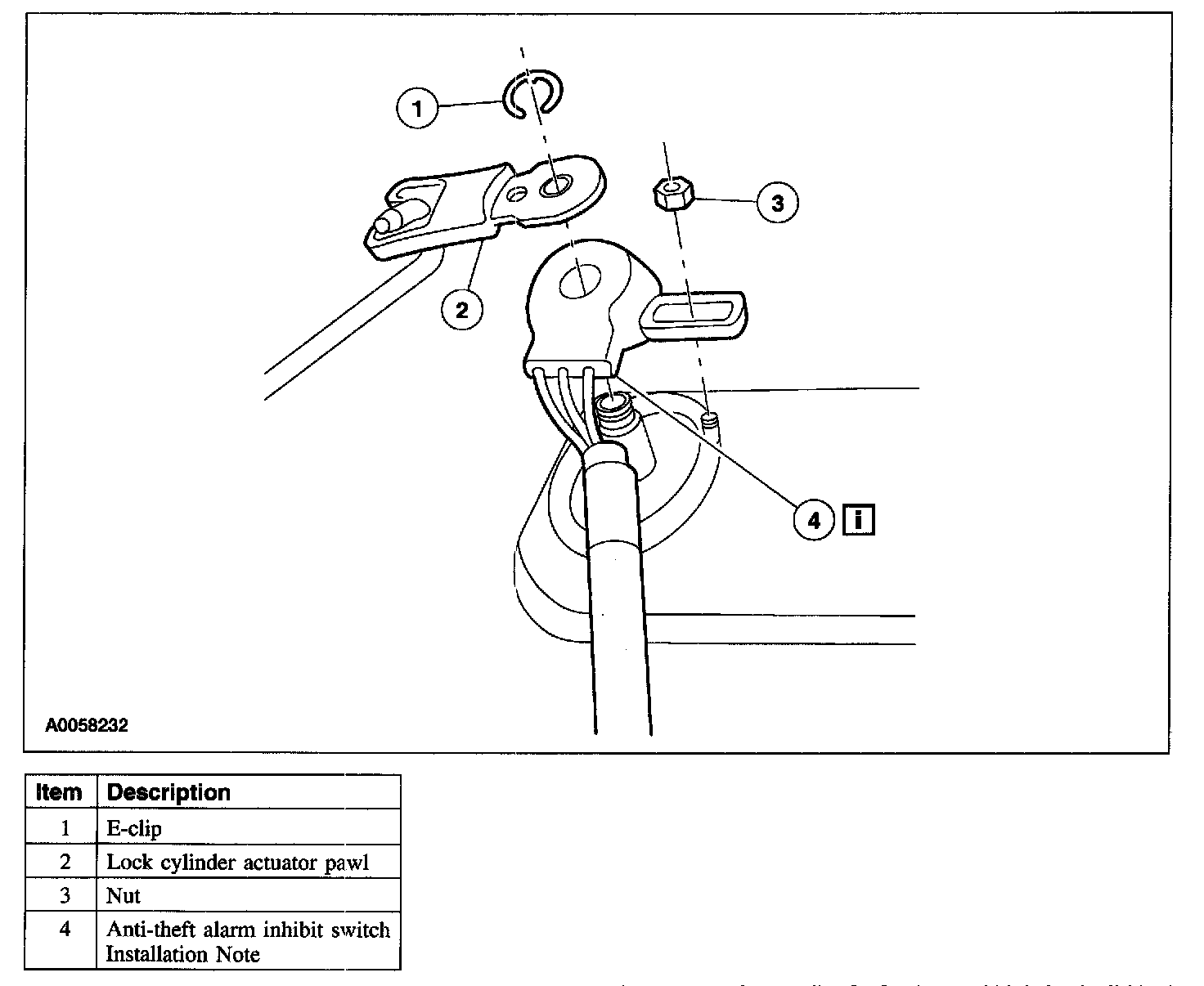

3. Remove the components in the order indicated in the illustration and table.

INSTALLATION
1. To install, reverse the removal procedure.

Item 4: Anti-Theft Alarm Inhibit Switch Installation Note







1. The anti-theft alarm inhibit switch mark must be positioned towards the harness side of the switch prior to installation.
