ABS Control Module Diagnostic Trouble Code (DTC) Index

ABS (With or Without Advance Trac and Stability Assist) Module Diagnostic Trouble Code (DTC) Index

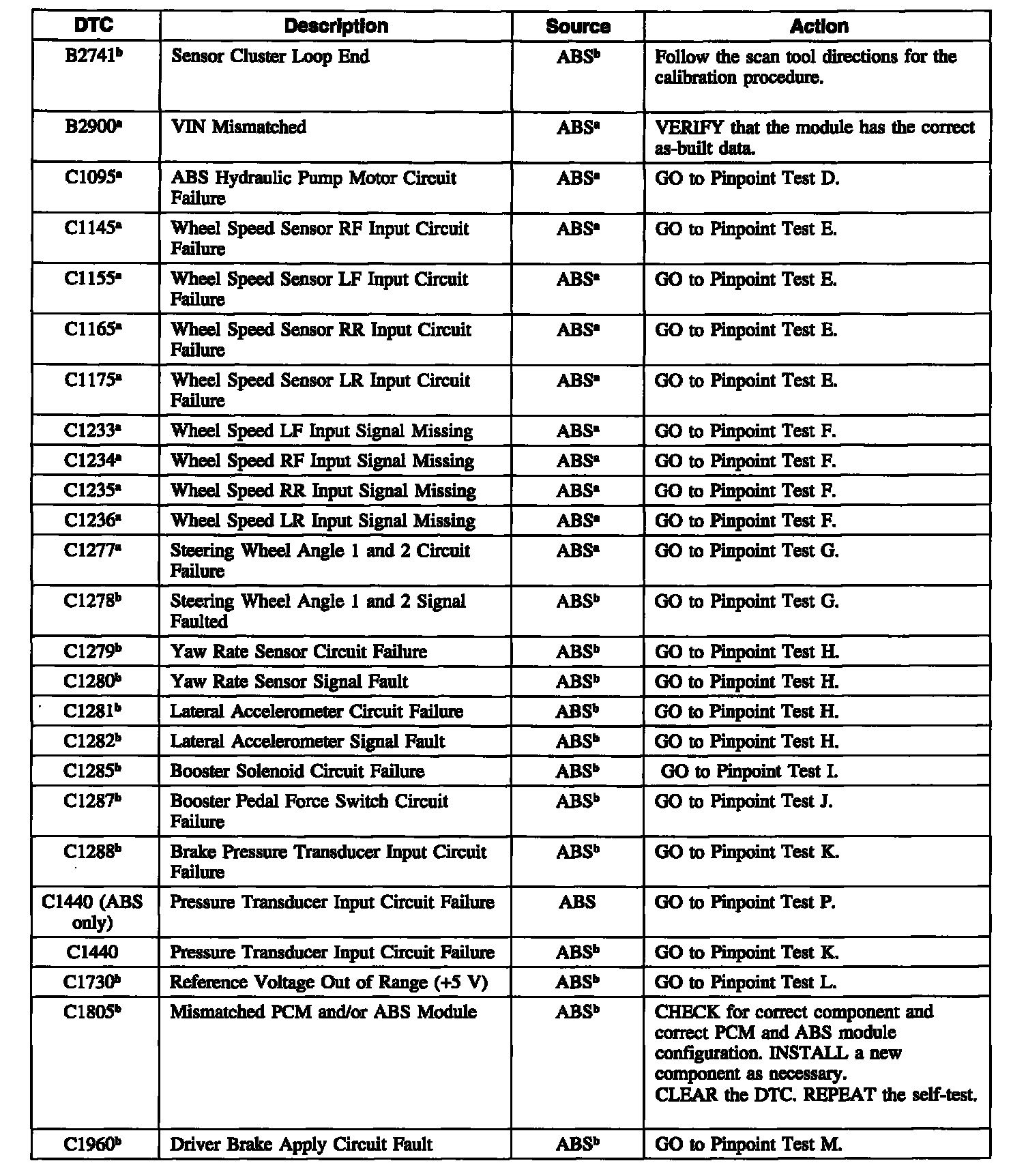

Part 1 Of 3:

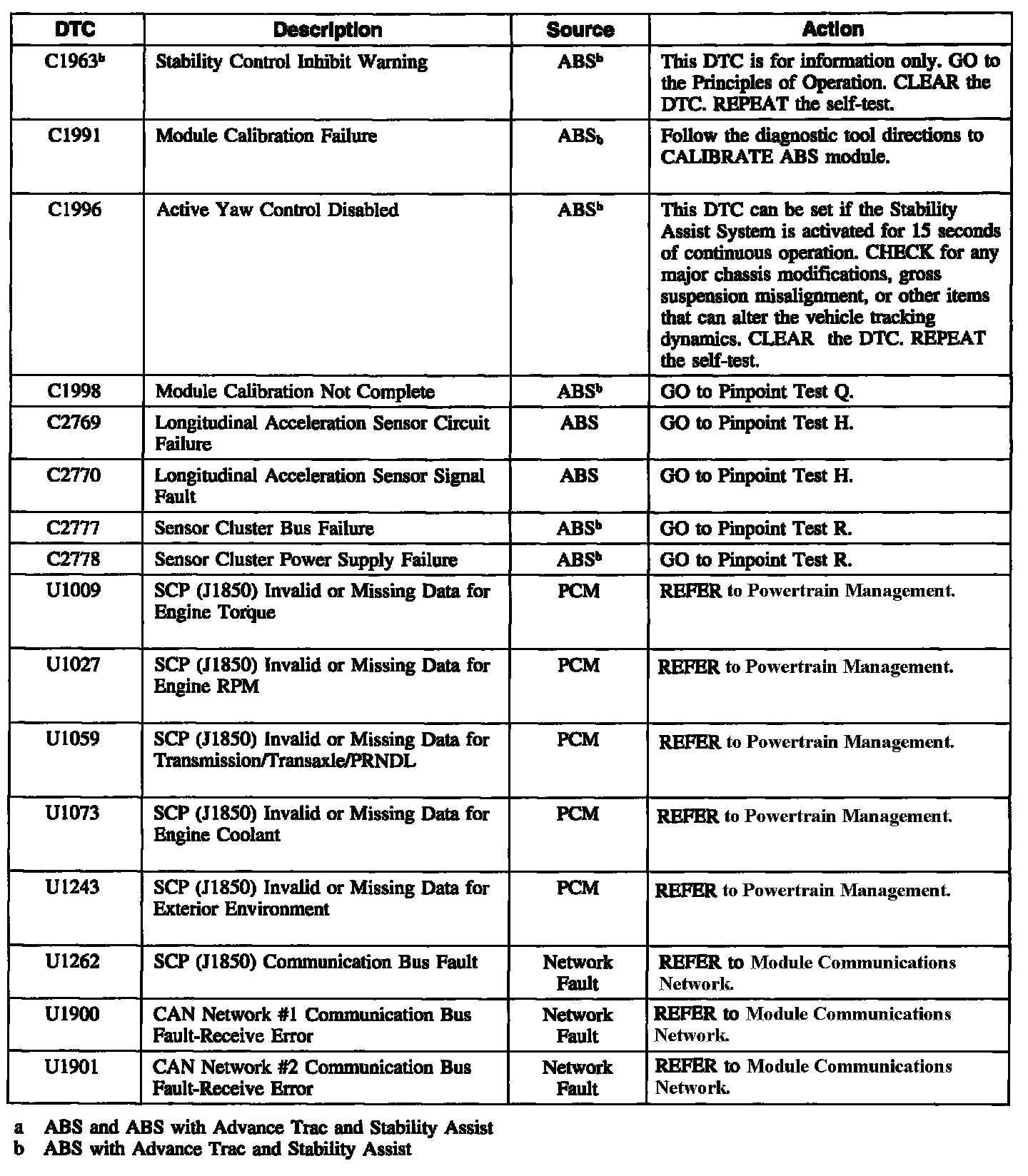

Part 2 Of 3:

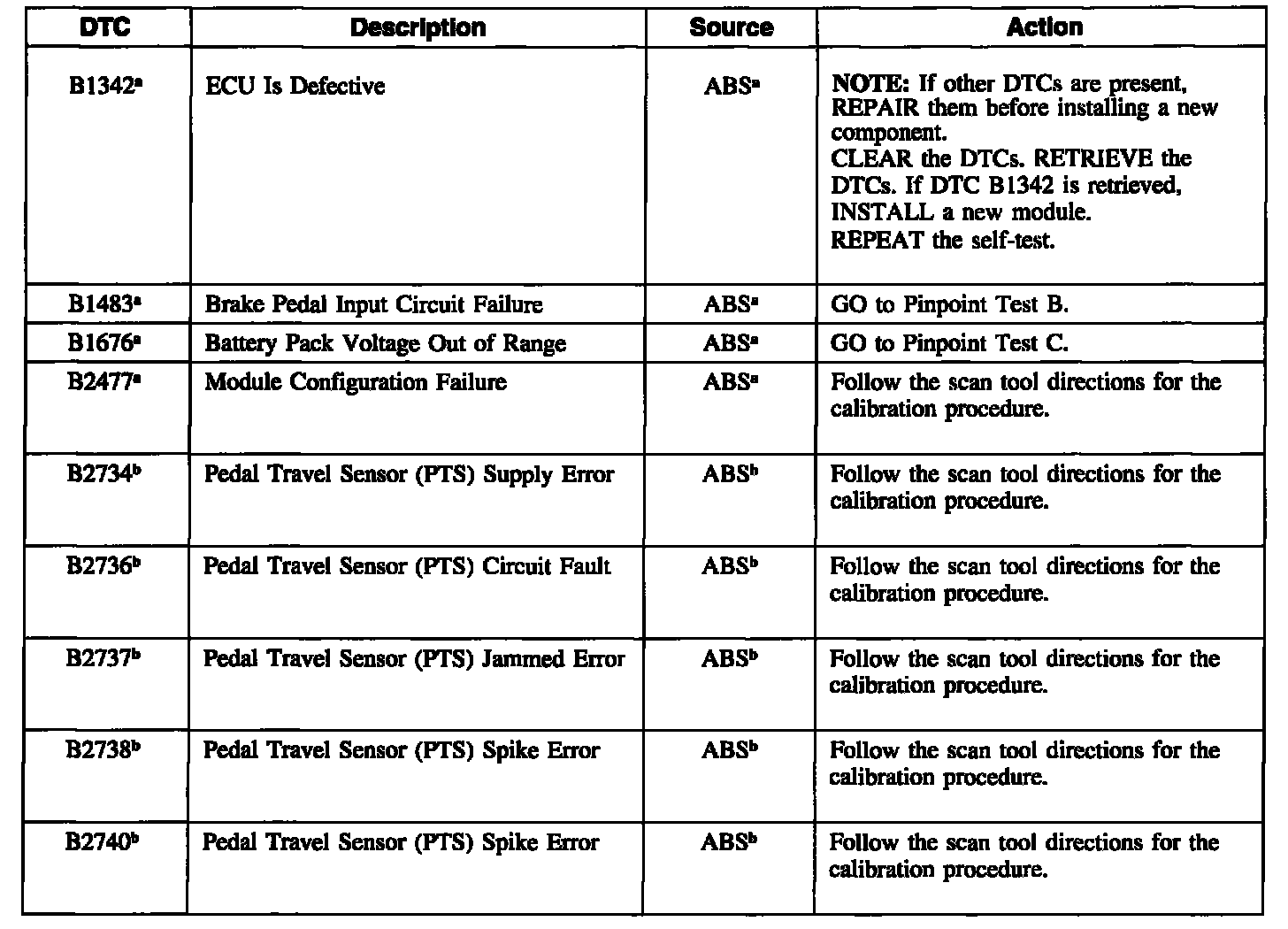

Part 3 Of 3:

NOTE: The need to recalibrate the module is indicated by the active/fail lamp flashing. There are other service actions that can require recalibration when there is no flashing lamp. The lamp will flash after clearing the DTCs that are indicated in the module calibration list.

NOTE: Always retrieve the continuous DTCs after running the self-test.
