Main Climate Control

BLOWER MOTOR - FRONT

REMOVAL AND INSTALLATION

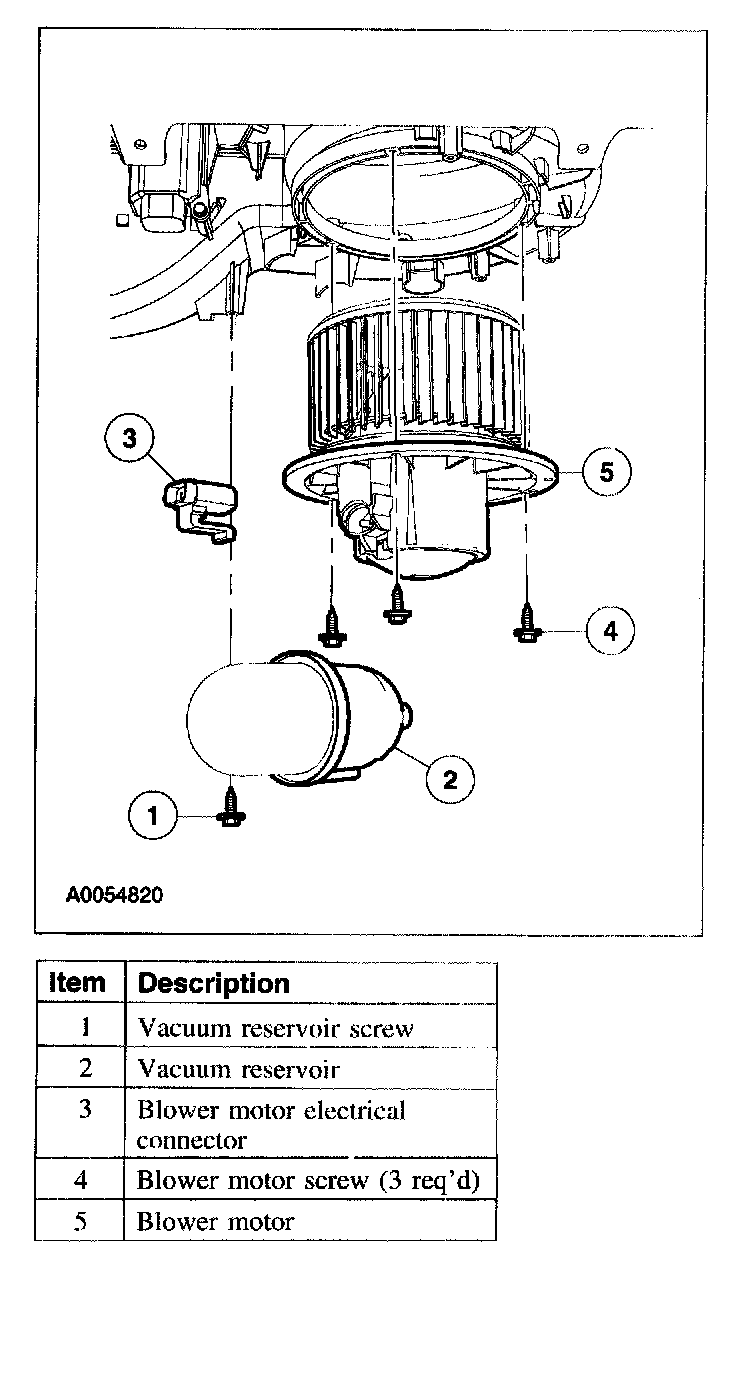

1. Remove the components in the order indicated in the illustration and table.
