COMPRESSOR MANIFOLD AND TUBE ASSEMBLY

REMOVAL

NOTE:
- Installation of a new accumulator is not required when repairing the air conditioning system except when there is physical evidence of contamination from a failed A/C compressor or damage to the accumulator.
- New O-ring seals, lubricated in clean PAG oil, must be installed before reconnecting any A/C fitting which has been disconnected.

1. Recover the refrigerant.
2. Remove the upper radiator sight shield.

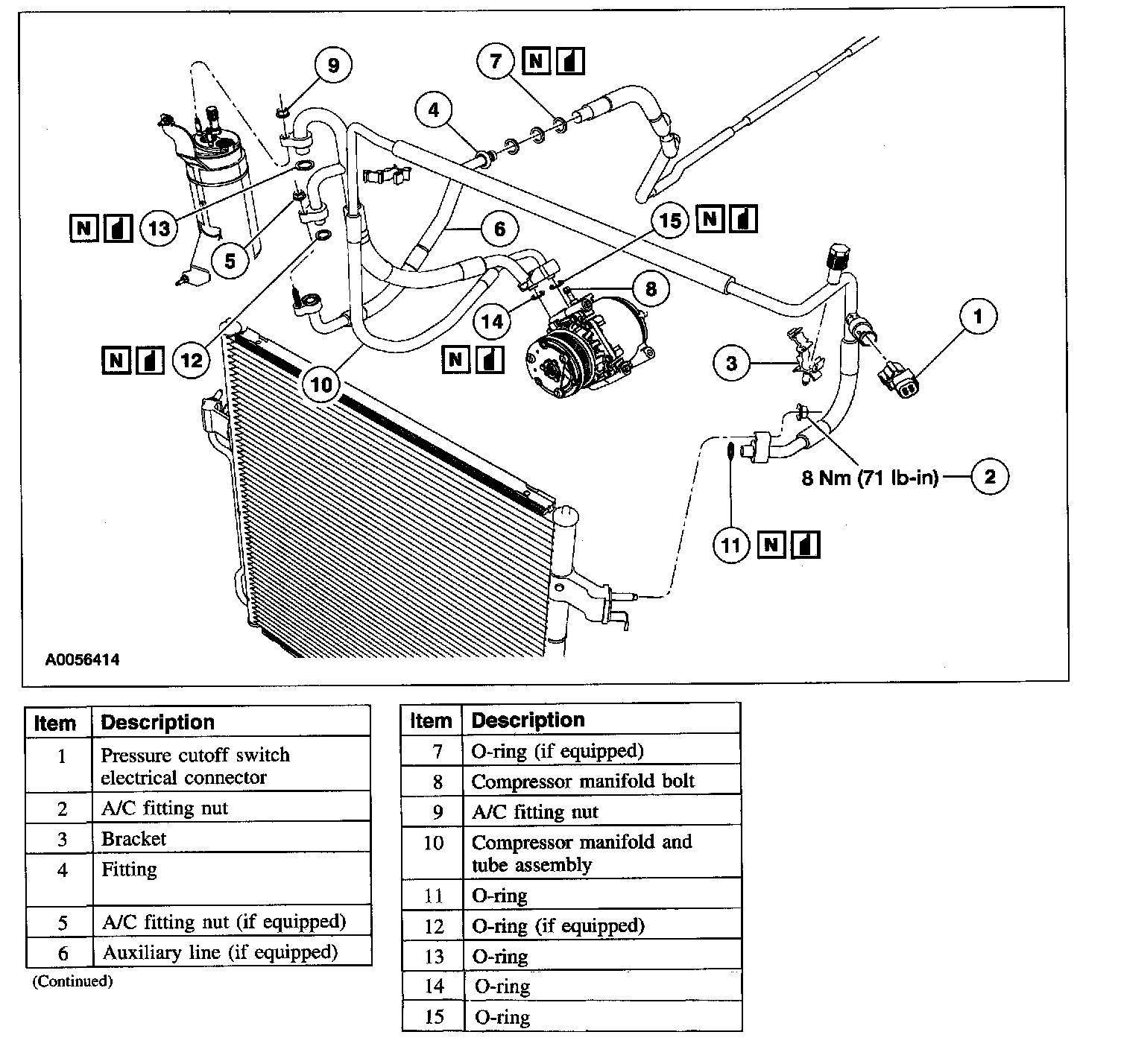

3. Remove the components in the order indicated in the illustration and table.

INSTALLATION
1. To install, reverse the removal procedure.
2. Lubricate the refrigerant system with the correct amount of clean PAG oil.
3. Evacuate, leak test and charge the refrigerant system.
