Diagnostic Trouble Code Tests and Associated Procedures

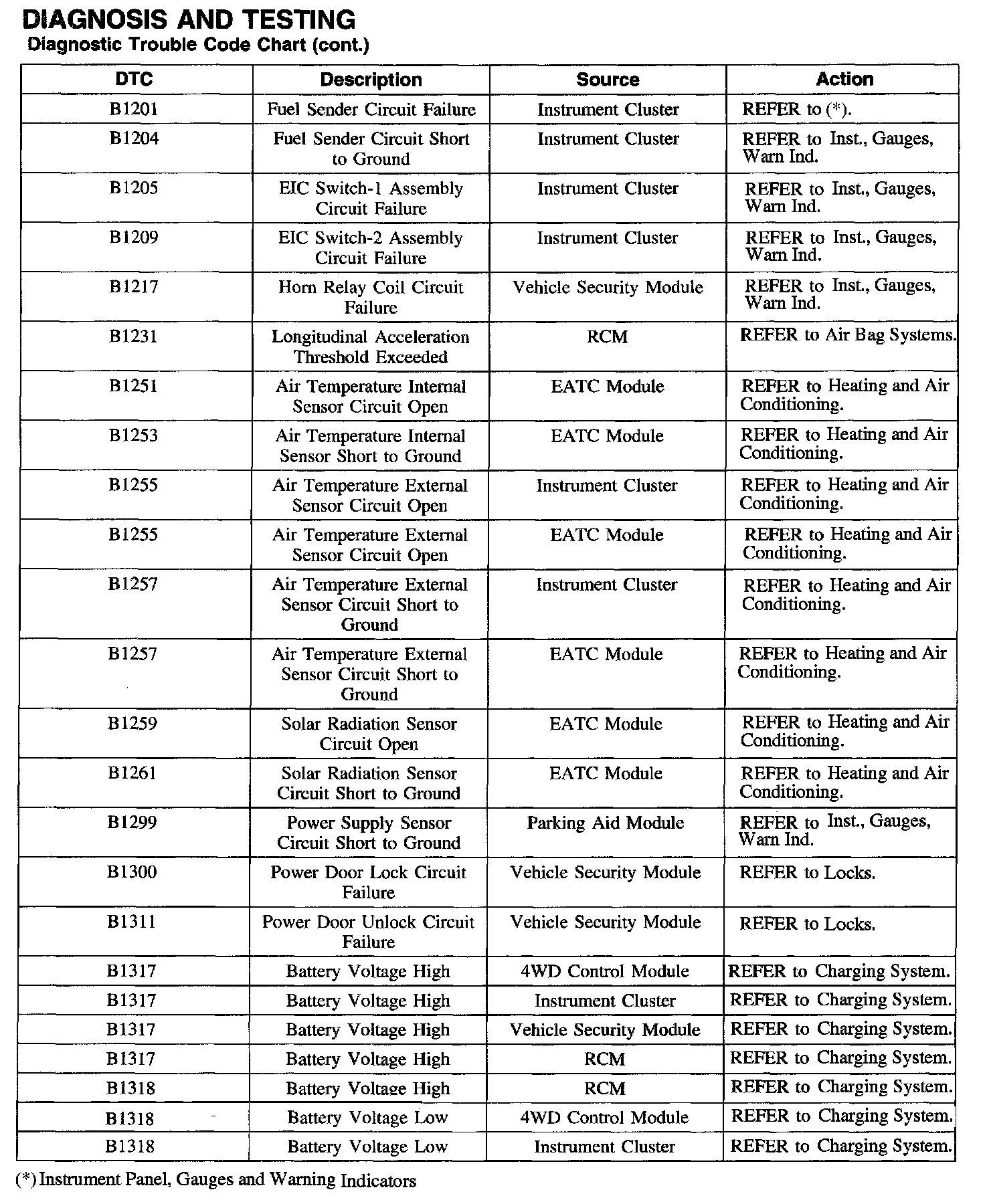

DTC Chart B1201 - B1318:

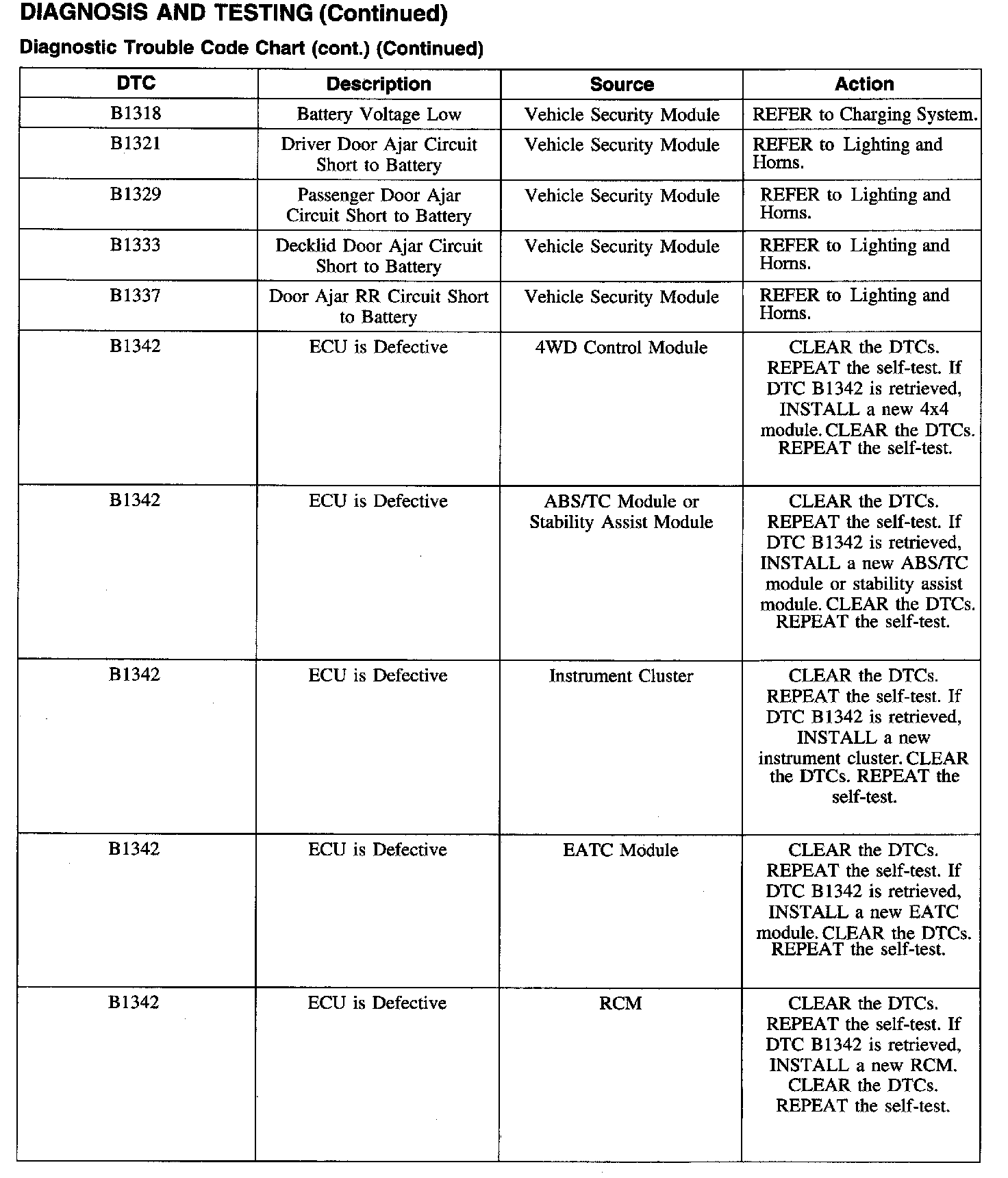

DTC Chart B1318 - B1342:

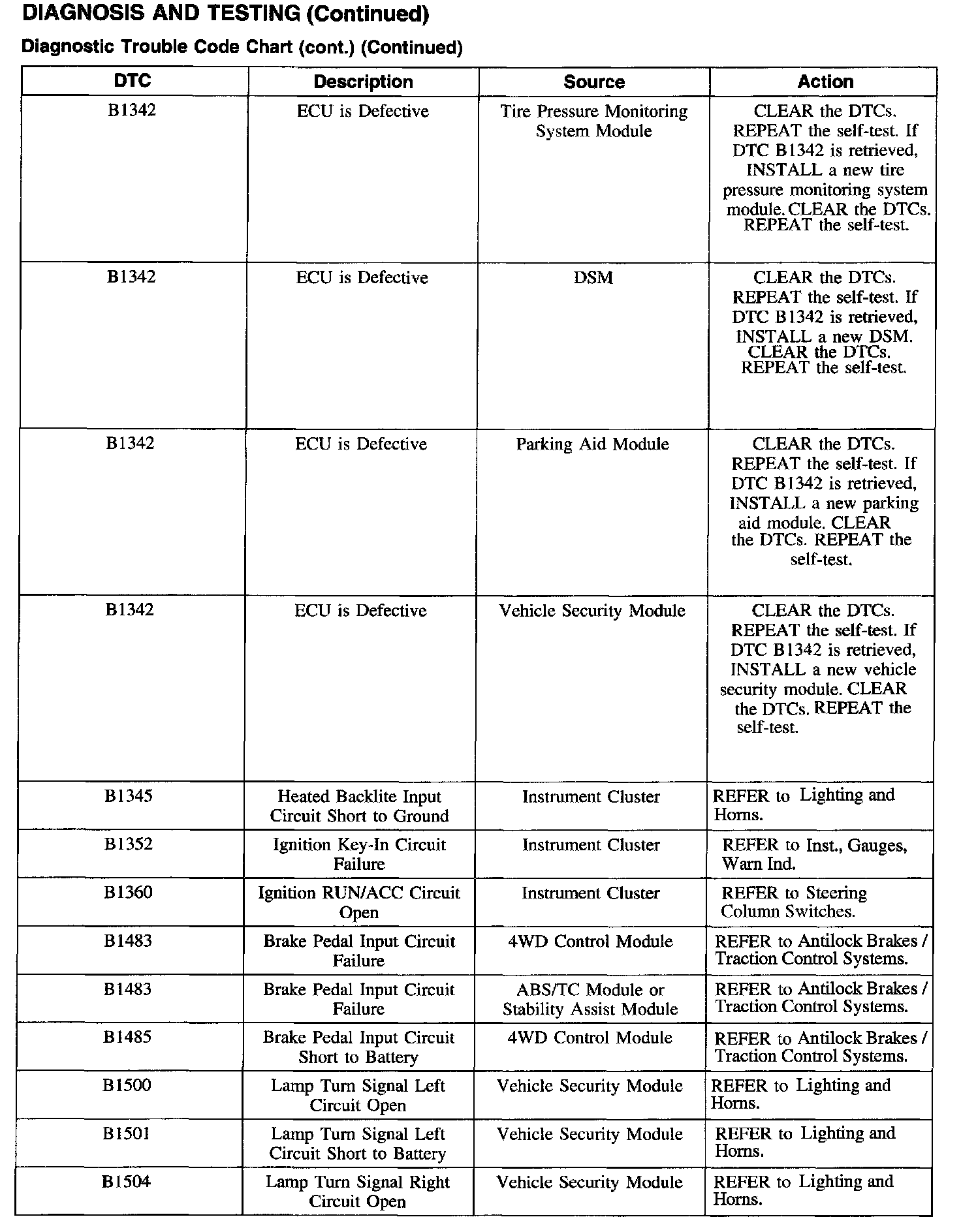

DTC Chart B1342 - B1504:

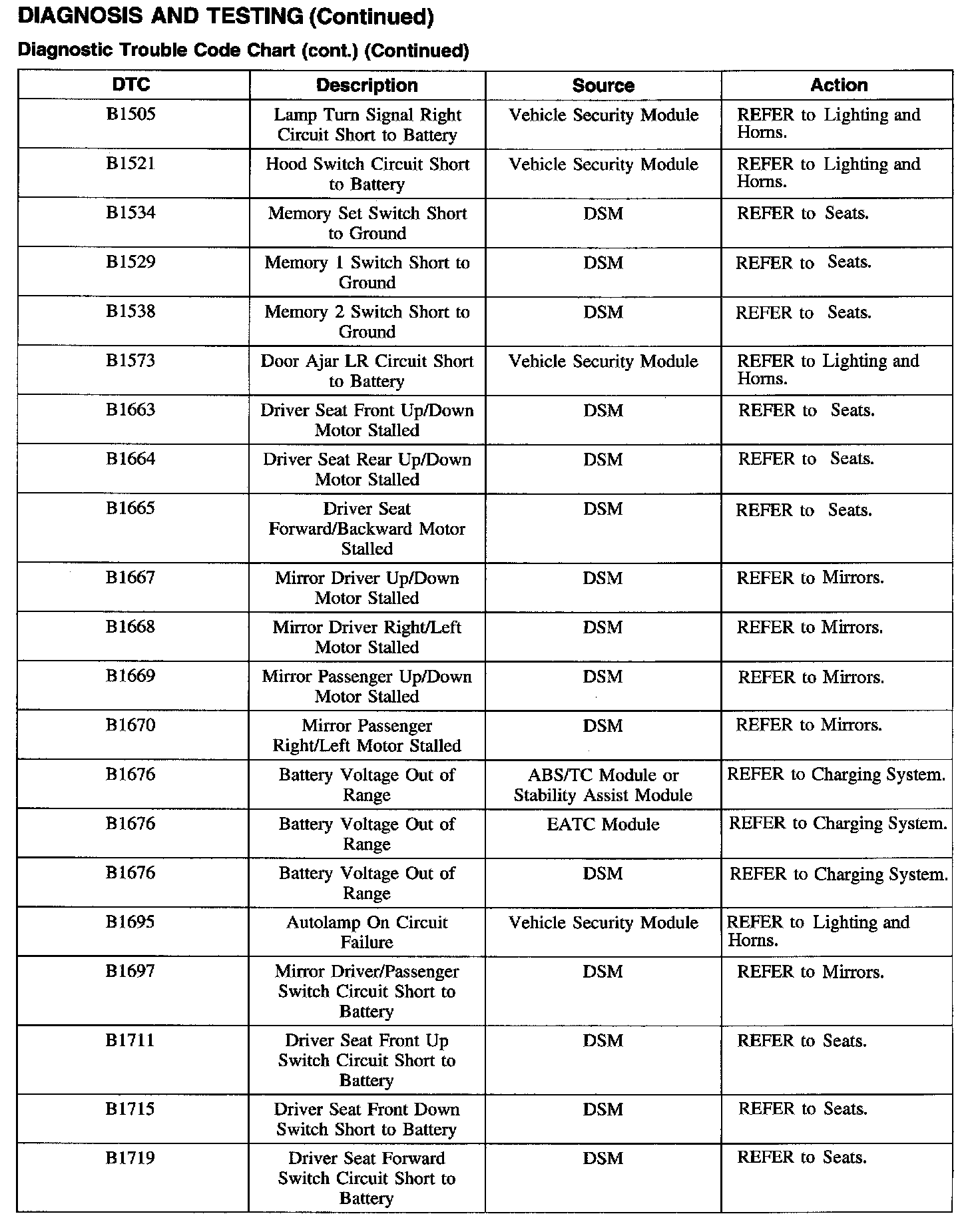

DTC Chart B1505 - B1719:

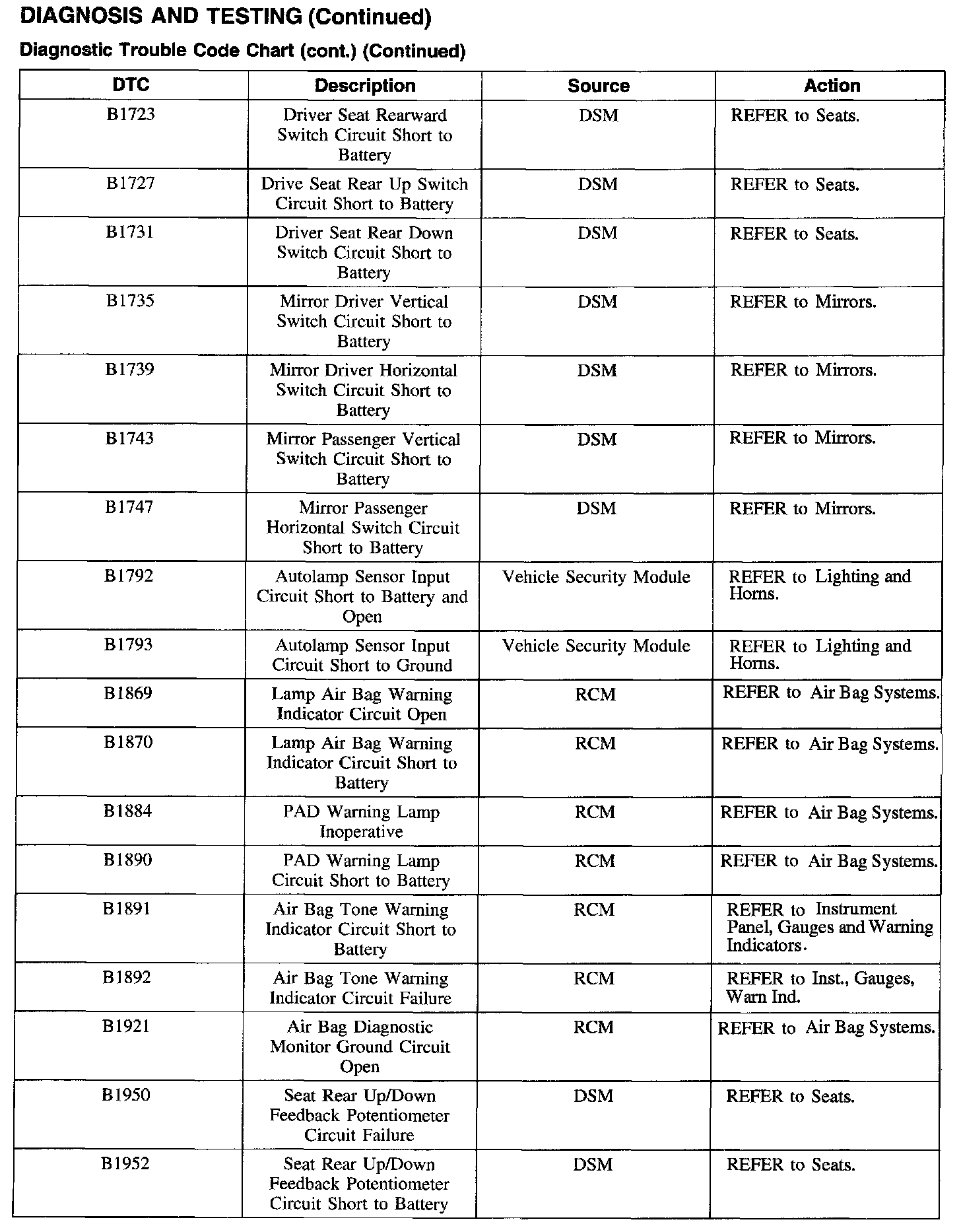

DTC Chart B1723 - B1952:

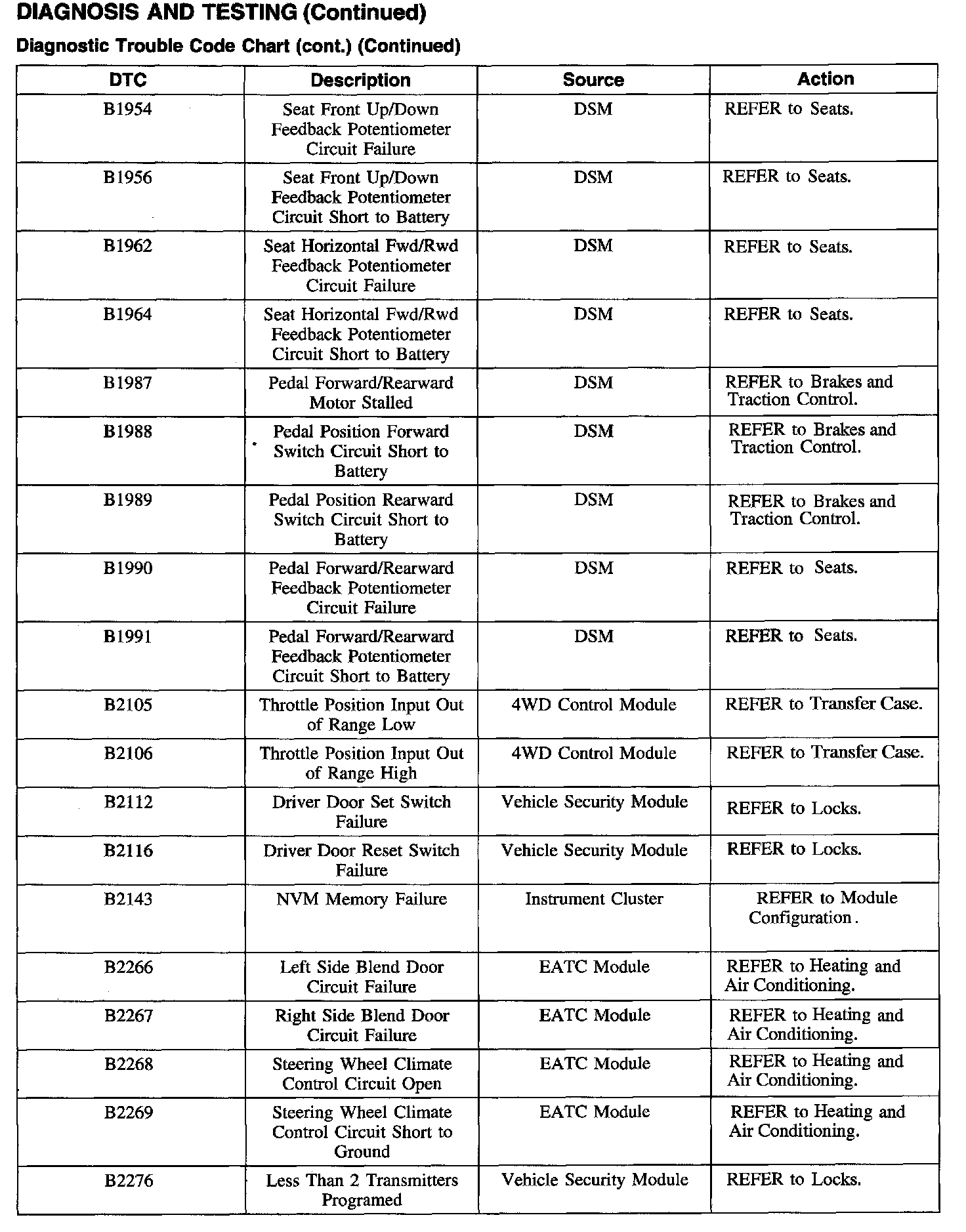

DTC Chart B1954 - B2276:

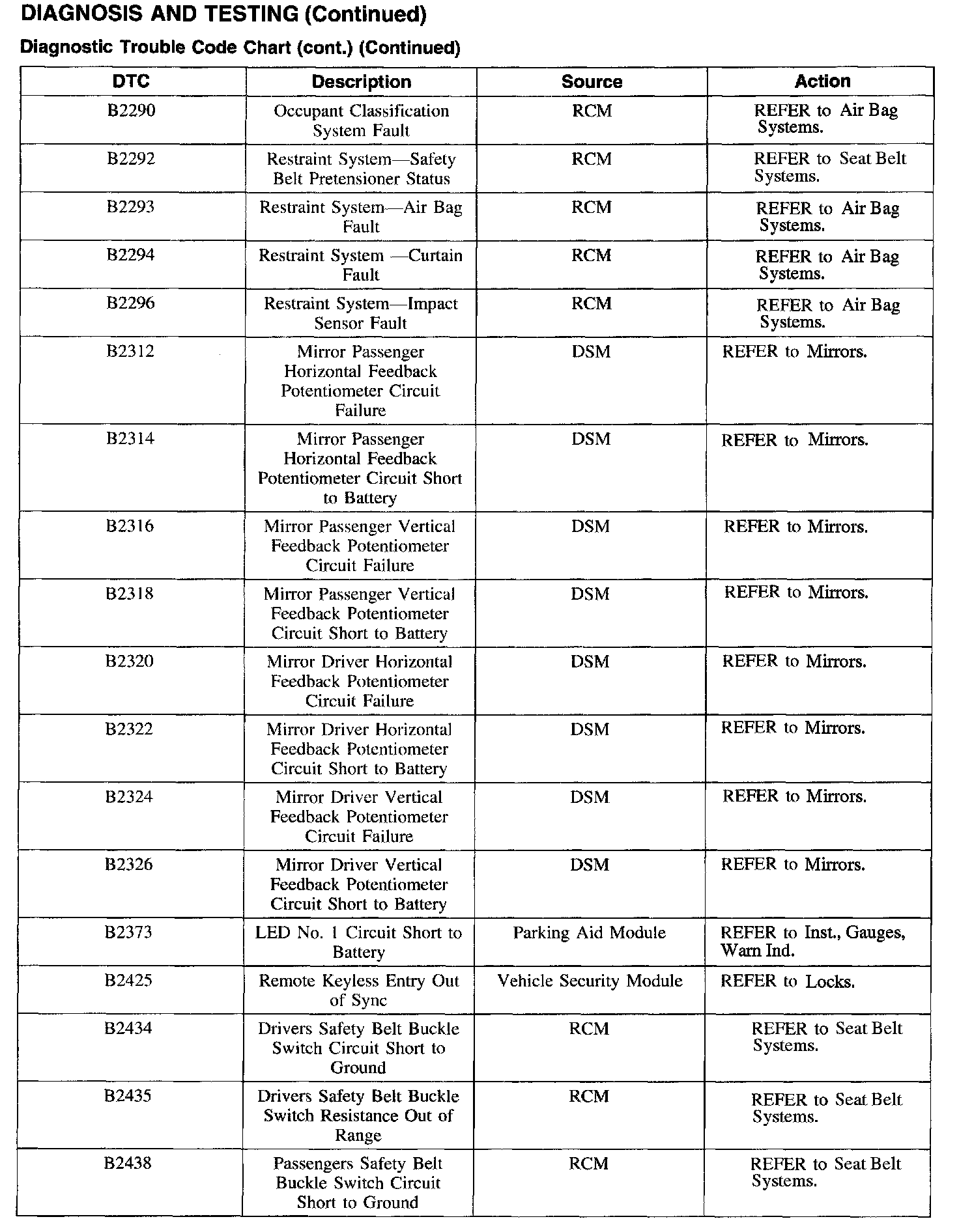

DTC Chart B2290 - B2438:

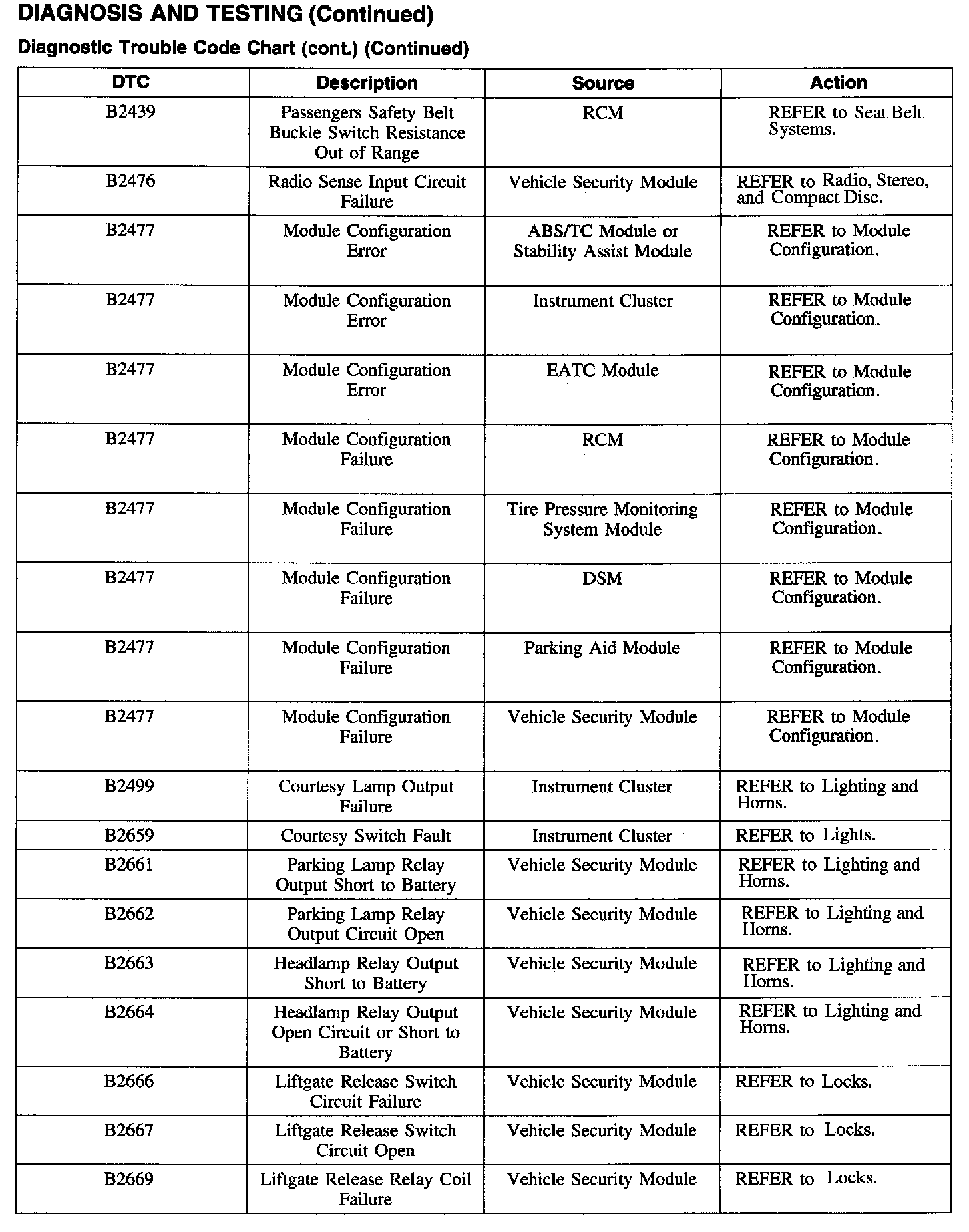

DTC Chart B2439 - B2669:

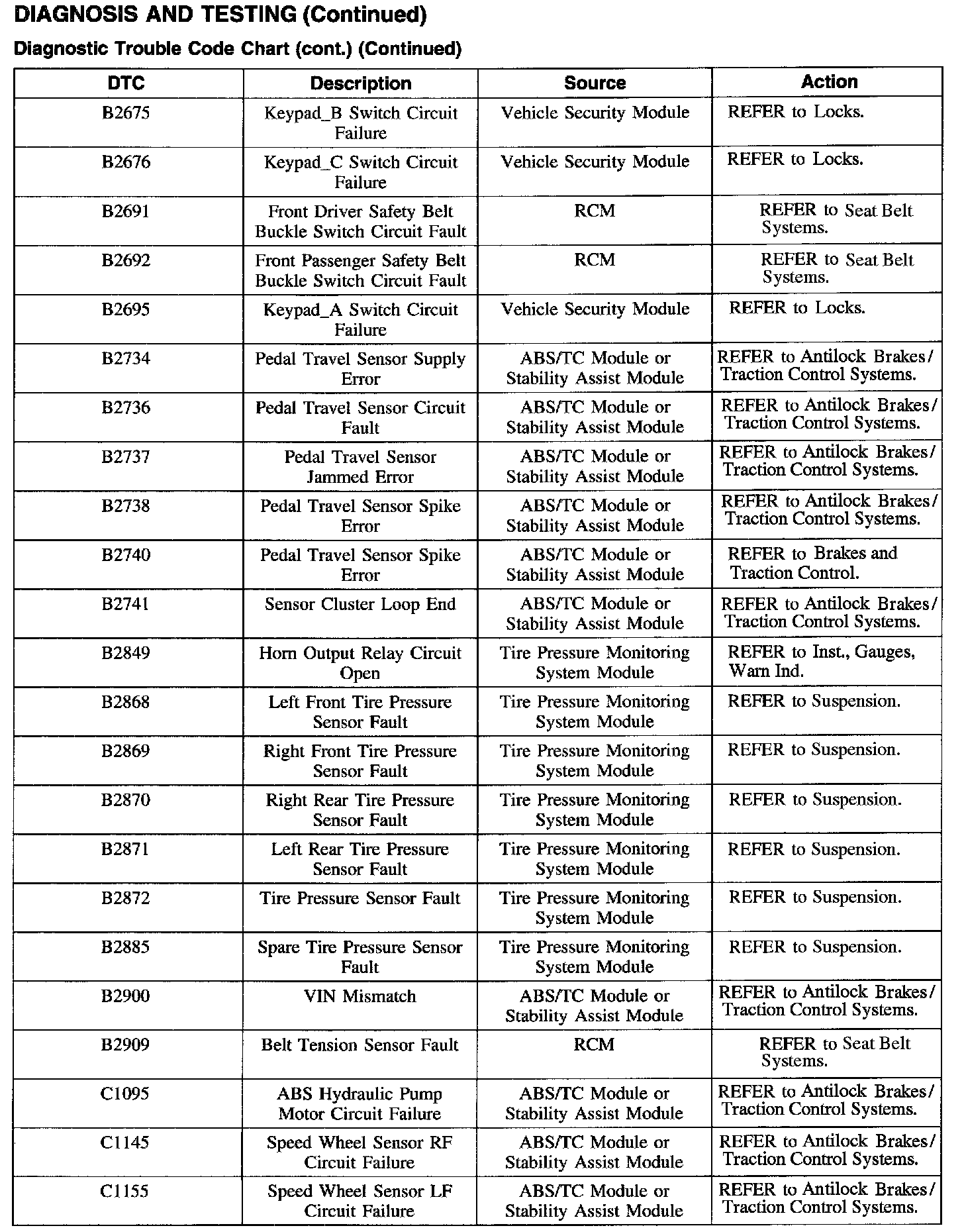

DTC Chart B2675 - C1155:

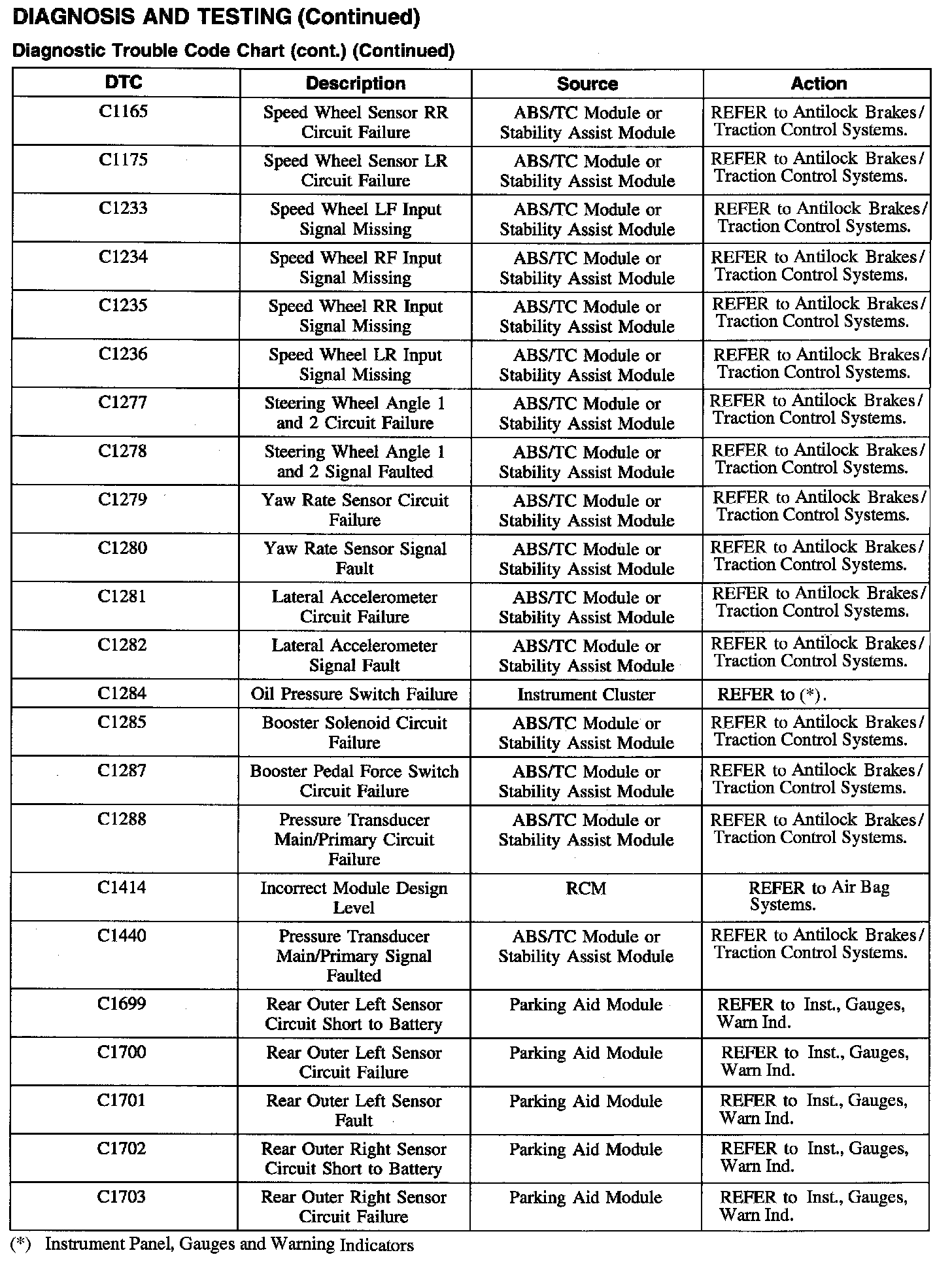

DTC Chart C1165 - C1703:

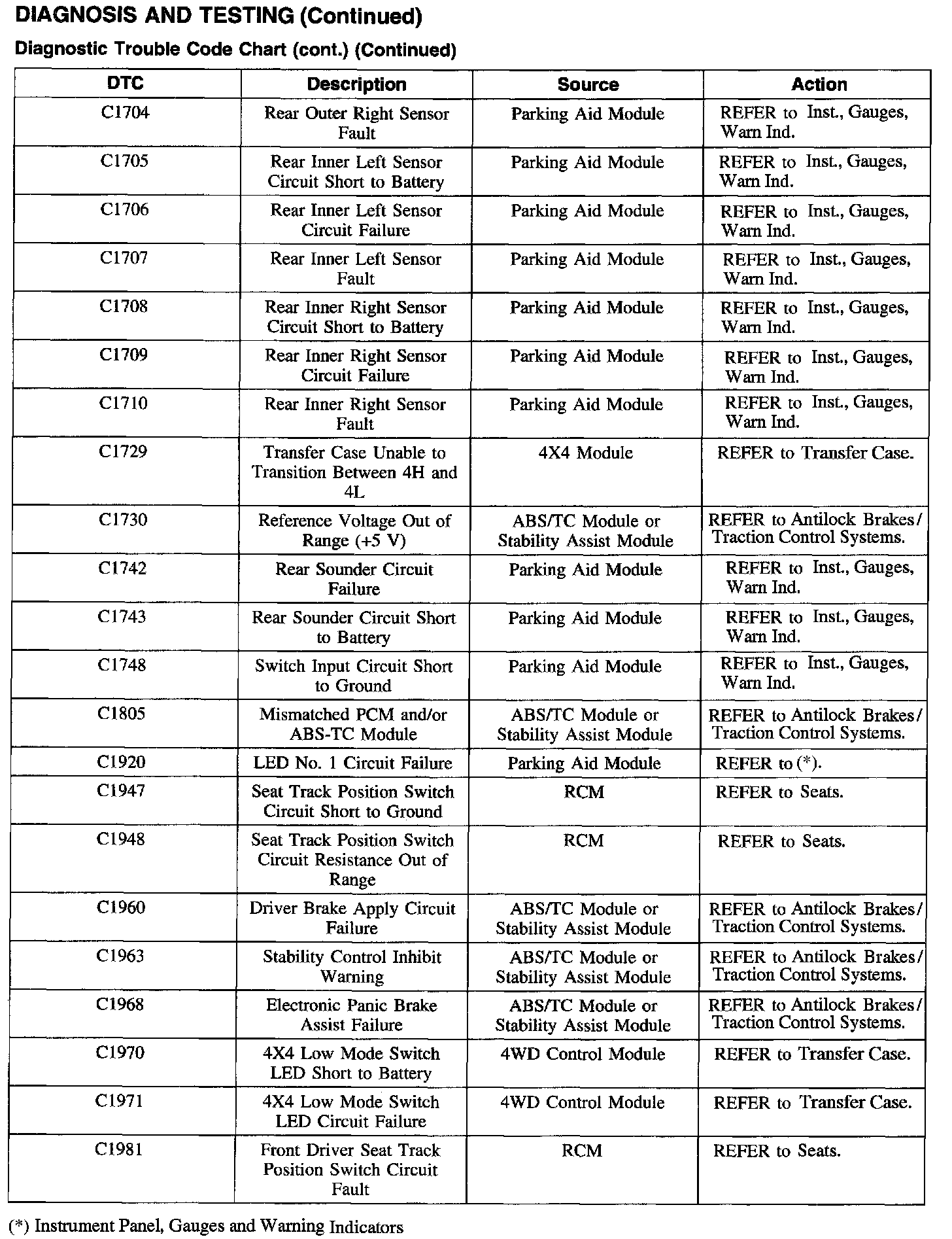

DTC Chart C1704 - C1981:

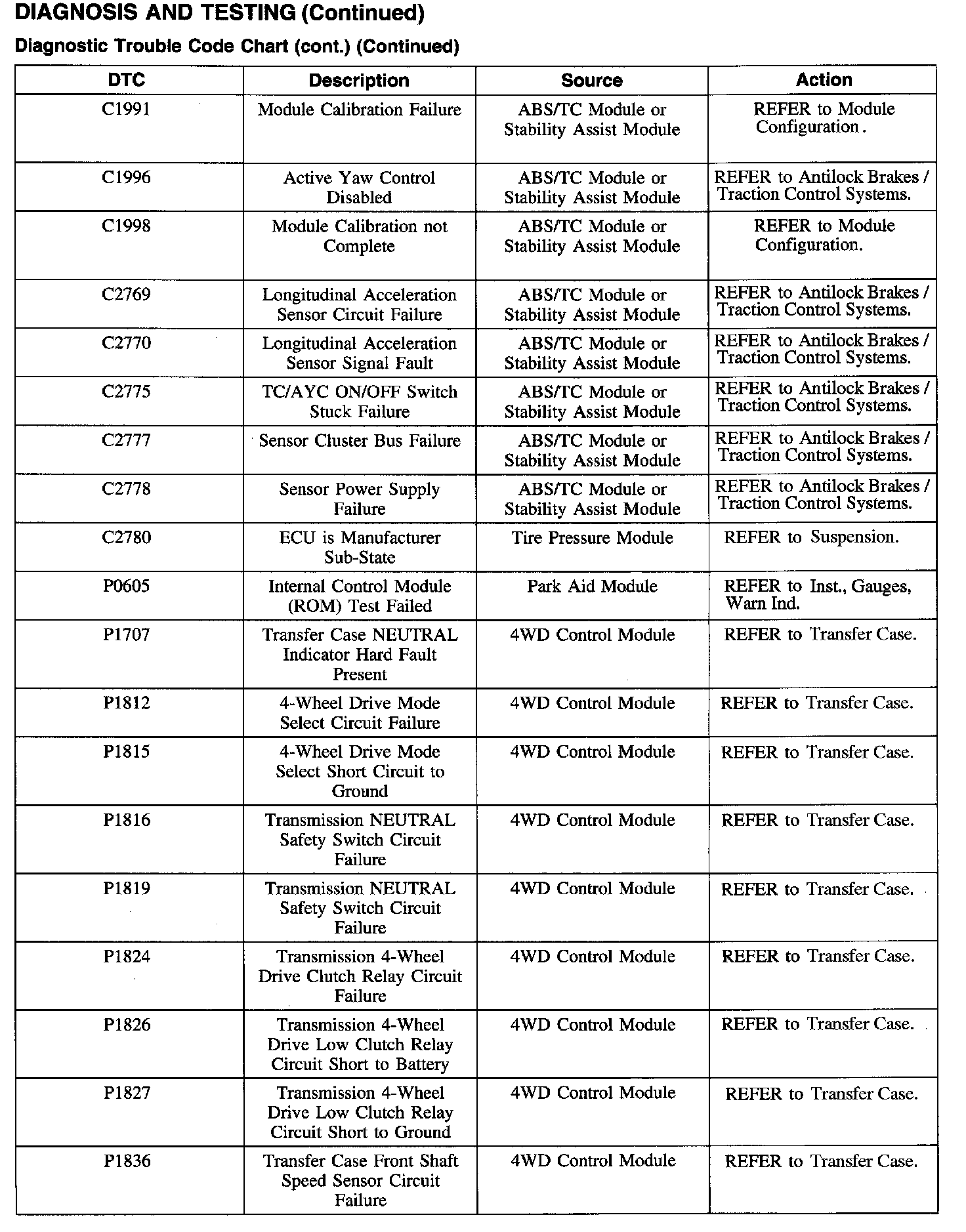

DTC Chart C1991 - P1836:

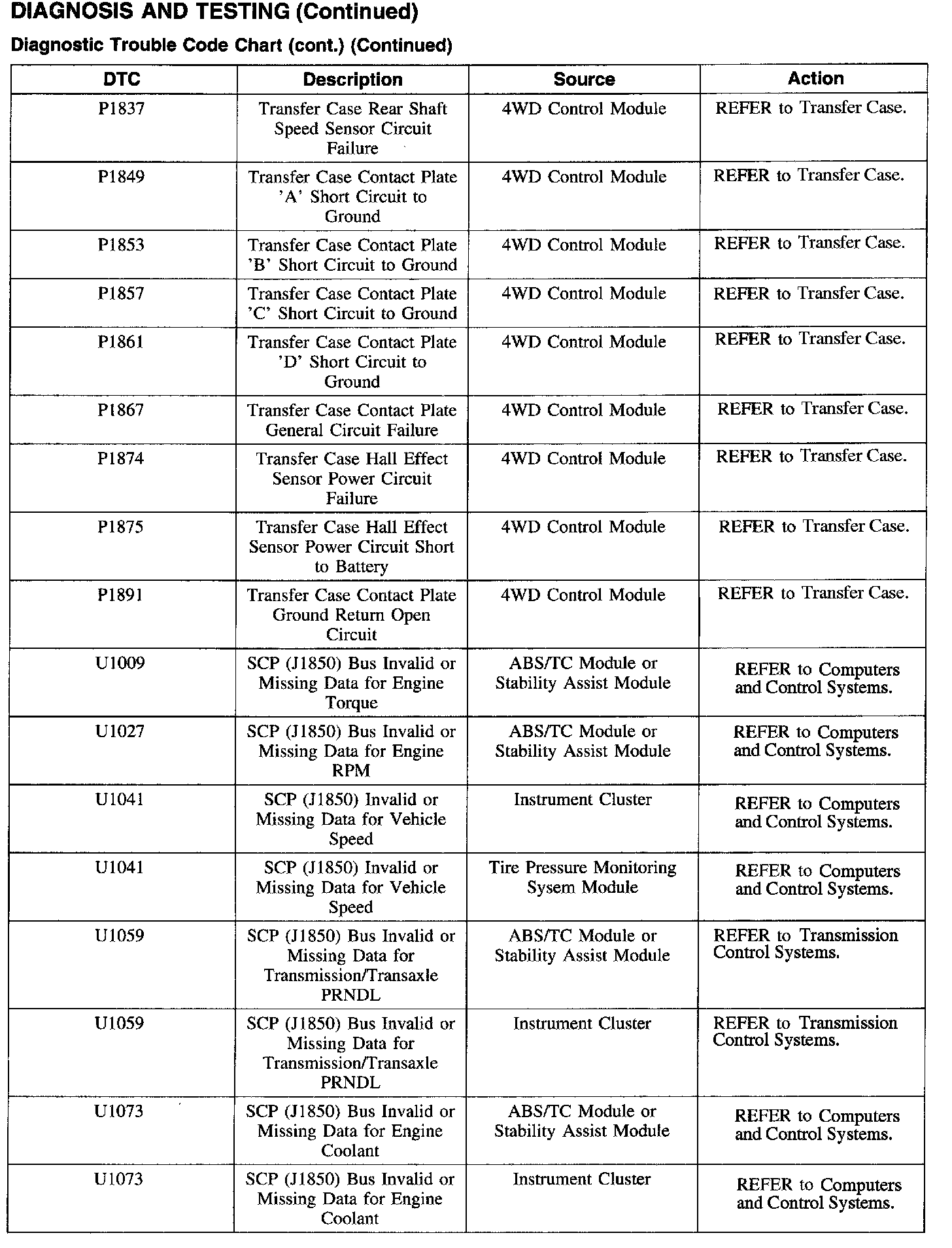

DTC Chart P1837 - U1073:

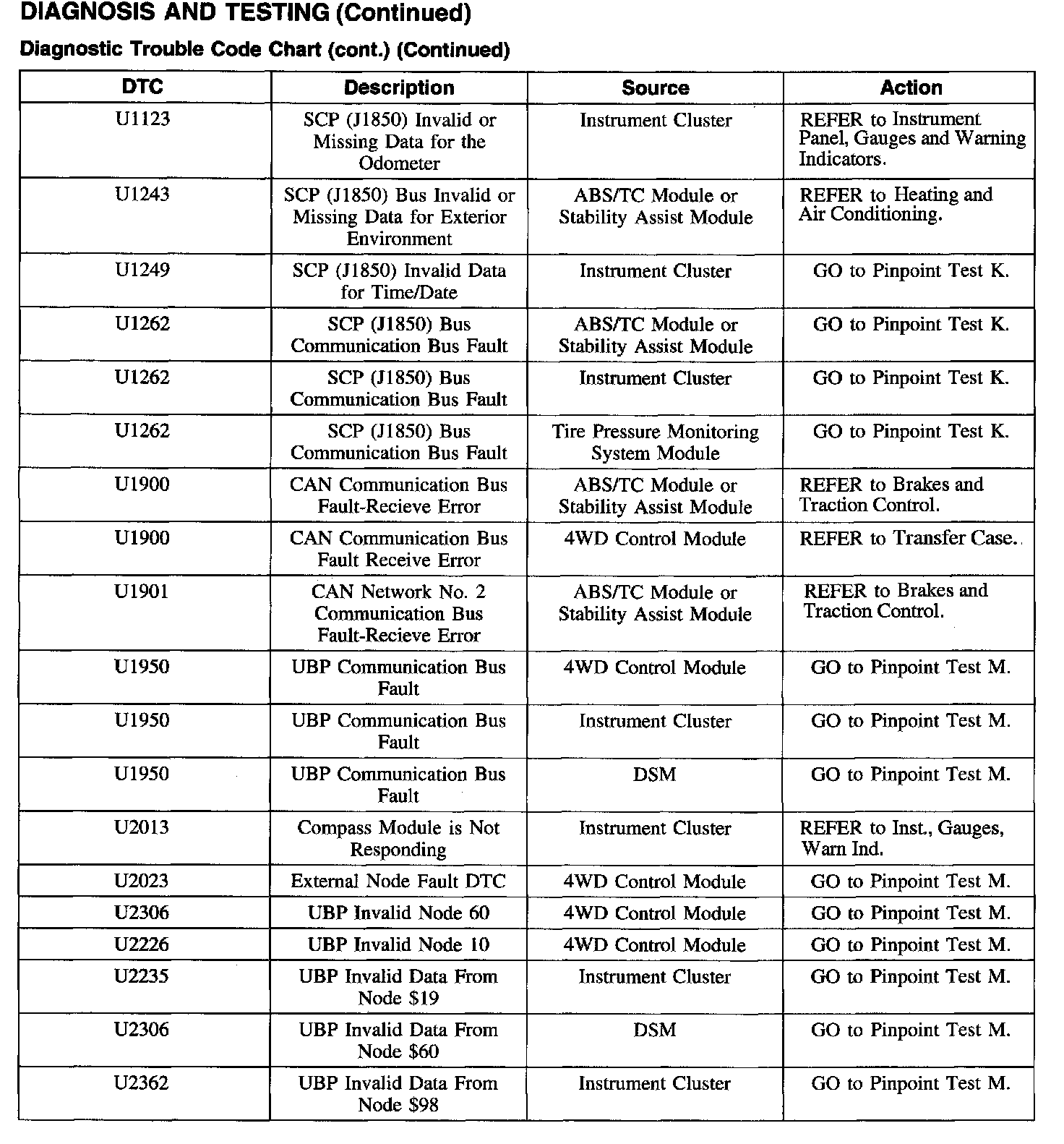

DTC Chart U1123 - U2362:
