Torque

Torque Specifications

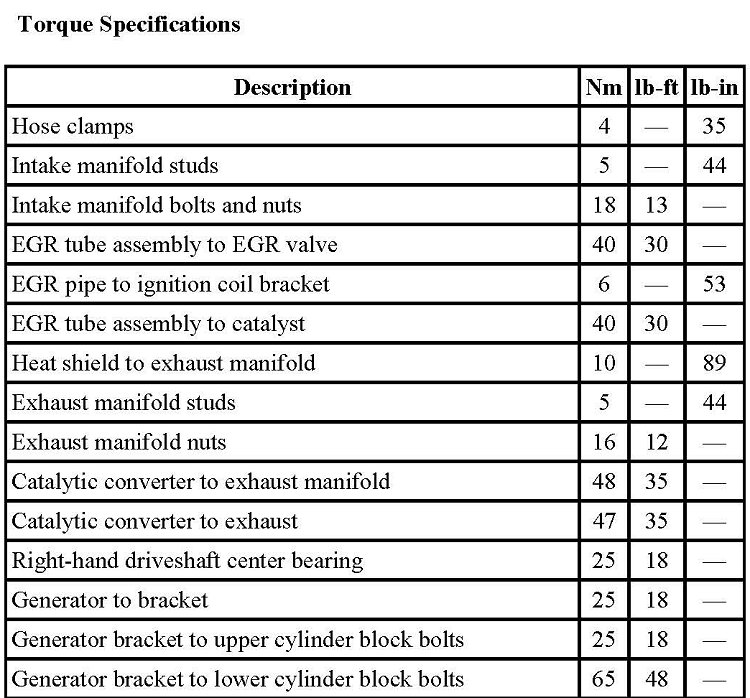

Torque Specifications (1 Of 4):

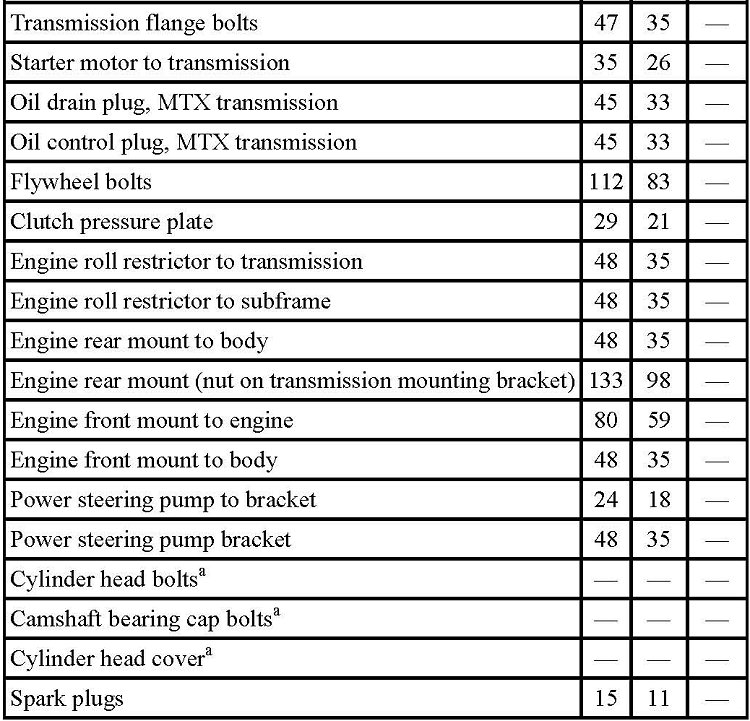

Torque Specifications (2 Of 4):

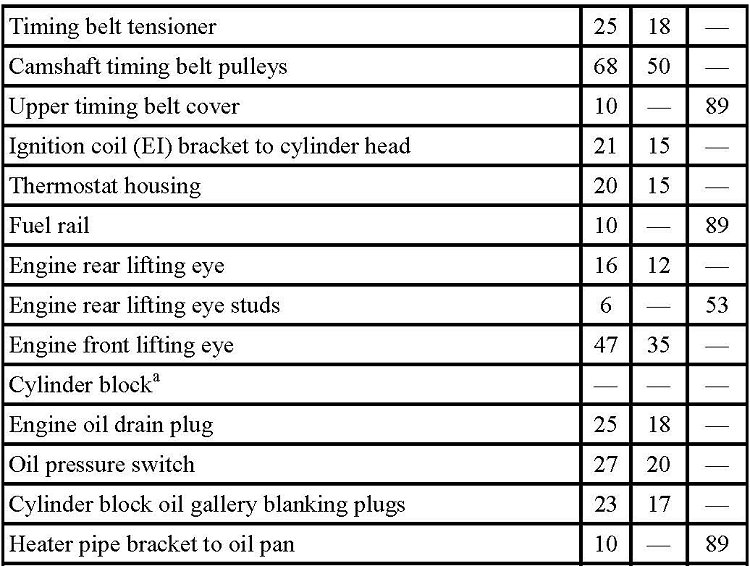

Torque Specifications (3 Of 4):

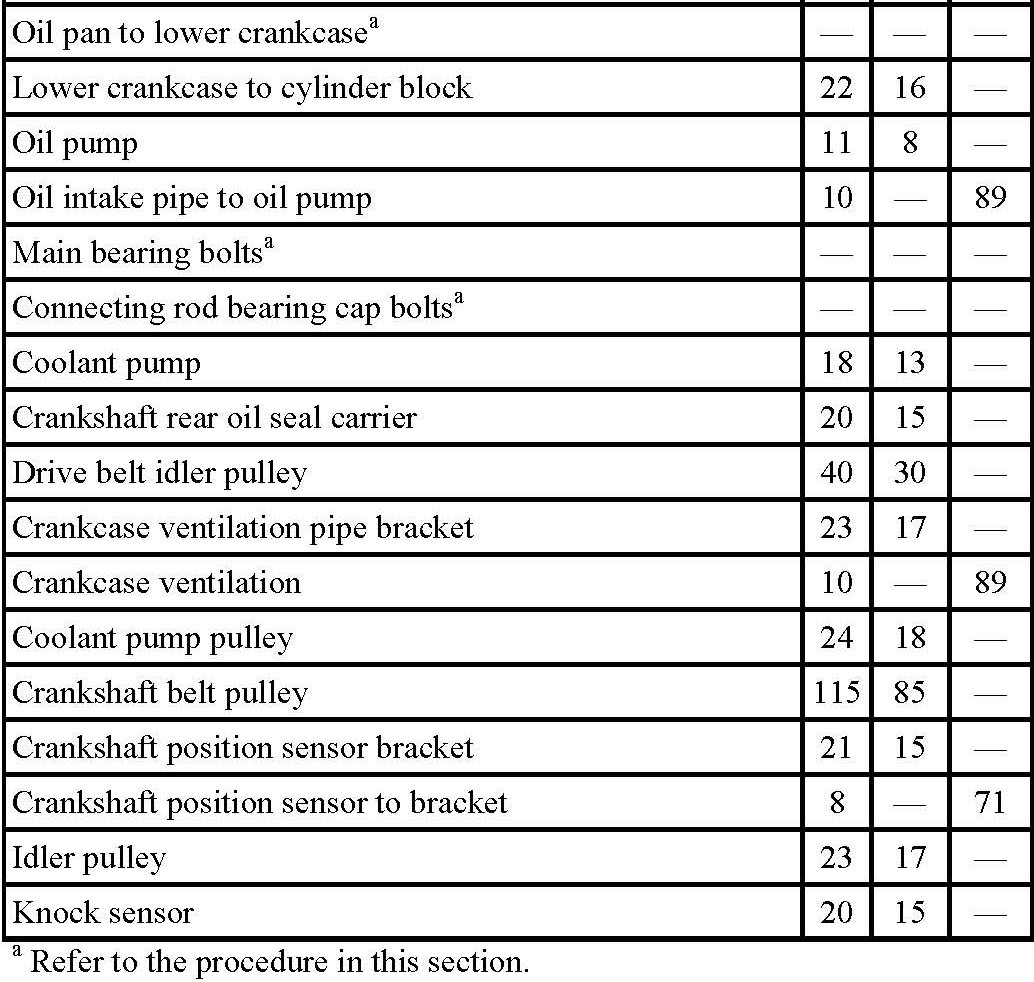

Torque Specifications (4 Of 4):

Cylinder Head Torque Specifications


CAUTION: Do not retighten the cylinder head bolts.

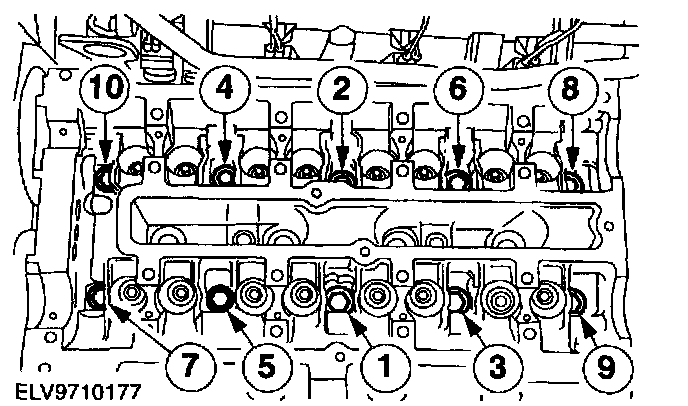

Tighten the cylinder head bolts in three stages in the sequence indicated:

^ Stage 1: 20 Nm
^ Stage 2: 40 Nm
^ Stage 3: 90 degrees
