Function Selector Switch Vacuum Application Chart

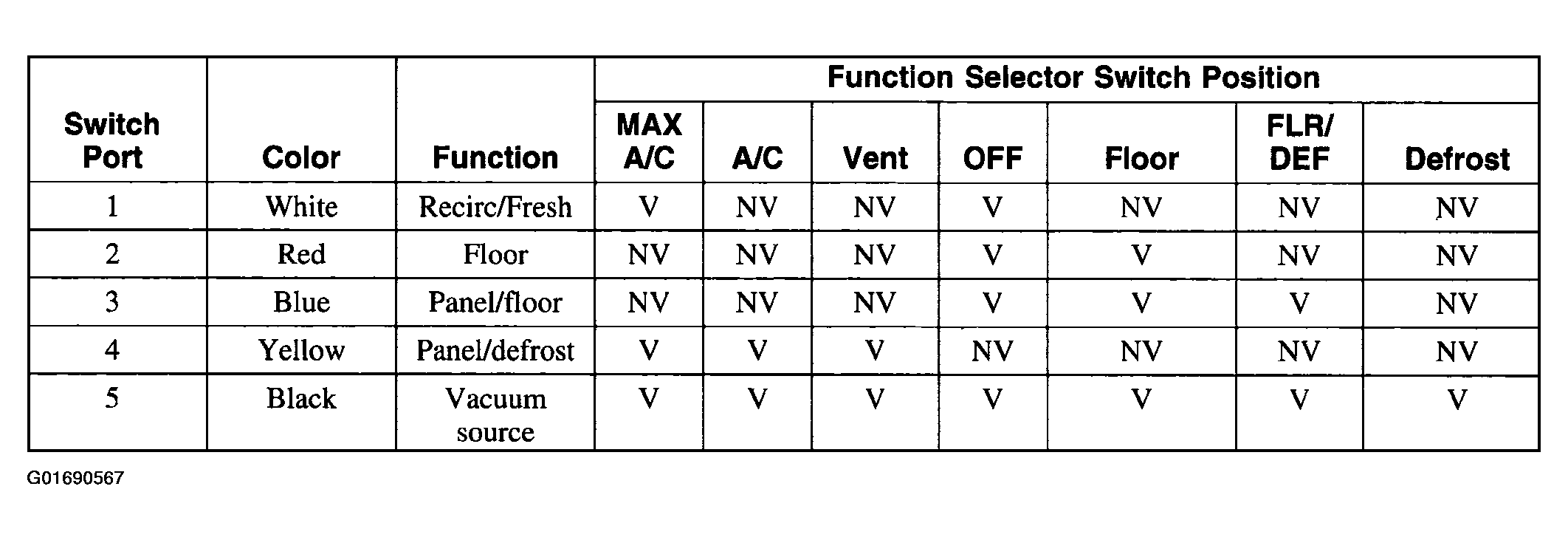

Fig 1: Function Selector Switch Vacuum Application Chart

G01690567

Courtesy of FORD MOTOR CO.
