Pinpoint Test D: DTC B1484, Brake Pedal Input Open Circuit

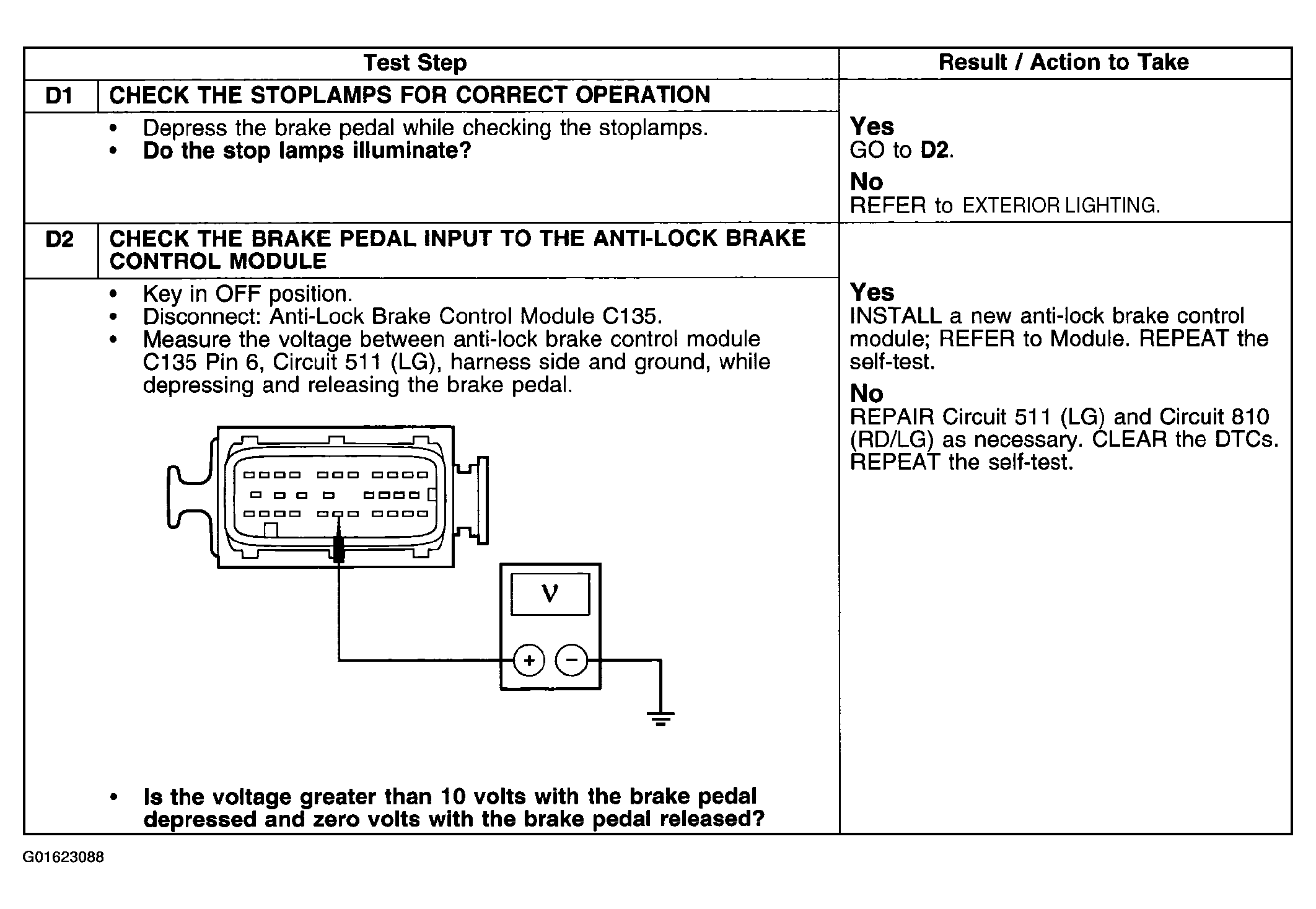

Fig 1: Pinpoint Test D: DTC B1484, Brake Pedal Input Open Circuit (D1 & D2)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
