Mass Air Flow (MAF) Sensor - 4.6L(2V): Notes
WARNING: This page is about a different car, the 2005 Mercury Mountaineer and 2005 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

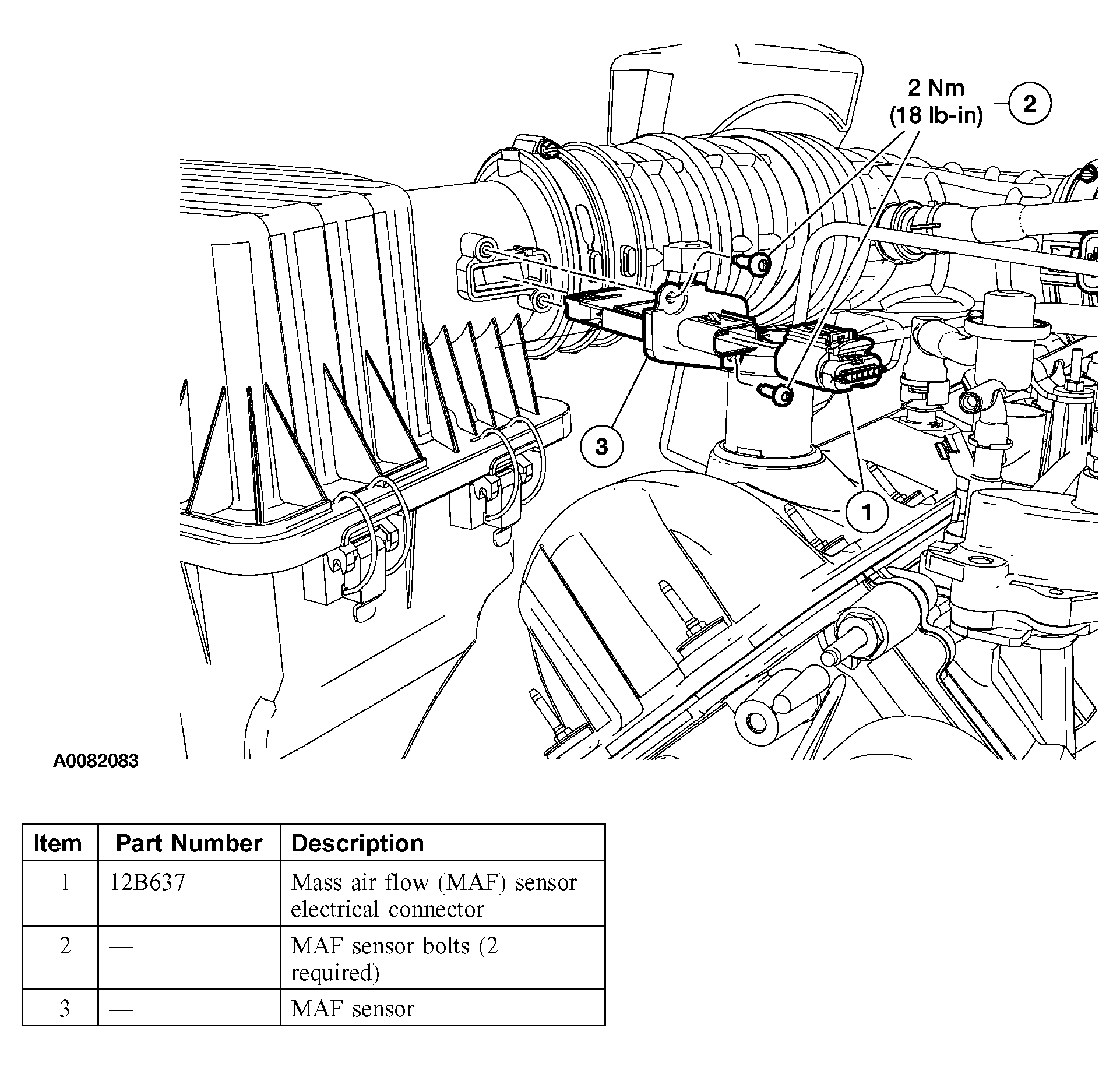

Fig 1: Mass Air Flow (MAF) Sensor -- 4.6L(2V) With Torque Specifications
