Pinpoint Test H: The Powertrain Control Module (Pcm) Does Not Respond To The Diagnostic Tool

WARNING: This page is about a different car, the 2003 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

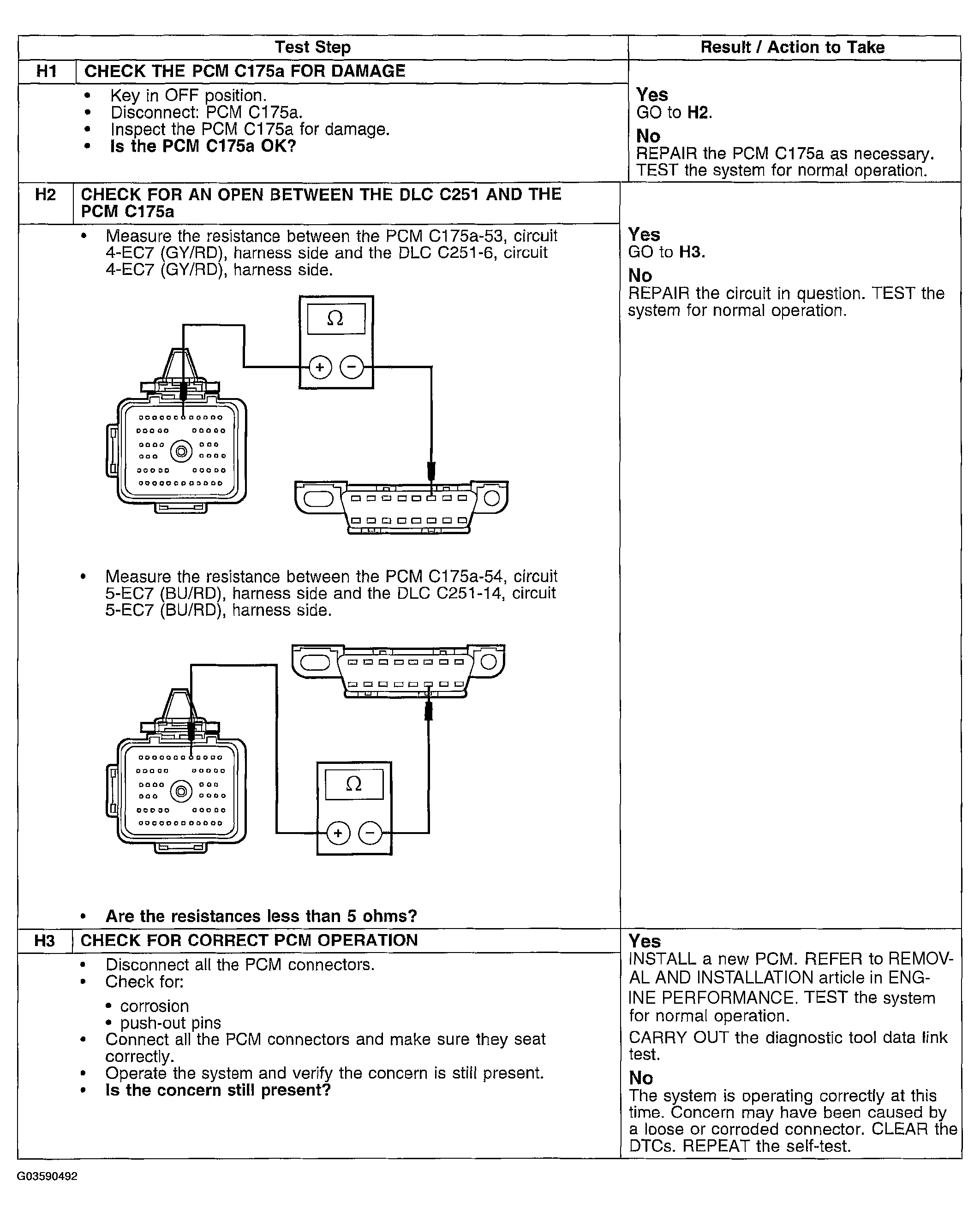

Fig 1: Pinpoint Test H: Powertrain Control Module (PCM) Does Not Respond To Diagnostic Tool (Step H1)
G03590492Courtesy of FORD MOTOR CO.
