Pinpoint Test U: No Communication With The Front Electronic Module (Fem)

WARNING: This page is about a different car, the 2003 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

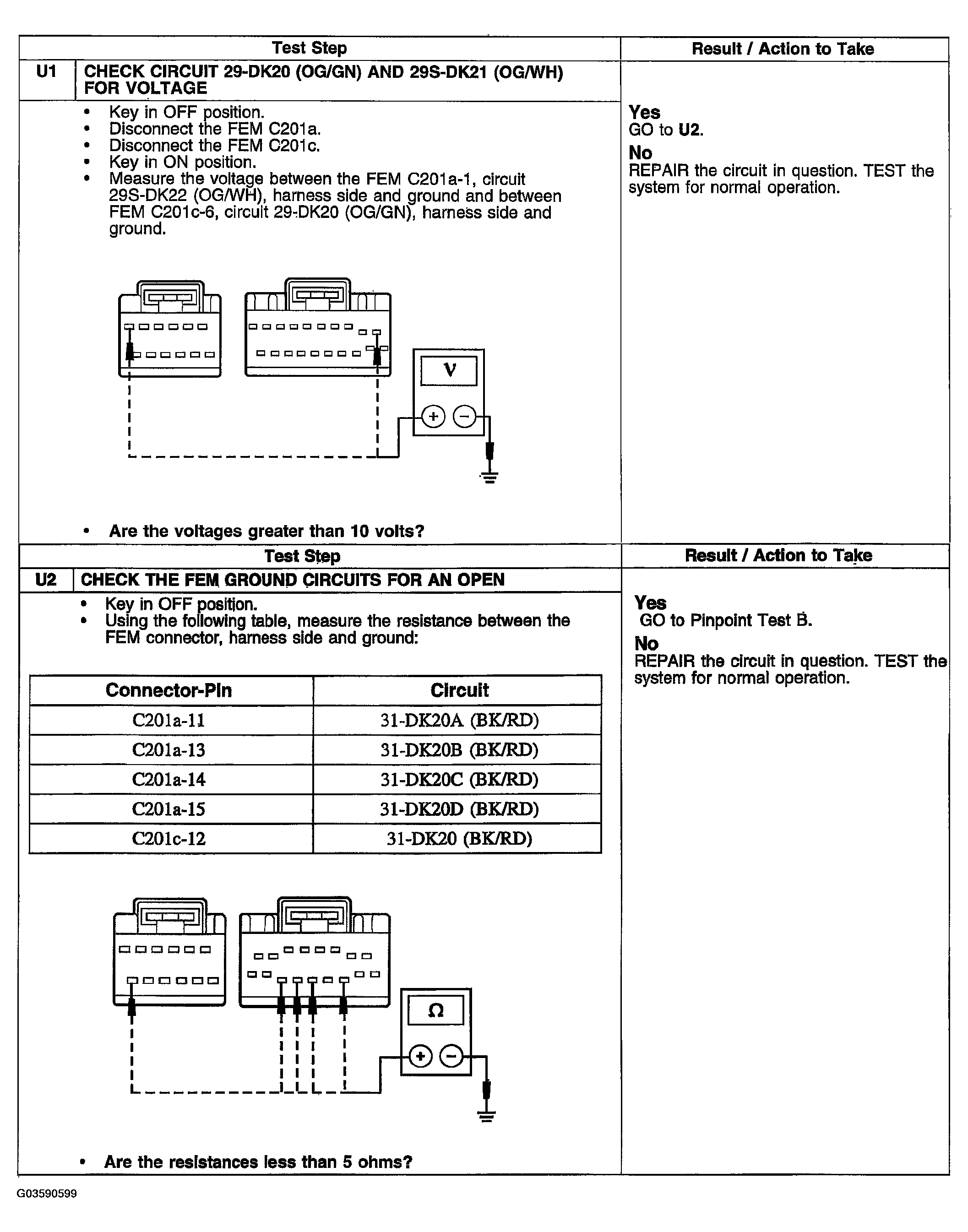

Fig 1: Pinpoint Test U: No Communication With Front Electronic Module (FEM) (Step U1)
G03590599Courtesy of FORD MOTOR CO.
