Tests DR: Camshaft Position (CMP) Sensor

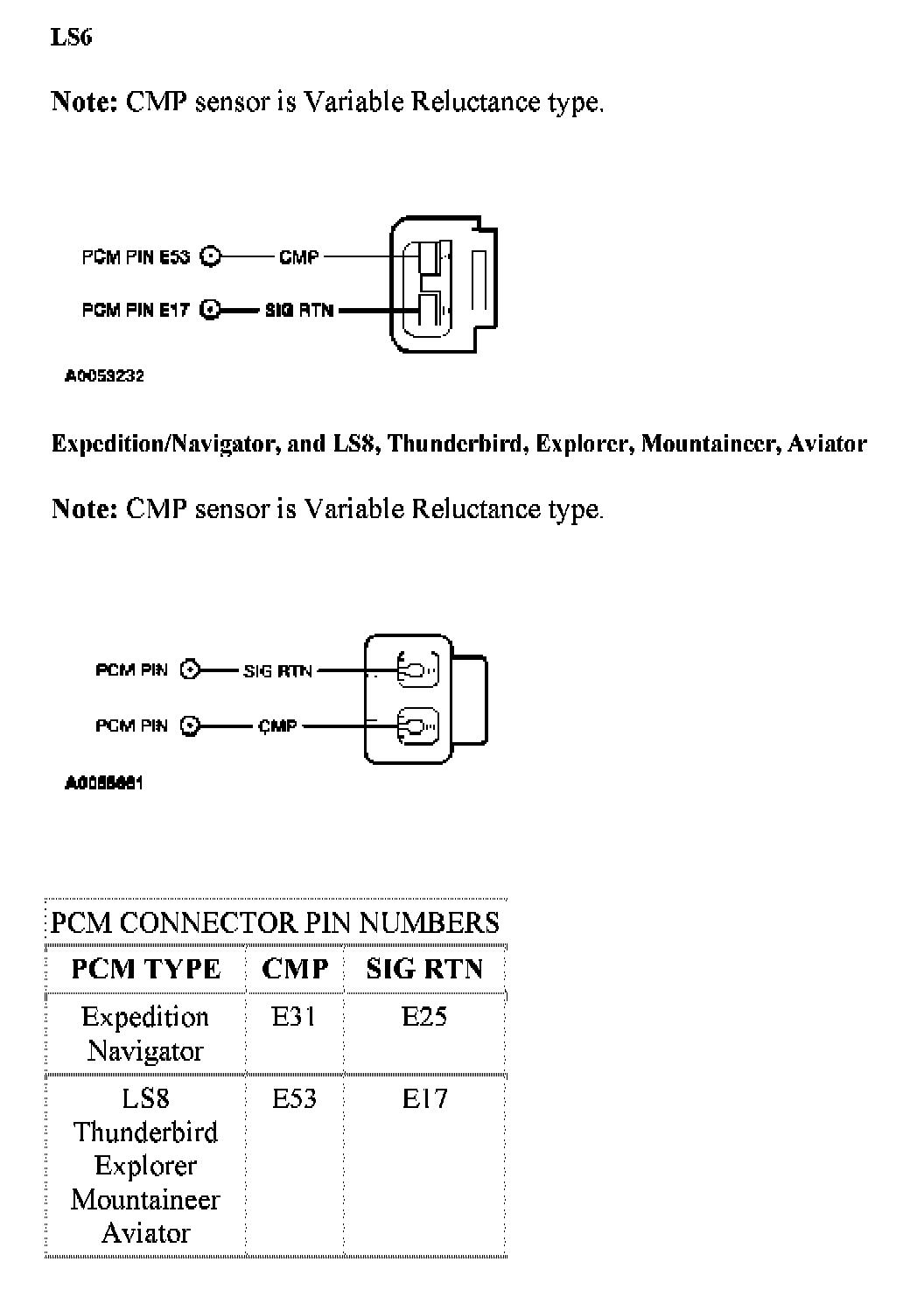

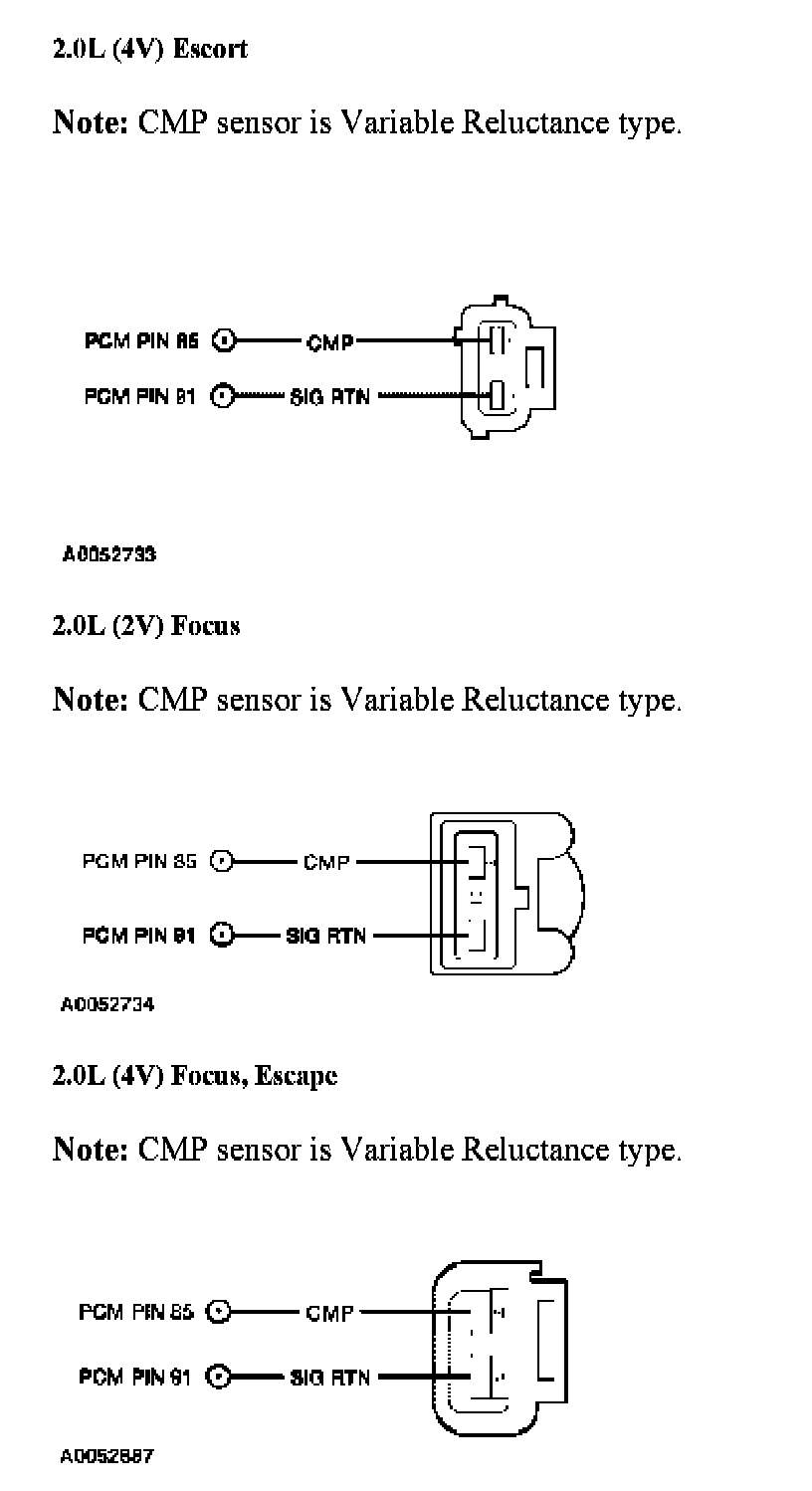

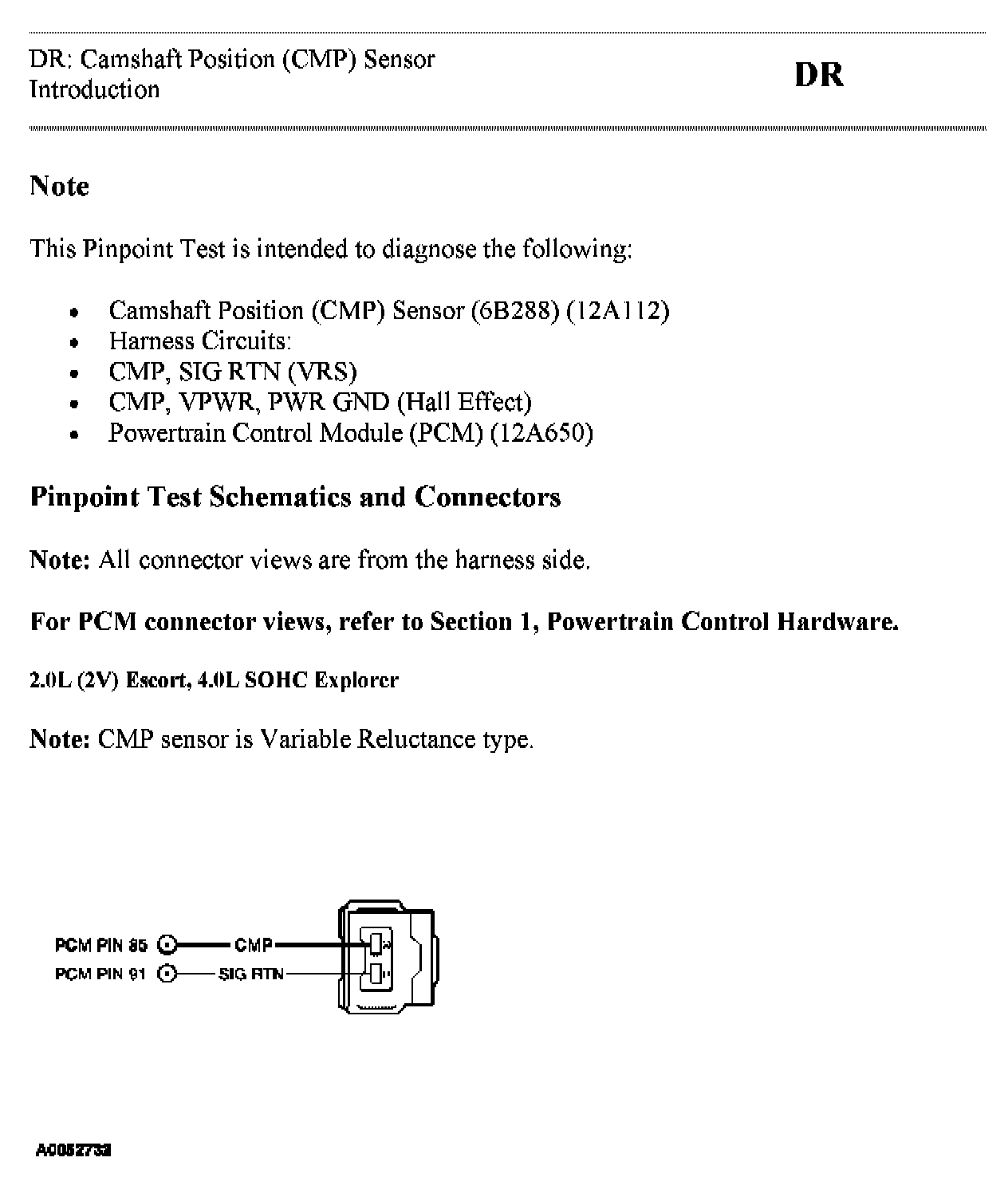

DR INTRODUCTION 1 OF 4:
DR INTRODUCTION 2 OF 4:

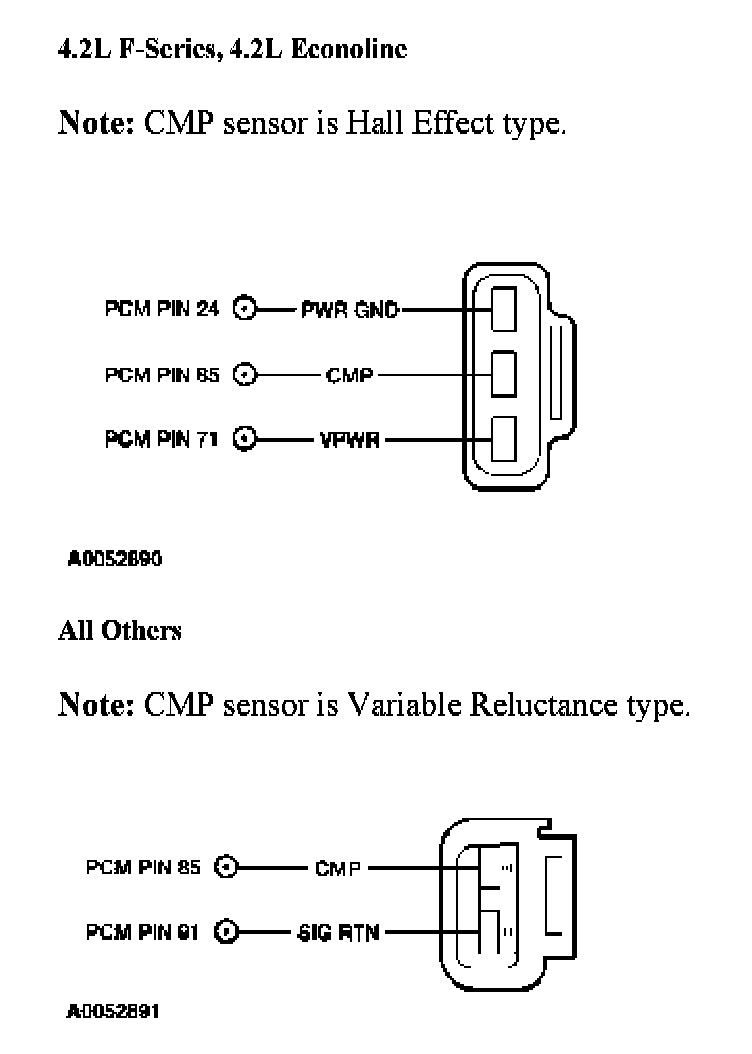

DR INTRODUCTION 3 OF 4:
DR INTRODUCTION 4 OF 4:

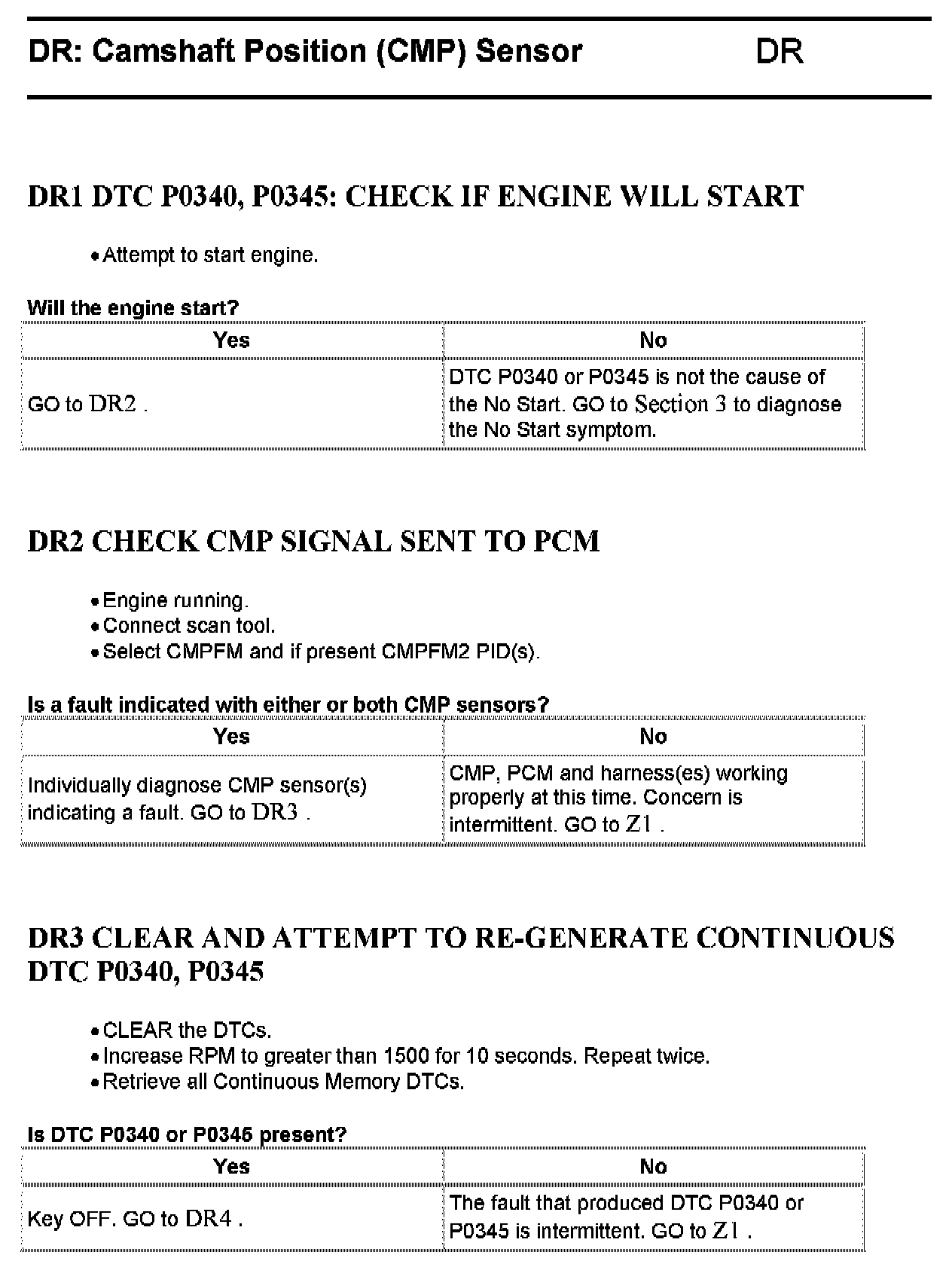

DR1 - DR3:

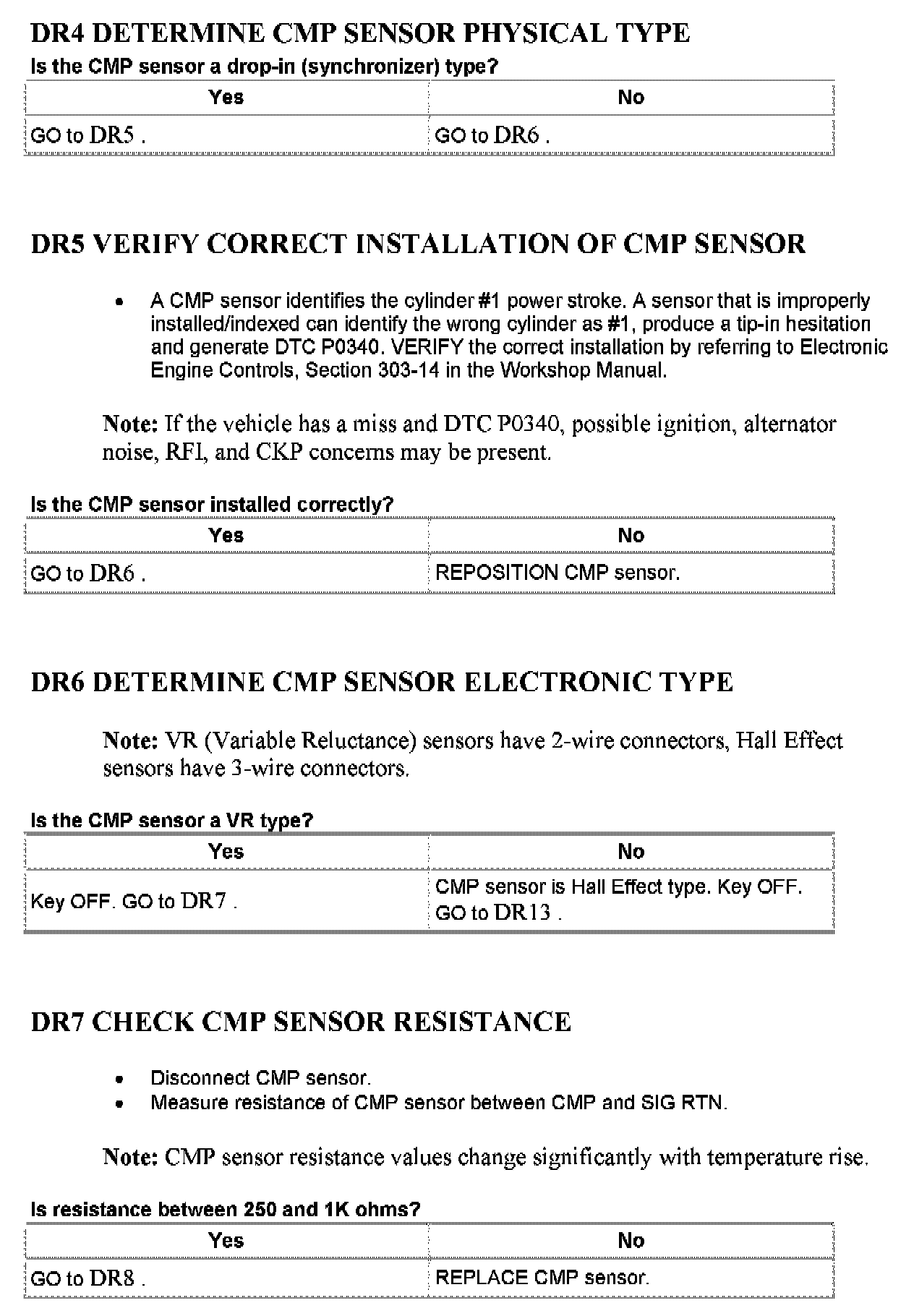

DR4 - DR7:

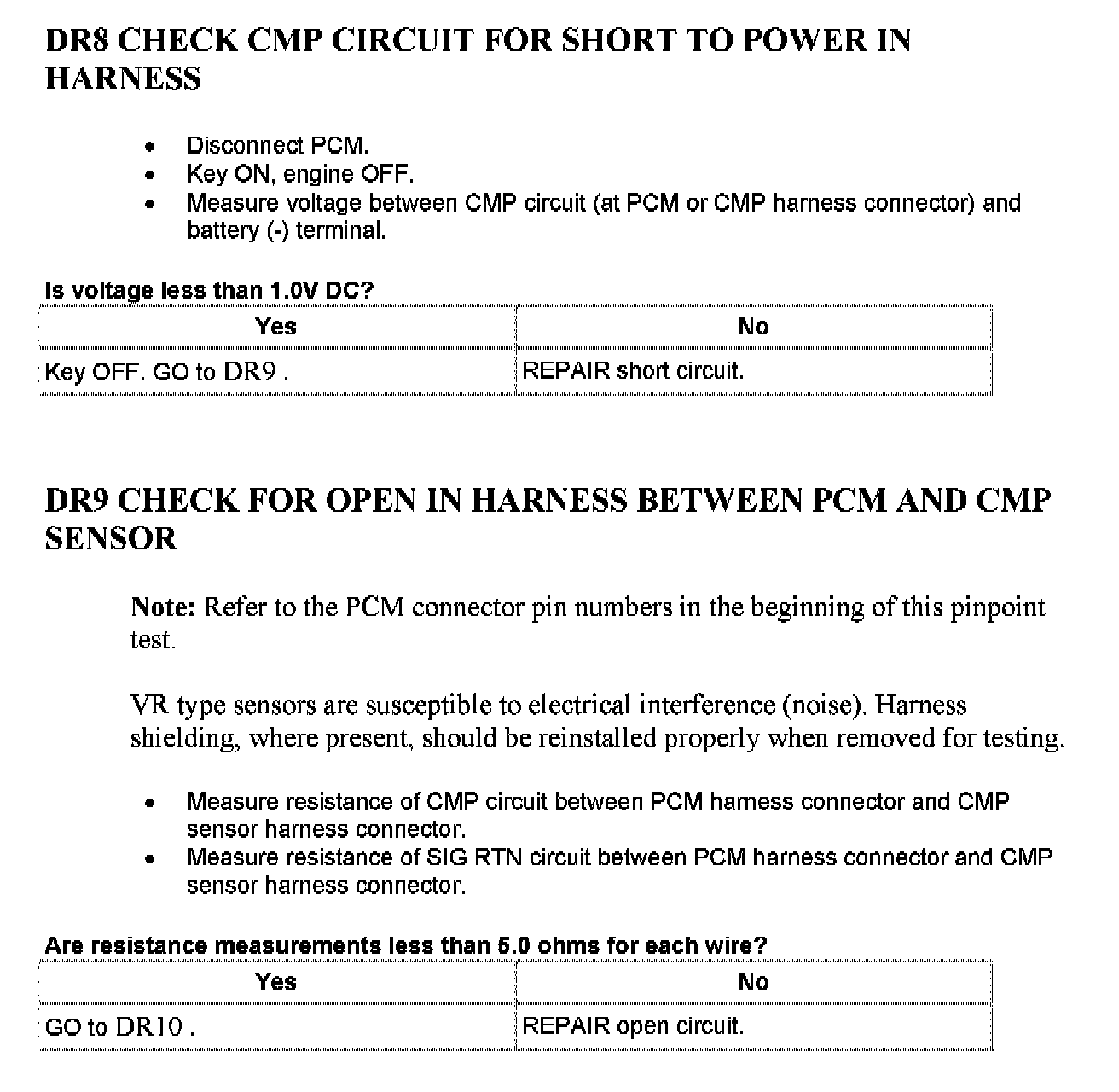

DR8 - DR9:

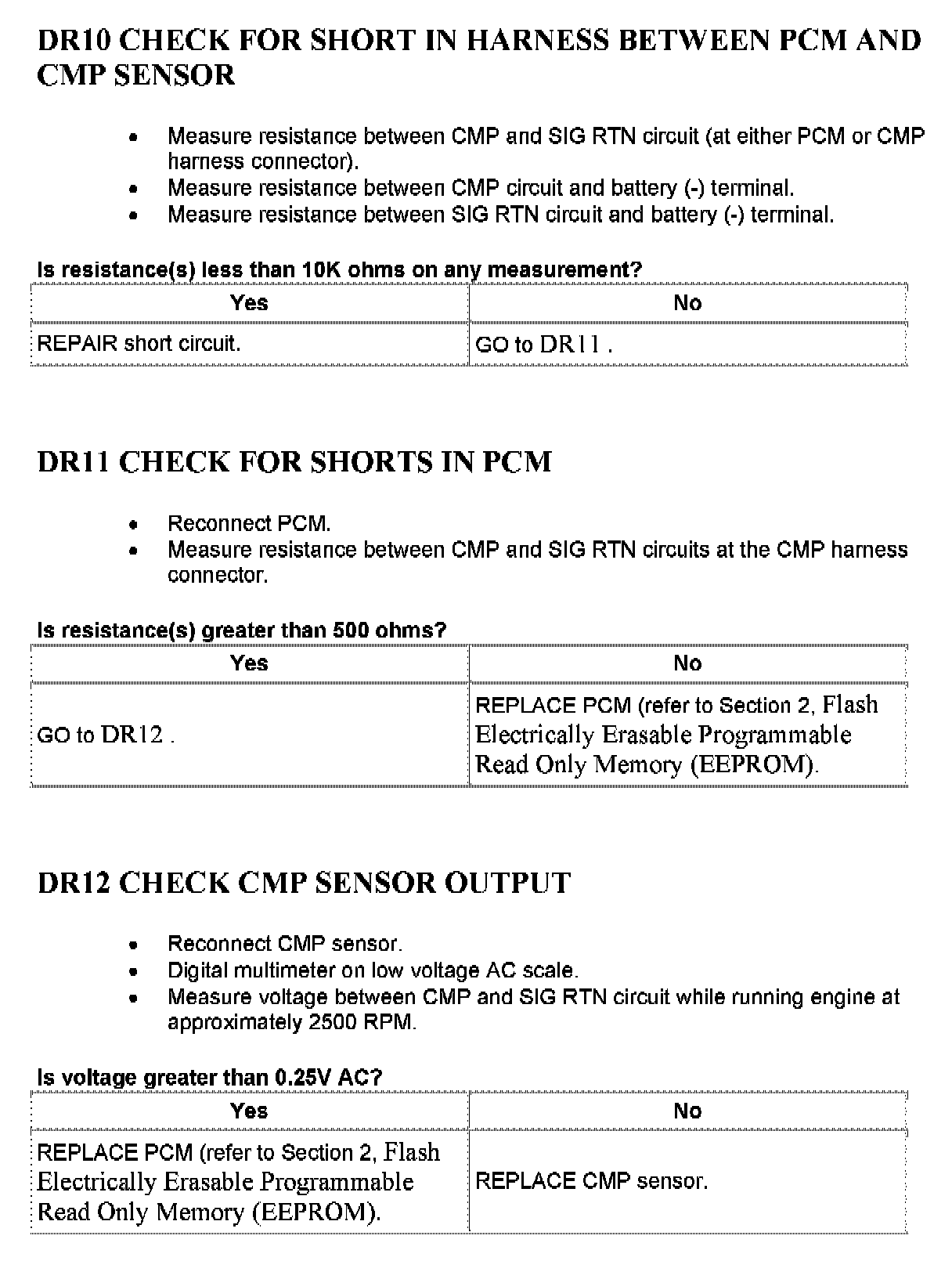

DR10 - DR12:

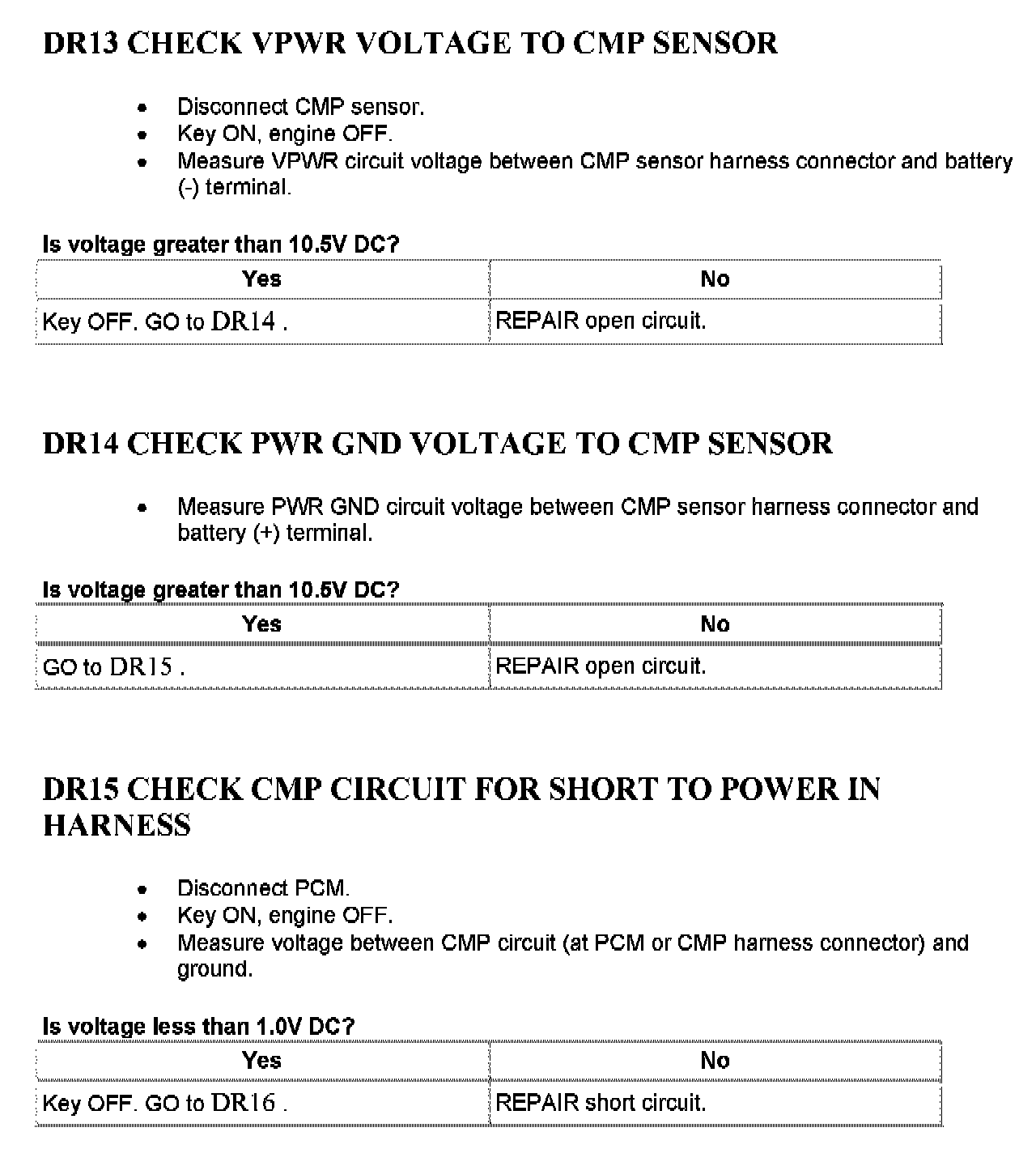

DR13 - DR15:

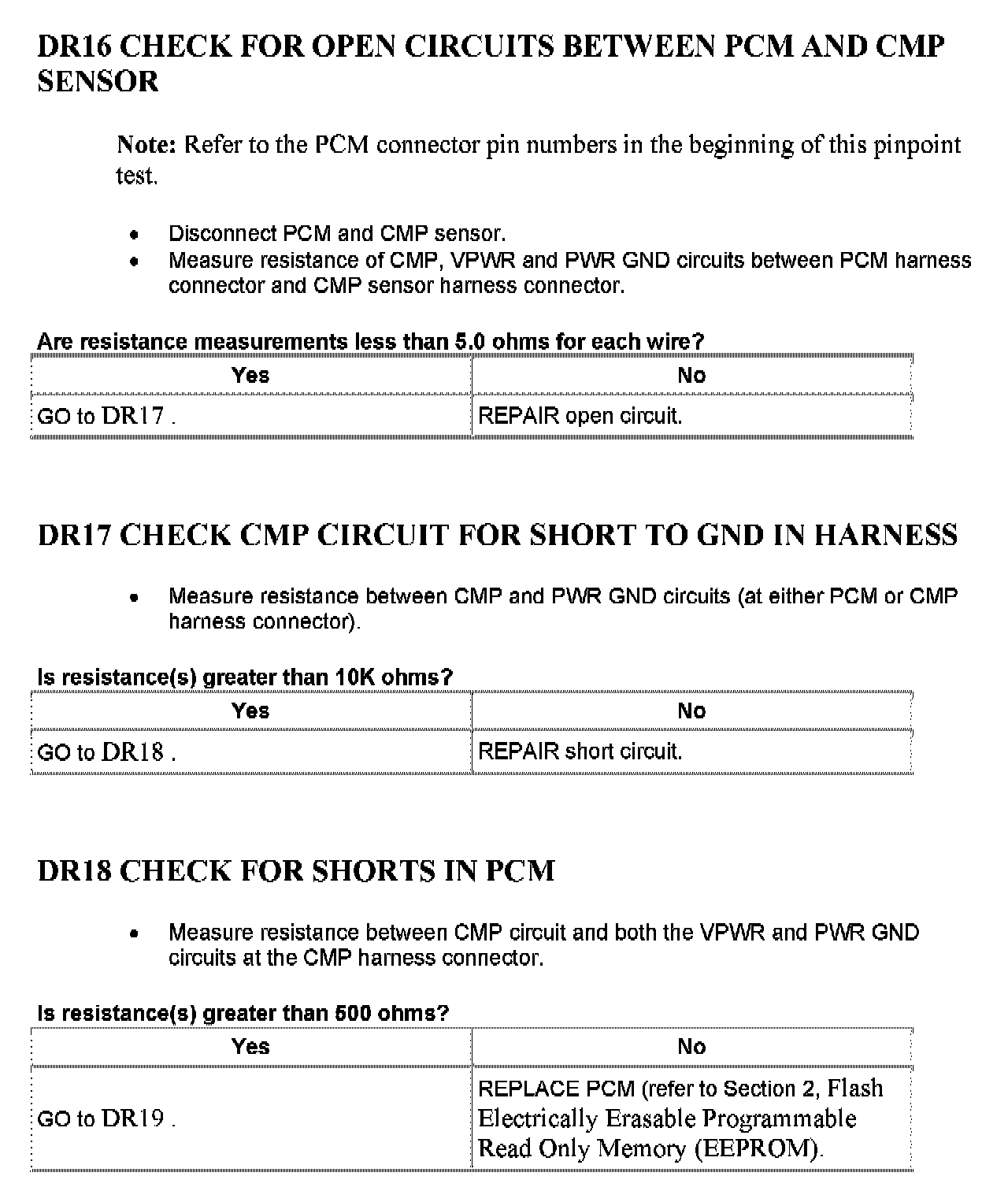

DR16 - DR18:

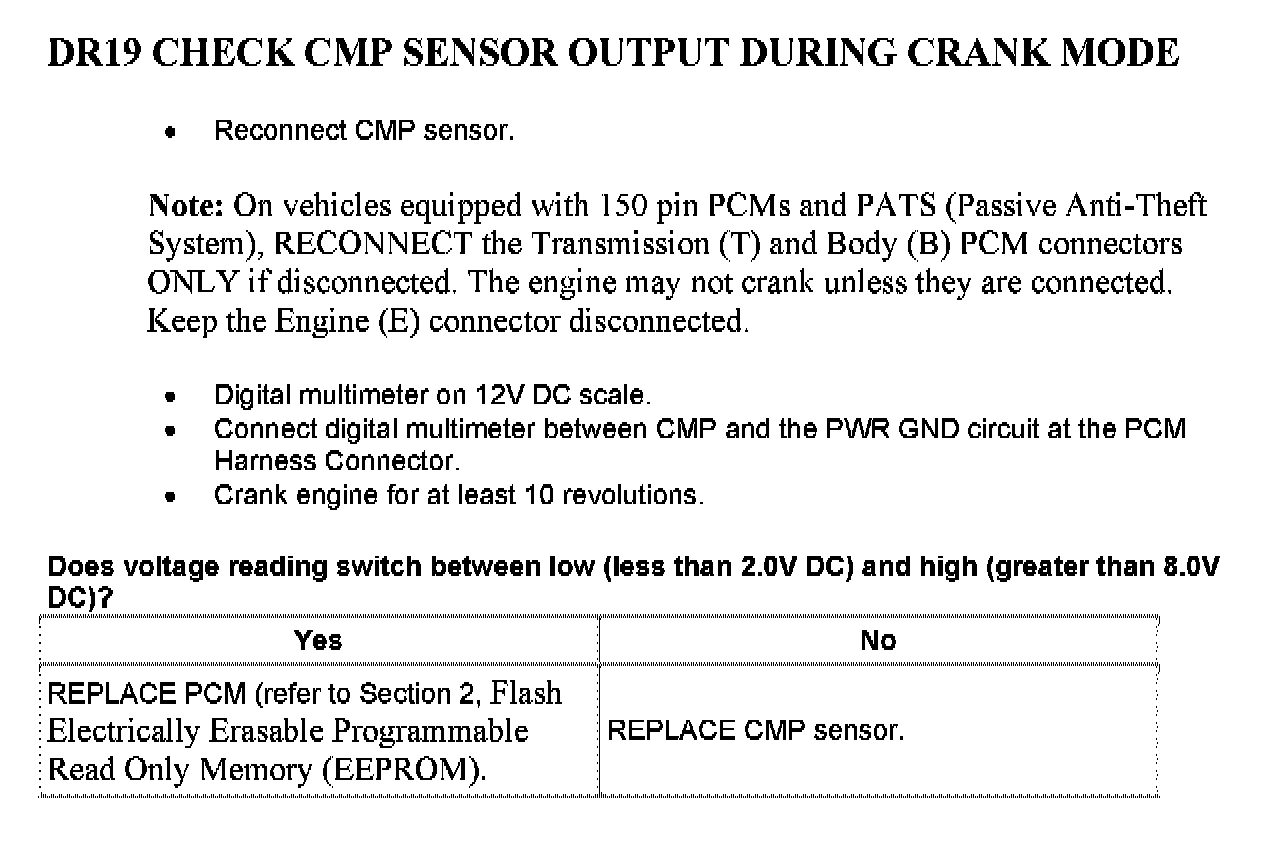

DR19:
