Test A

PINPOINT TEST A: THE 4-WHEEL ANTI-LOCK BRAKE (4WABS) CONTROL MODULE DOES NOT RESPOND TO THE DIAGNOSTIC TOOL

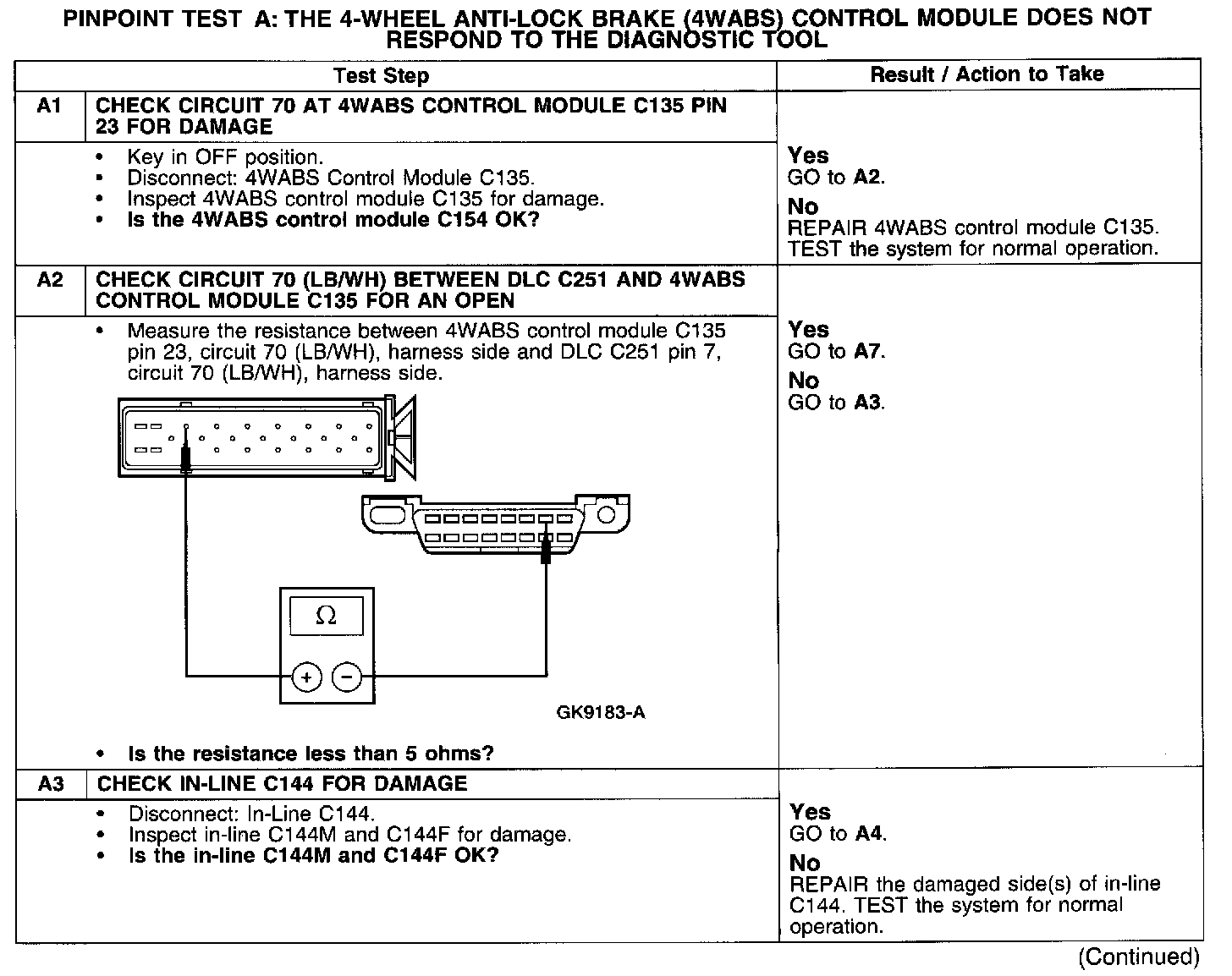

Test A1-A3:

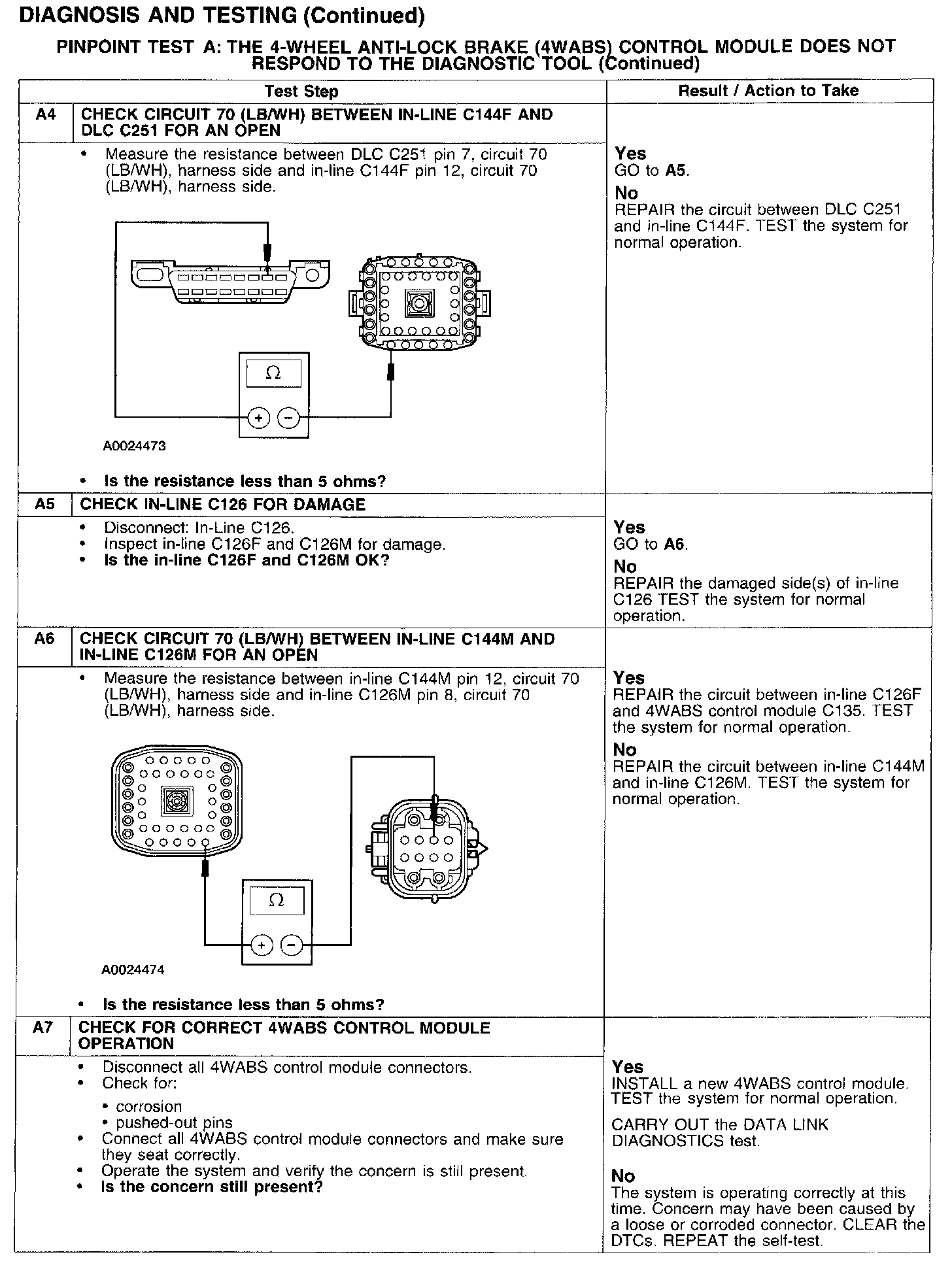

Test A4-A7:
