Test F

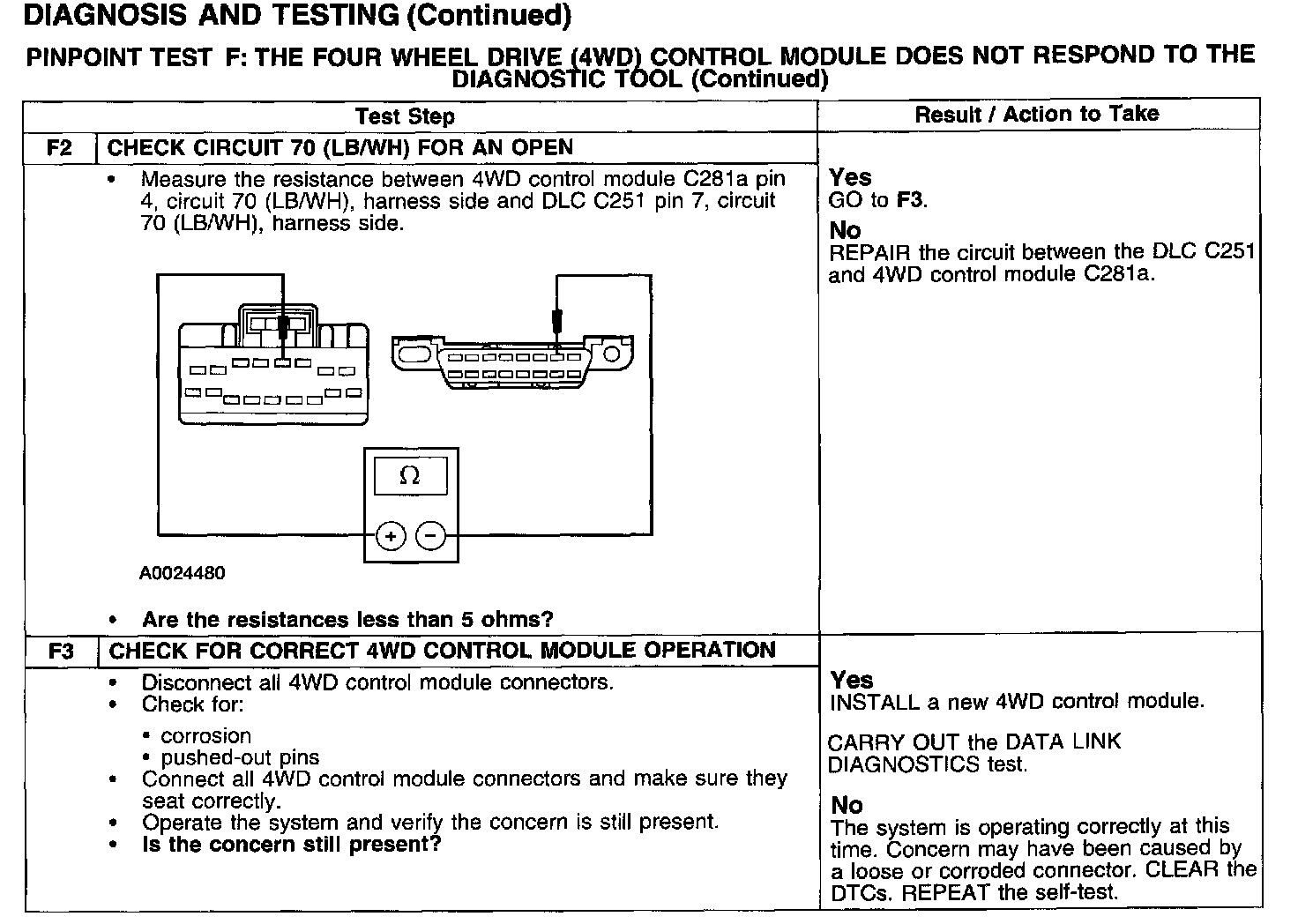

PINPOINT TEST F: THE FOUR WHEEL DRIVE (4WD) CONTROL MODULE DOES NOT RESPOND TO THE DIAGNOSTIC TOOL
Test F1:
Test F2-F3:
