Pinpoint Test F: The Dual Automatic Temperature Control (DATC) Module Does Not Respond To The Diagnostic Tool

WARNING: This page is about a different car, the 2003 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

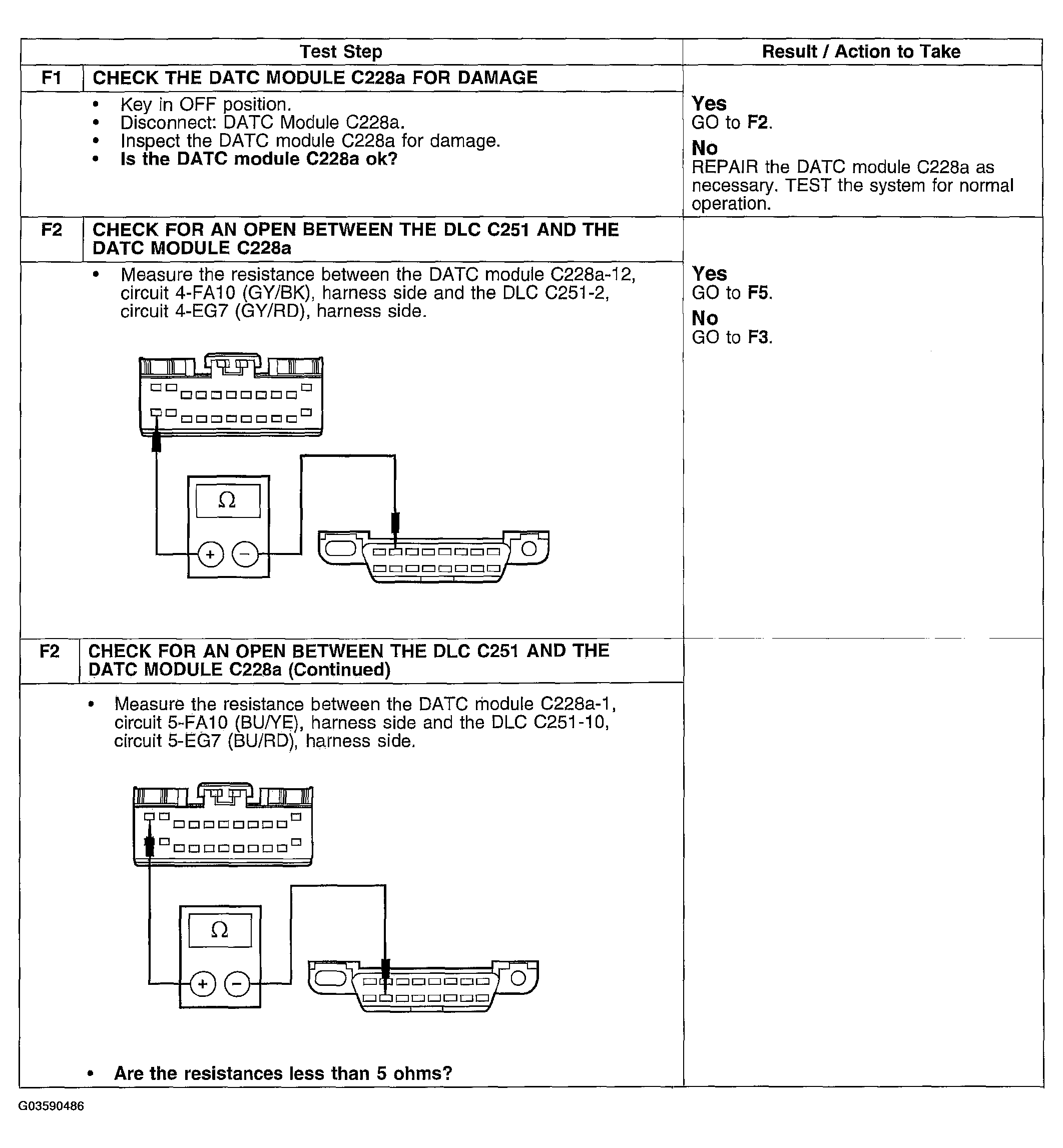

Fig 1: Pinpoint Test F: Dual Automatic Temperature Control (DATC) Module Does Not Respond To Diagnostic Tool (Step F1 - F2)

Courtesy of FORD MOTOR CO.

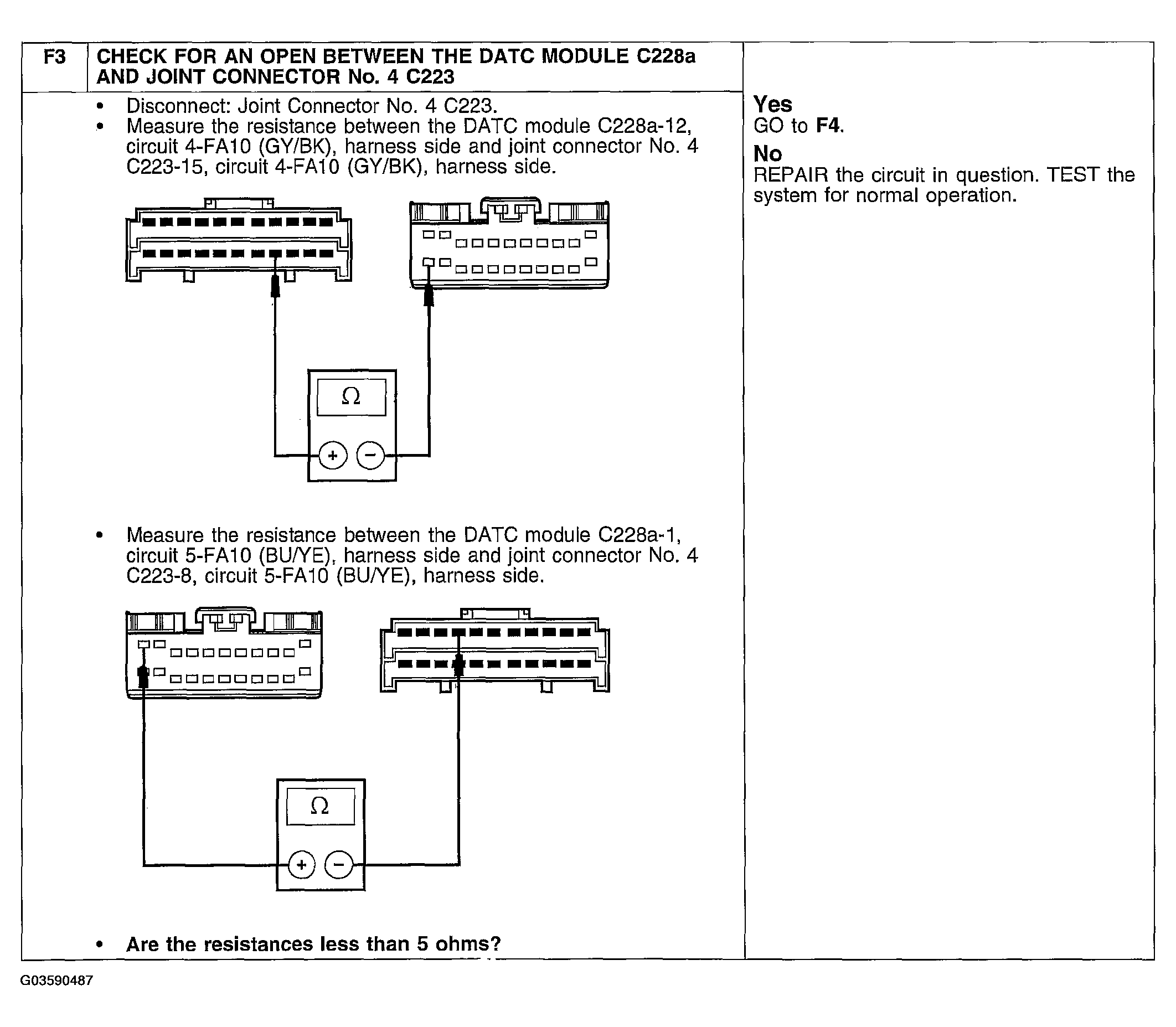

Fig 2: Pinpoint Test F: Dual Automatic Temperature Control (DATC) Module Does Not Respond To Diagnostic Tool (Step F2 - F3)

Courtesy of FORD MOTOR CO.

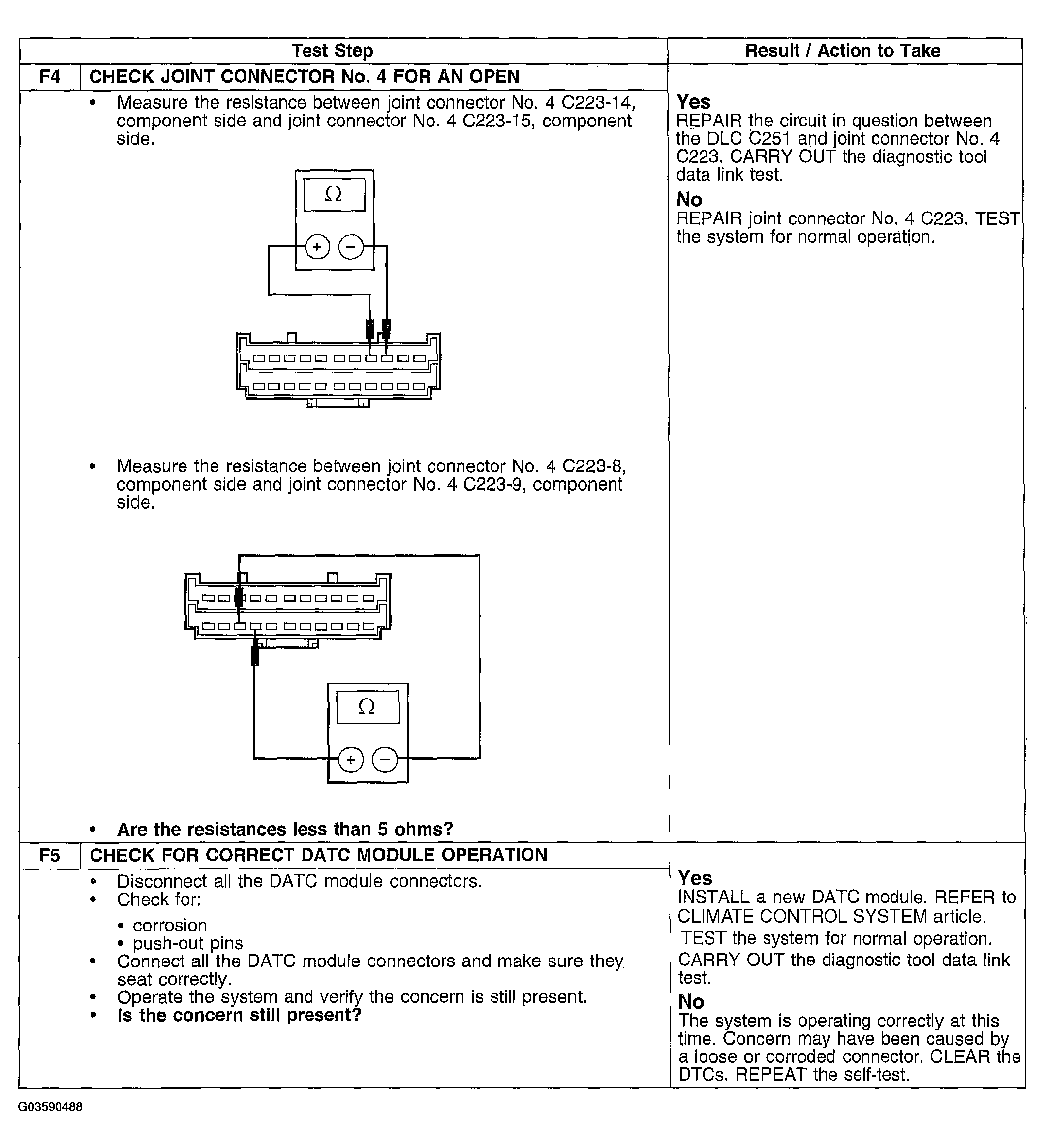

Fig 3: Pinpoint Test F: Dual Automatic Temperature Control (DATC) Module Does Not Respond To Diagnostic Tool (Step F4 - F5)

Courtesy of FORD MOTOR CO.
