Power Window Switch: Service and Repair

WINDOW CONTROL SWITCH

REMOVAL

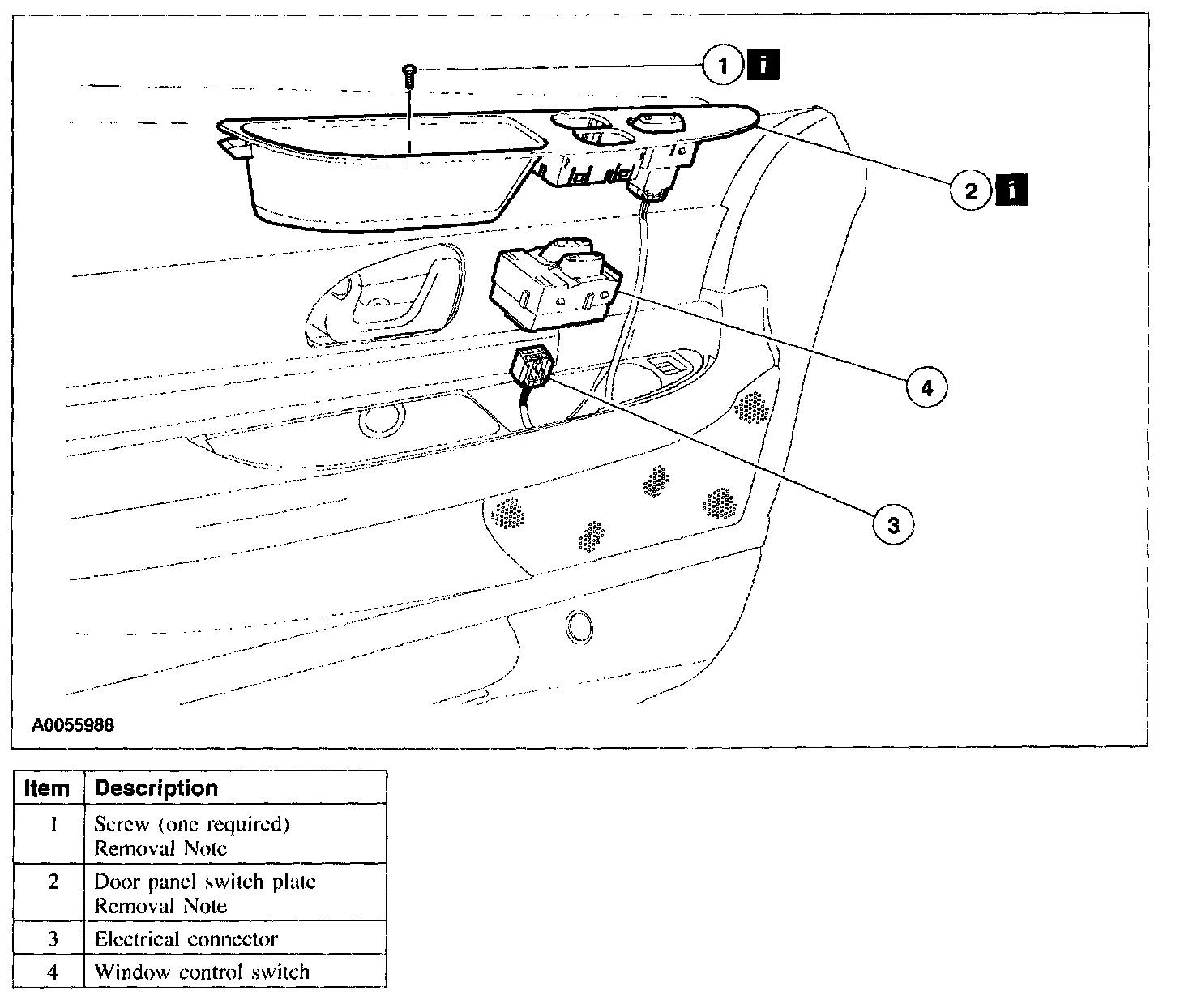

1. Remove the components in the order indicated in the illustration and table.

Item 1: Screw Removal Note
1. Remove the door handle cup cover to access the screw.

Item 2: Door Panel Switch Plate Removal Note
1. Lift the switch plate at the front and move it forward.

INSTALLATION
1. To install, reverse the removal procedure.
