Front Electronic Module (FEM)-C201a

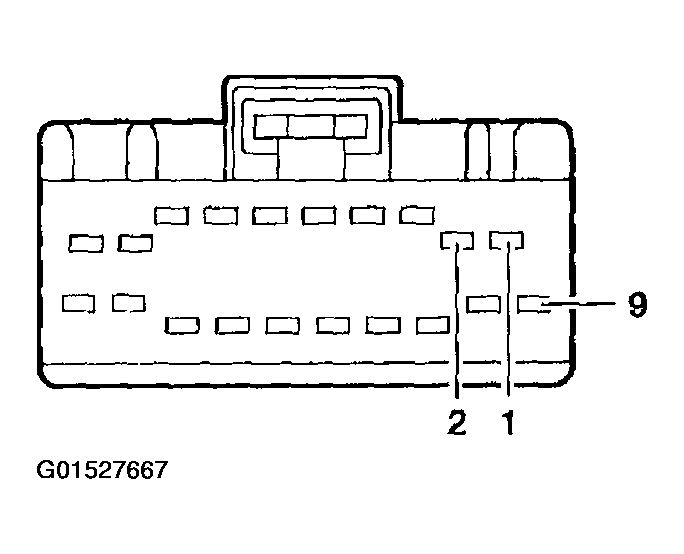

Fig 1: Front Electronic Module (FEM)-C201a Connector
G01527667Courtesy of FORD MOTOR CO.

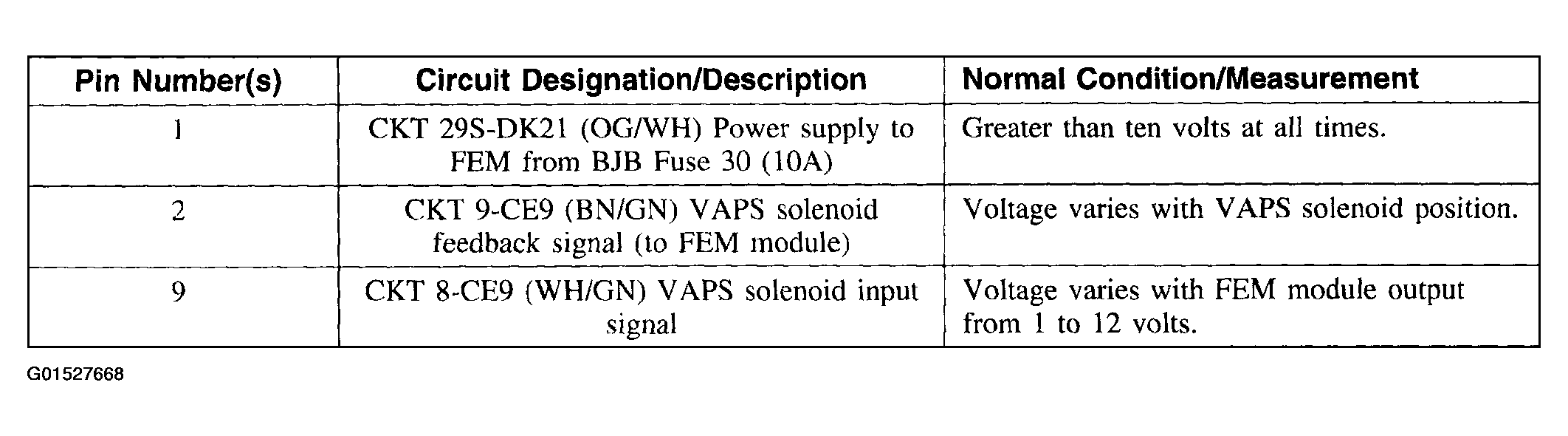

Fig 2: Connector Reference Chart
G01527668Courtesy of FORD MOTOR CO.
