Special Tool(s)

WARNING: This page is about a different car, the 2003 Ford RV Cutaway, 2003 Ford Econoline, 2003 Ford E450 Super Duty, and 2003 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

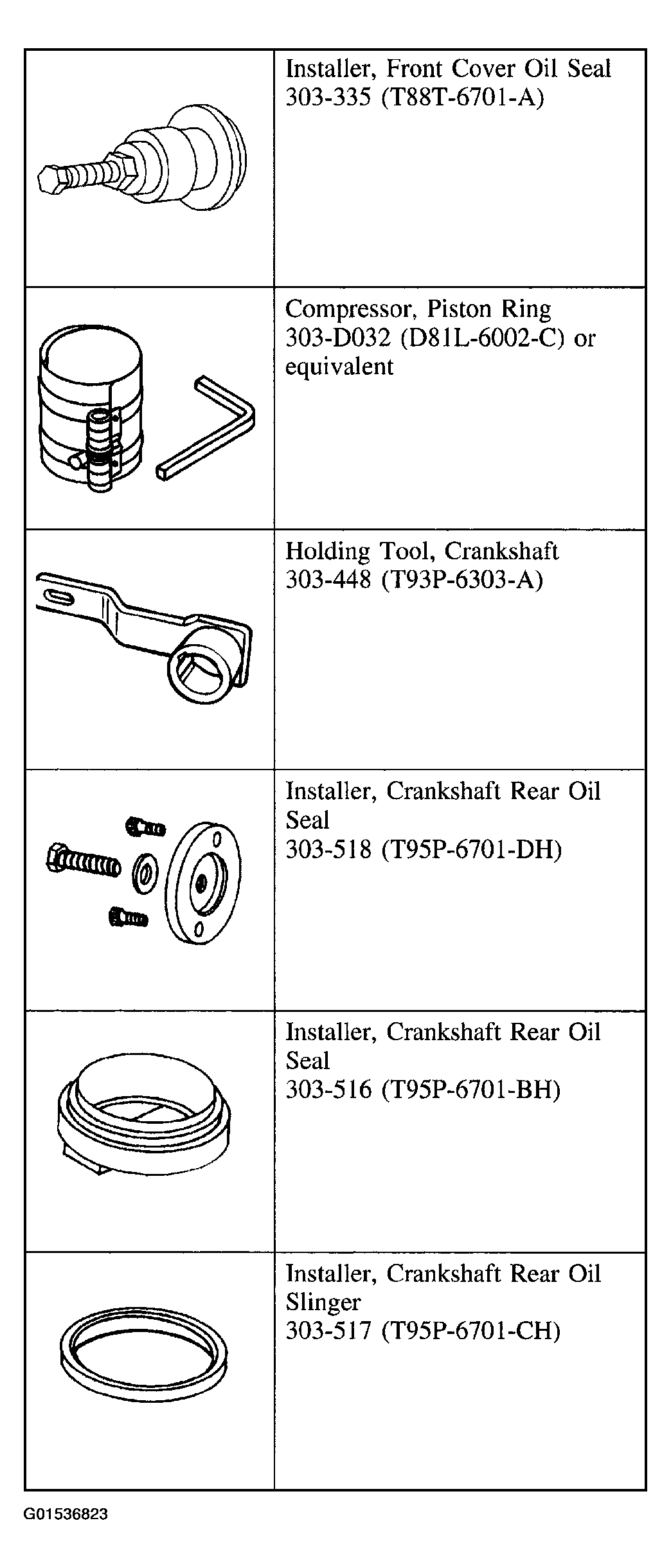

Fig 1: Identifying Special Tool (1 Of 3)

Courtesy of FORD MOTOR CO.

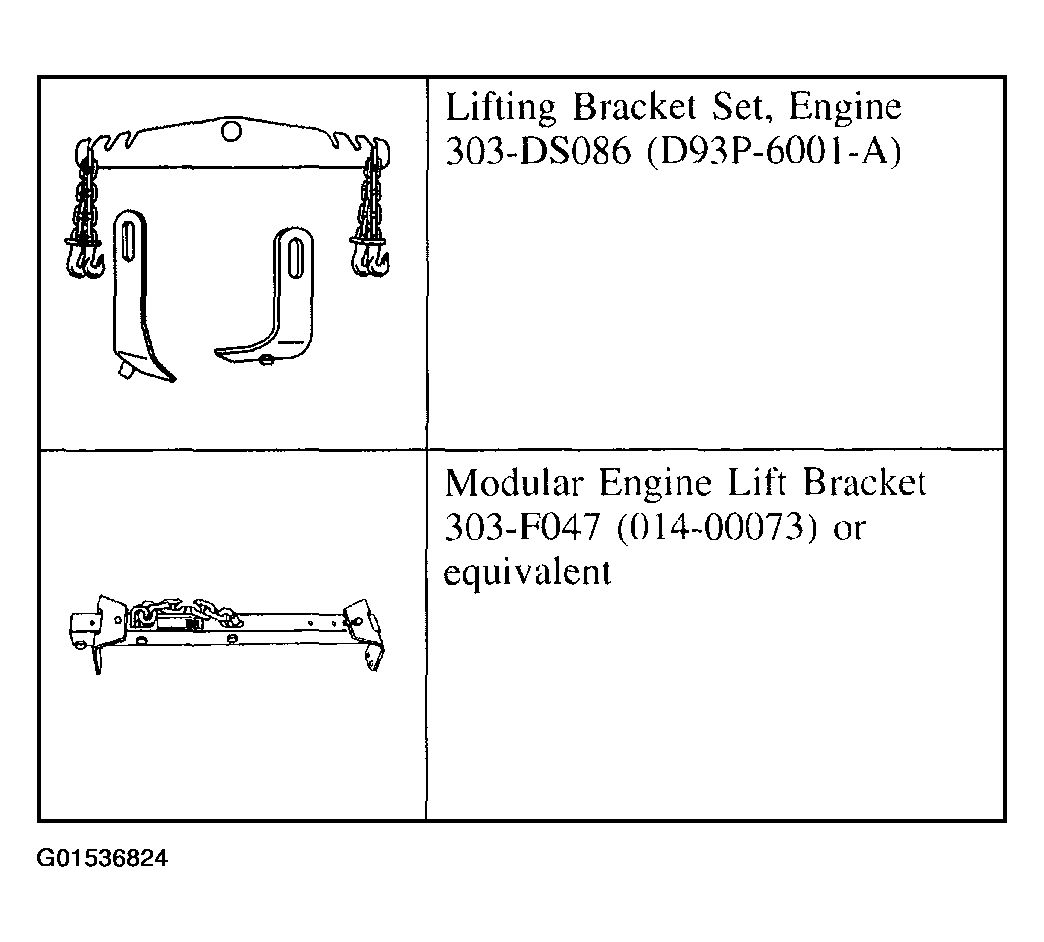

Fig 2: Identifying Special Tool (2 Of 3)

Courtesy of FORD MOTOR CO.

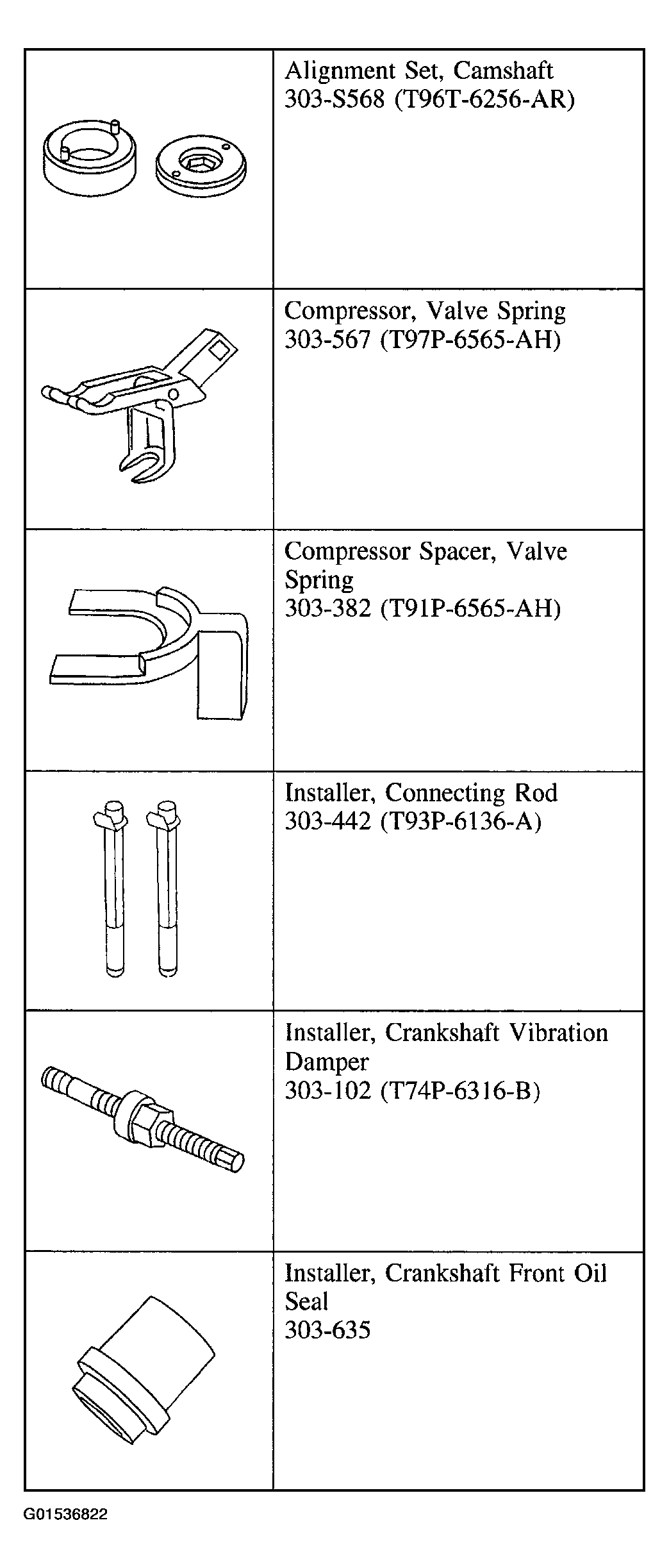

Fig 3: Identifying Special Tool (3 Of 3)

Courtesy of FORD MOTOR CO.
