Connector Circuit Reference

WARNING: This page is about a different car, the 2005 Mercury Montego, 2005 Ford Freestyle, and 2005 Ford Five Hundred. However, it is still accessible from the selected car via links, so may be relevant.

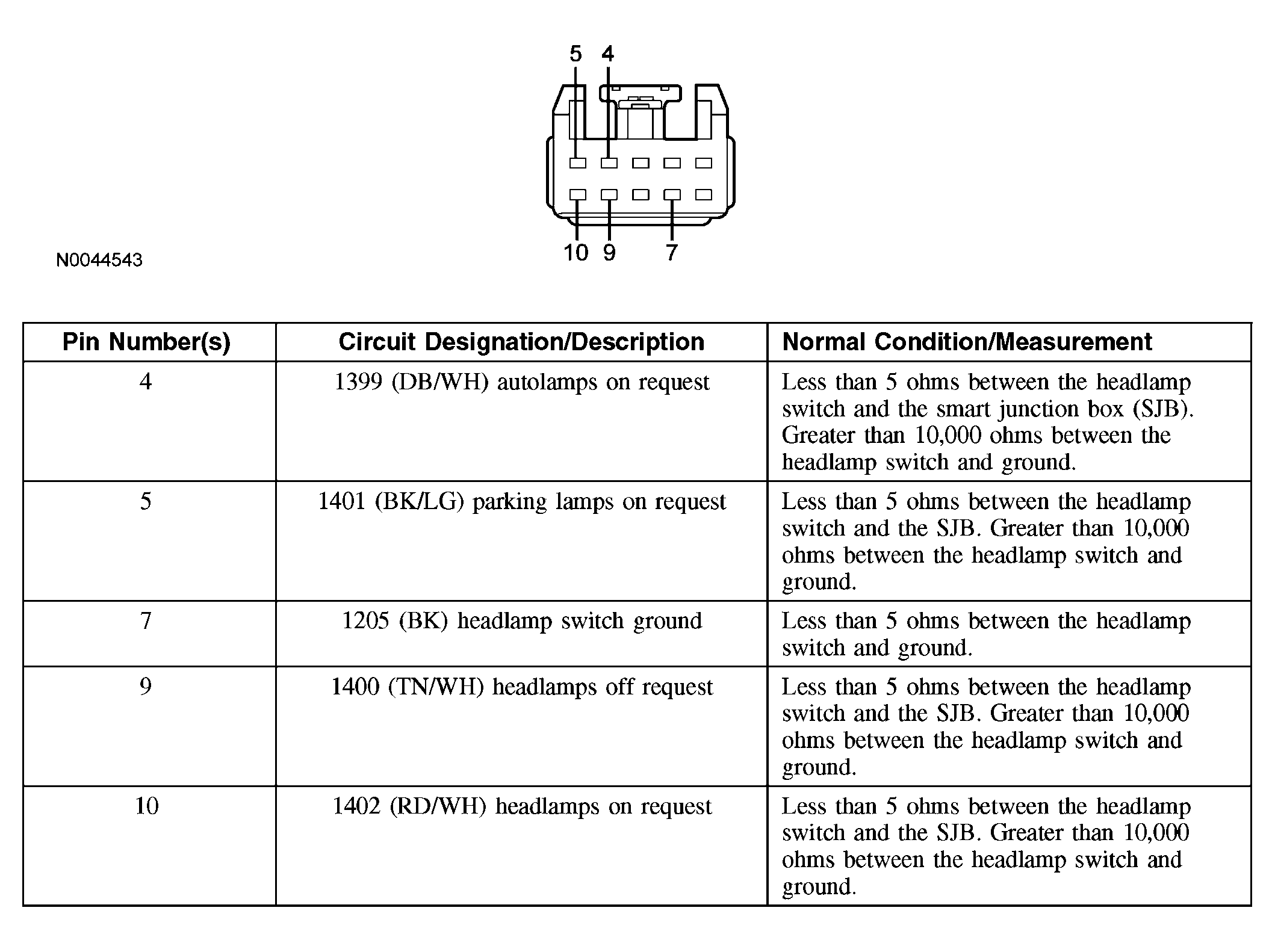

Fig 1: Connector Circuit Reference - Headlamp Switch C205
G03992763Courtesy of FORD MOTOR CO.

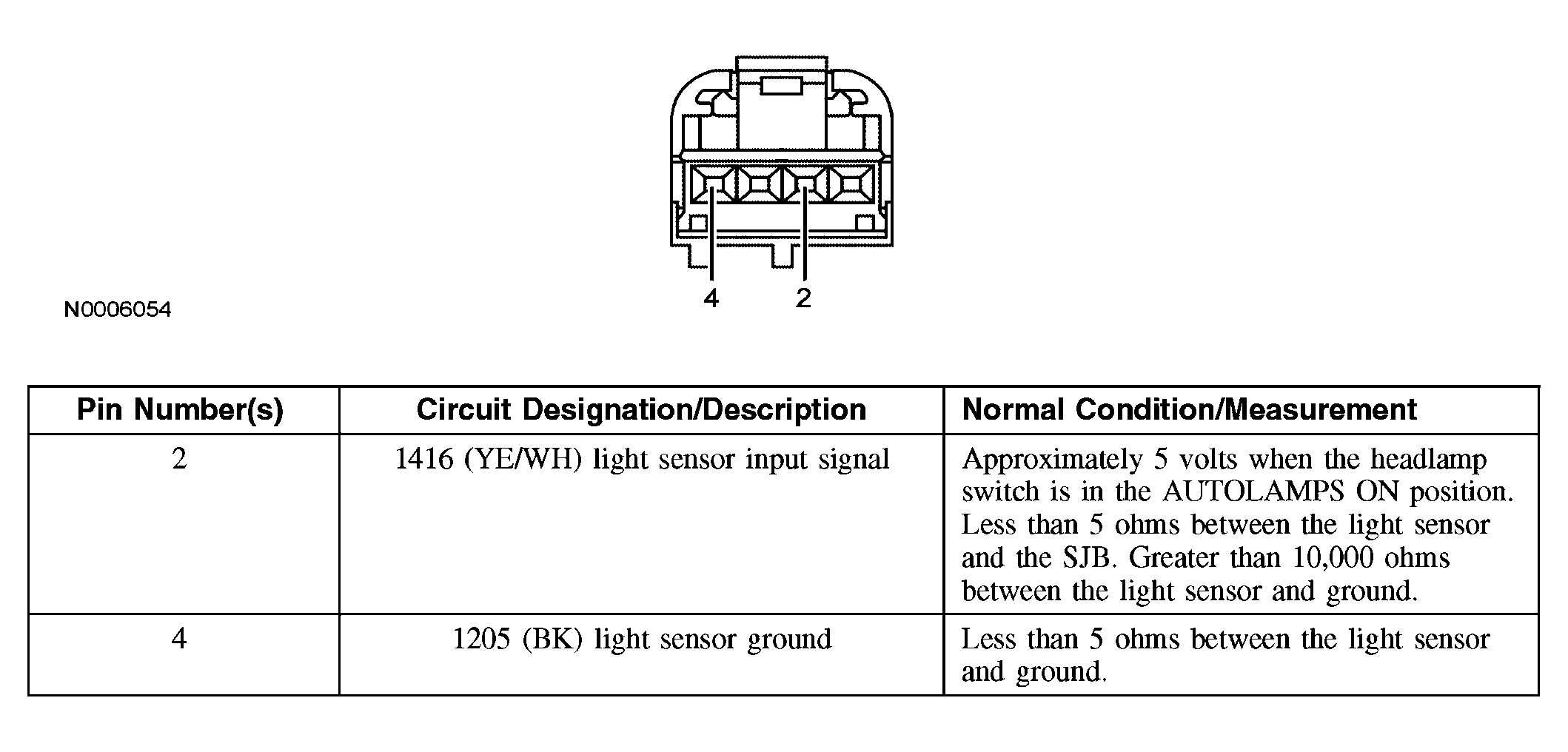

Fig 2: Connector Circuit Reference - Light Sensor C286
G03992764Courtesy of FORD MOTOR CO.

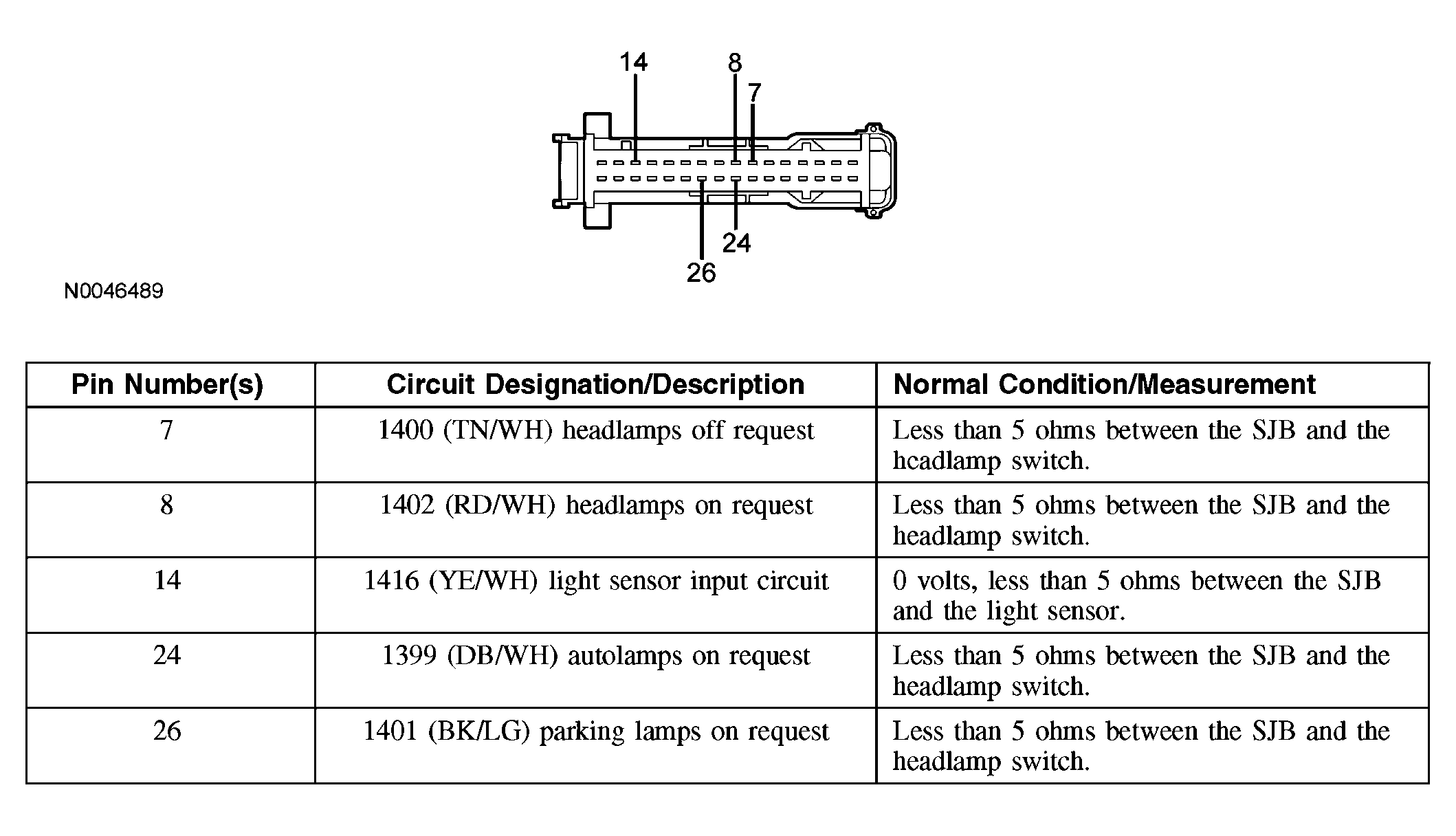

Fig 3: Connector Circuit Reference - SJB C2280D
G03992765Courtesy of FORD MOTOR CO.
