Section 222 (Engine-3.0L): Disassembly: Engine: Disassembly

WARNING: This page is about a different car, the 2003 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

Remove the components in the order indicated in the following illustration and table. Illustration 1 of 21.

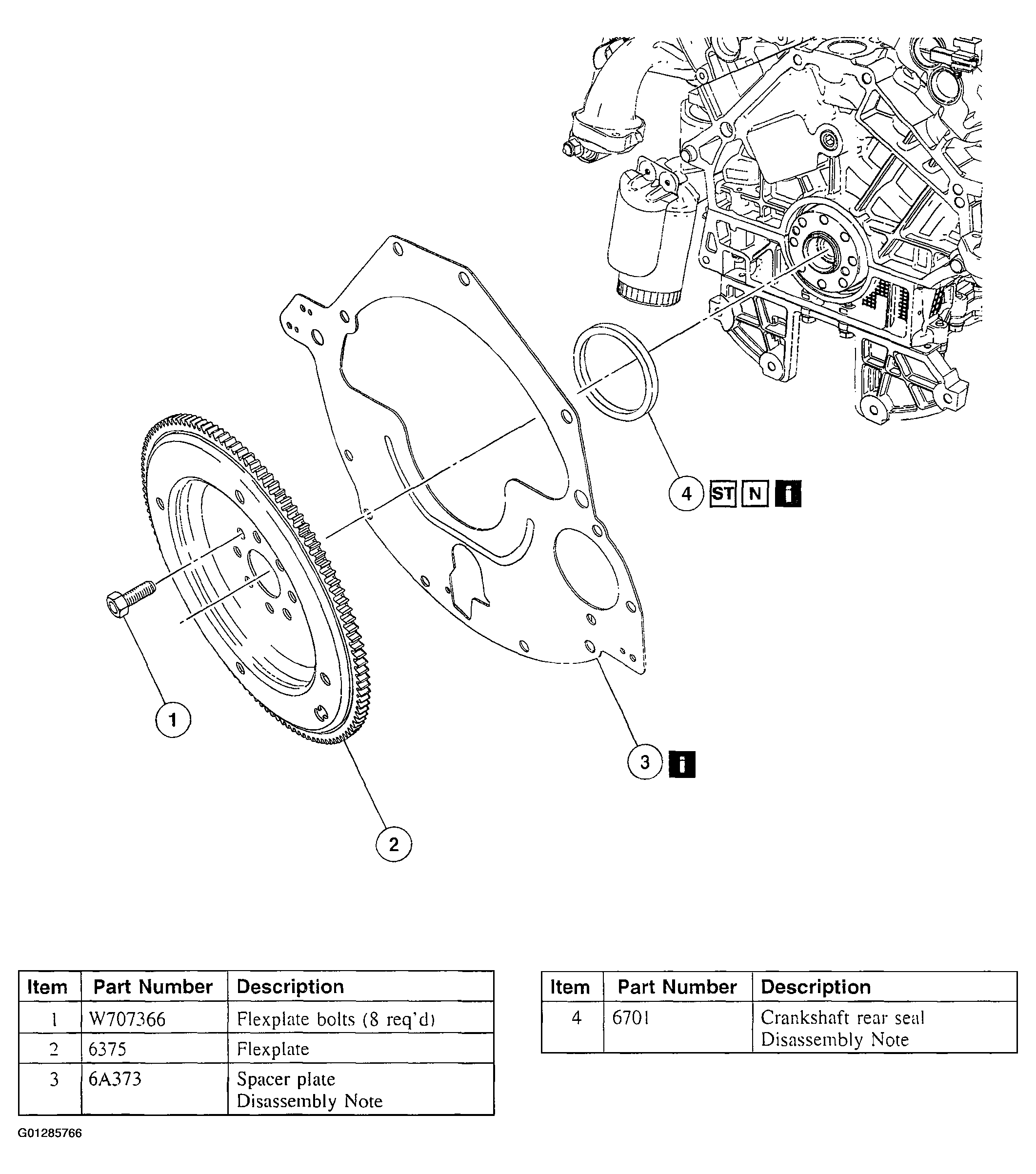

Fig 1: Removing Flexplate Bolts
Courtesy of FORD MOTOR CO.
Remove the components in the order indicated in the following illustration and table. Illustration 2 of 21.

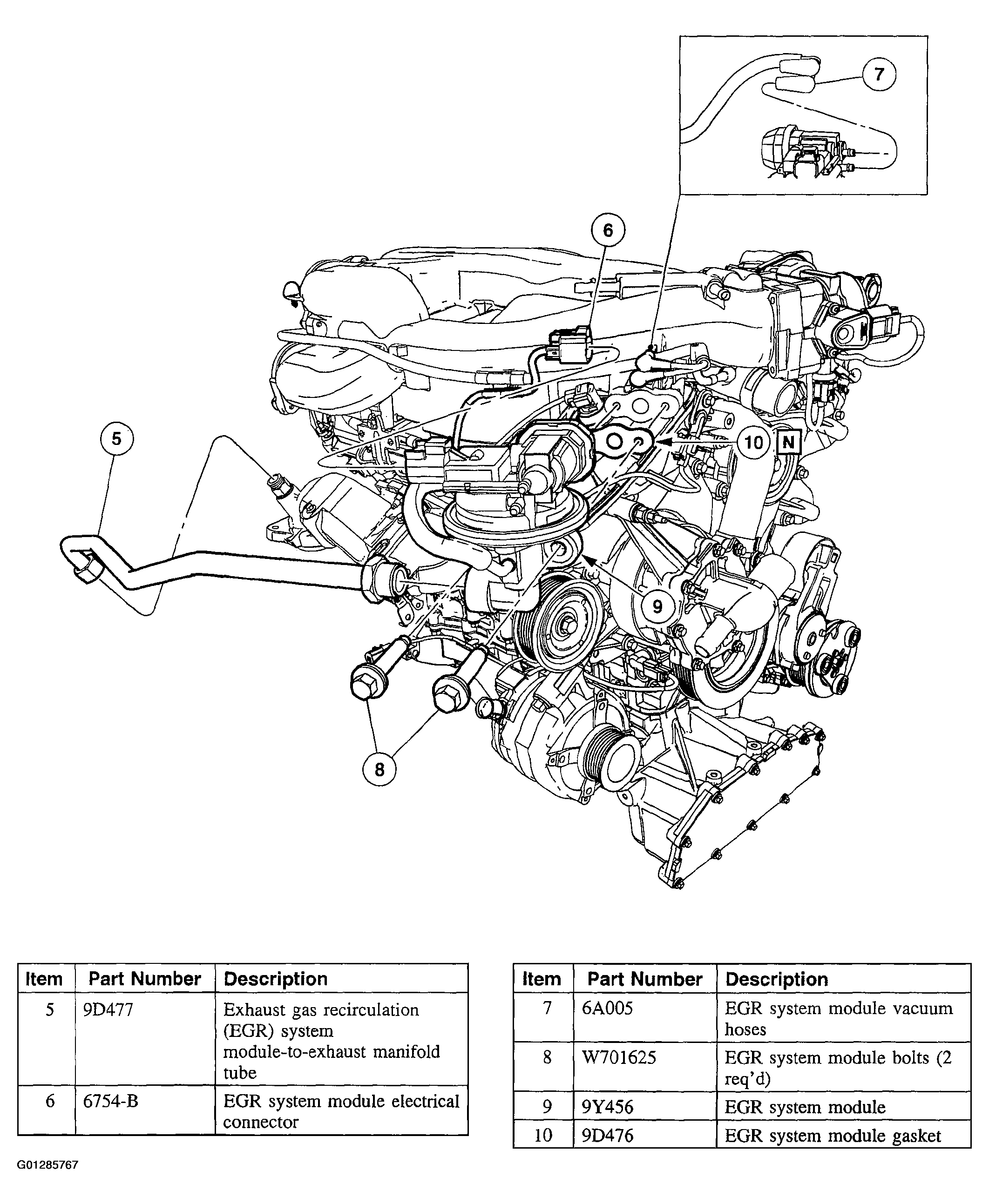

Fig 2: Removing EGR System Module Vacuum Hoses
Courtesy of FORD MOTOR CO.
Remove the components in the order indicated in the following illustration and table. Illustration 3 of 21.

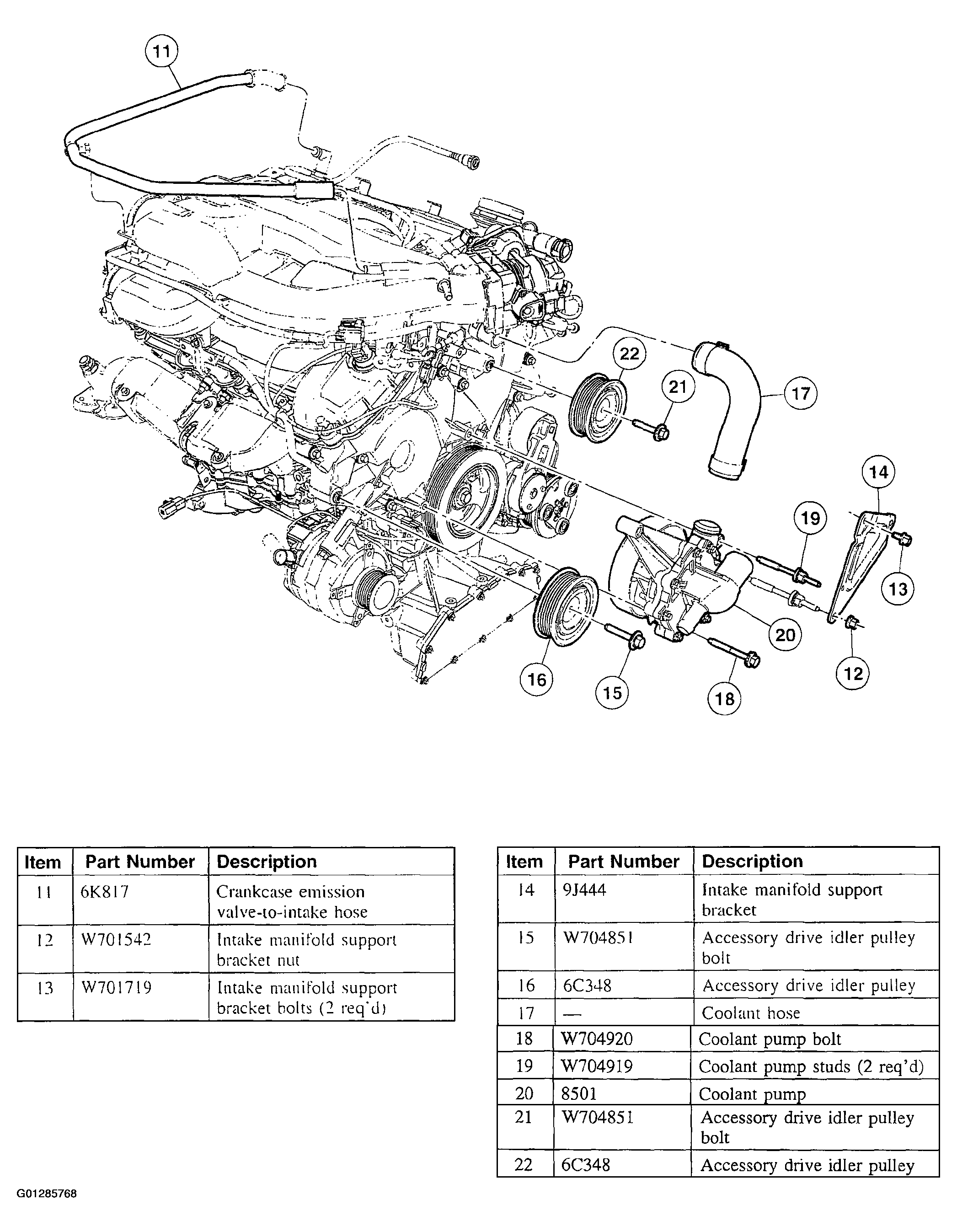

Fig 3: Removing Crankcase Emission Valve-To Intake Hose
Courtesy of FORD MOTOR CO.
Remove the components in the order indicated in the following illustration and table. Illustration 4 of 21.

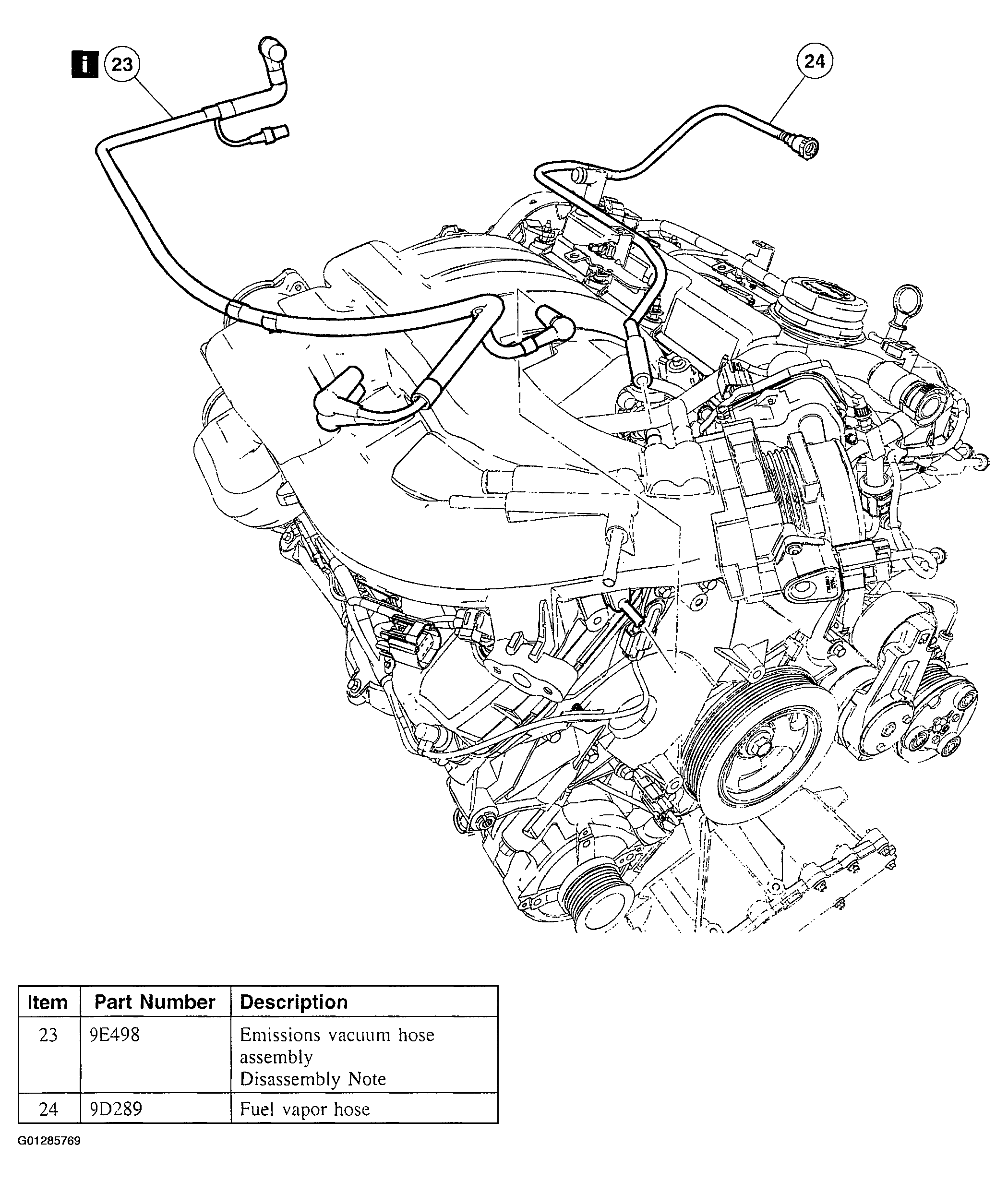

Fig 4: Removing Emission Vacuum Hose Assembly
Courtesy of FORD MOTOR CO.
Remove the components in the order indicated in the following illustration and table. Illustration 5 of 21.

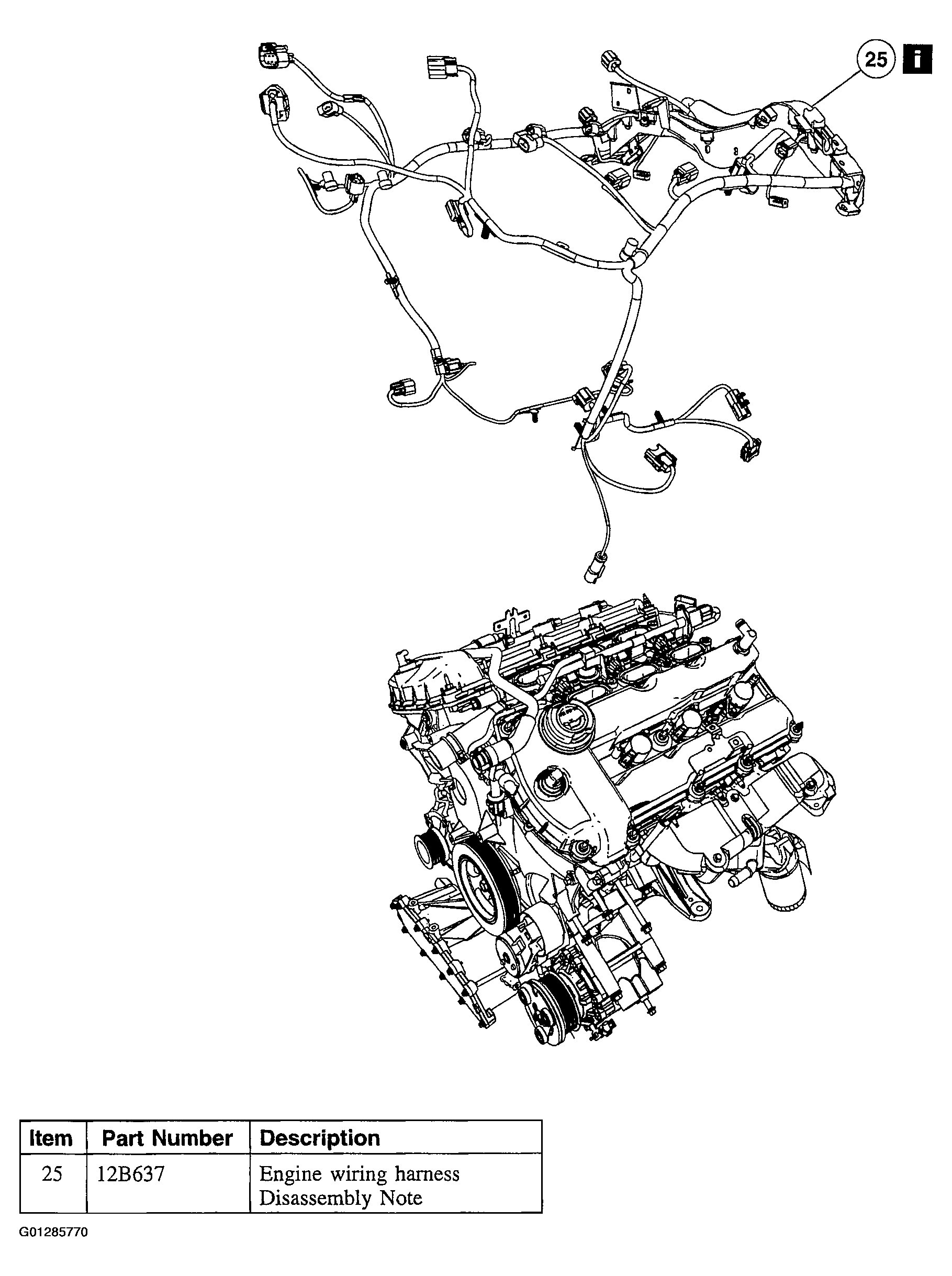

Fig 5: Removing Engine Wiring Harness
Courtesy of FORD MOTOR CO.
Remove the components in the order indicated in the following illustration and table. Illustration 6 of 21.

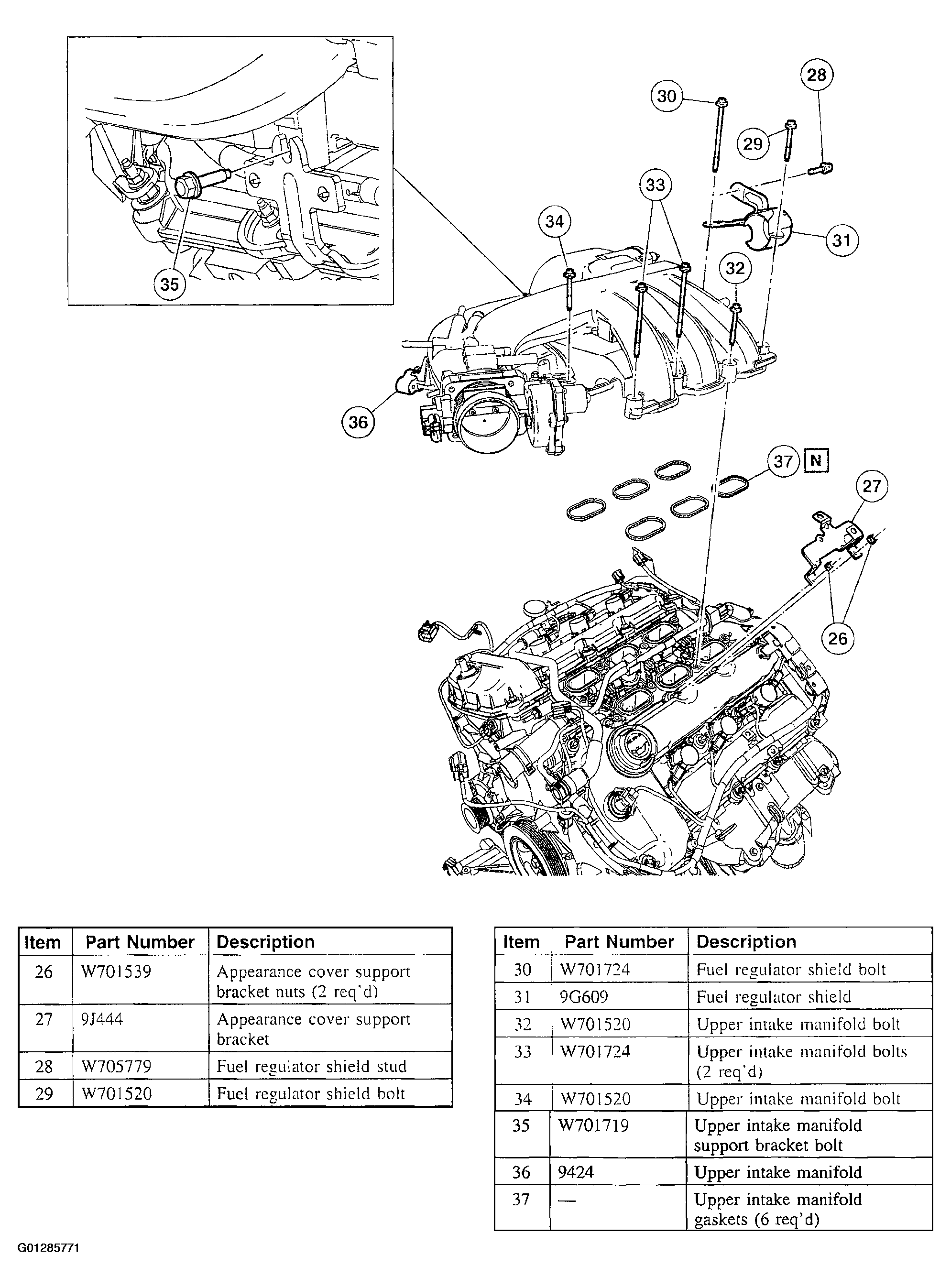

Fig 6: Removing Upper Intake Manifold Bolt
Courtesy of FORD MOTOR CO.
Remove the components in the order indicated in the following illustration and table. Illustration 7 of 21.

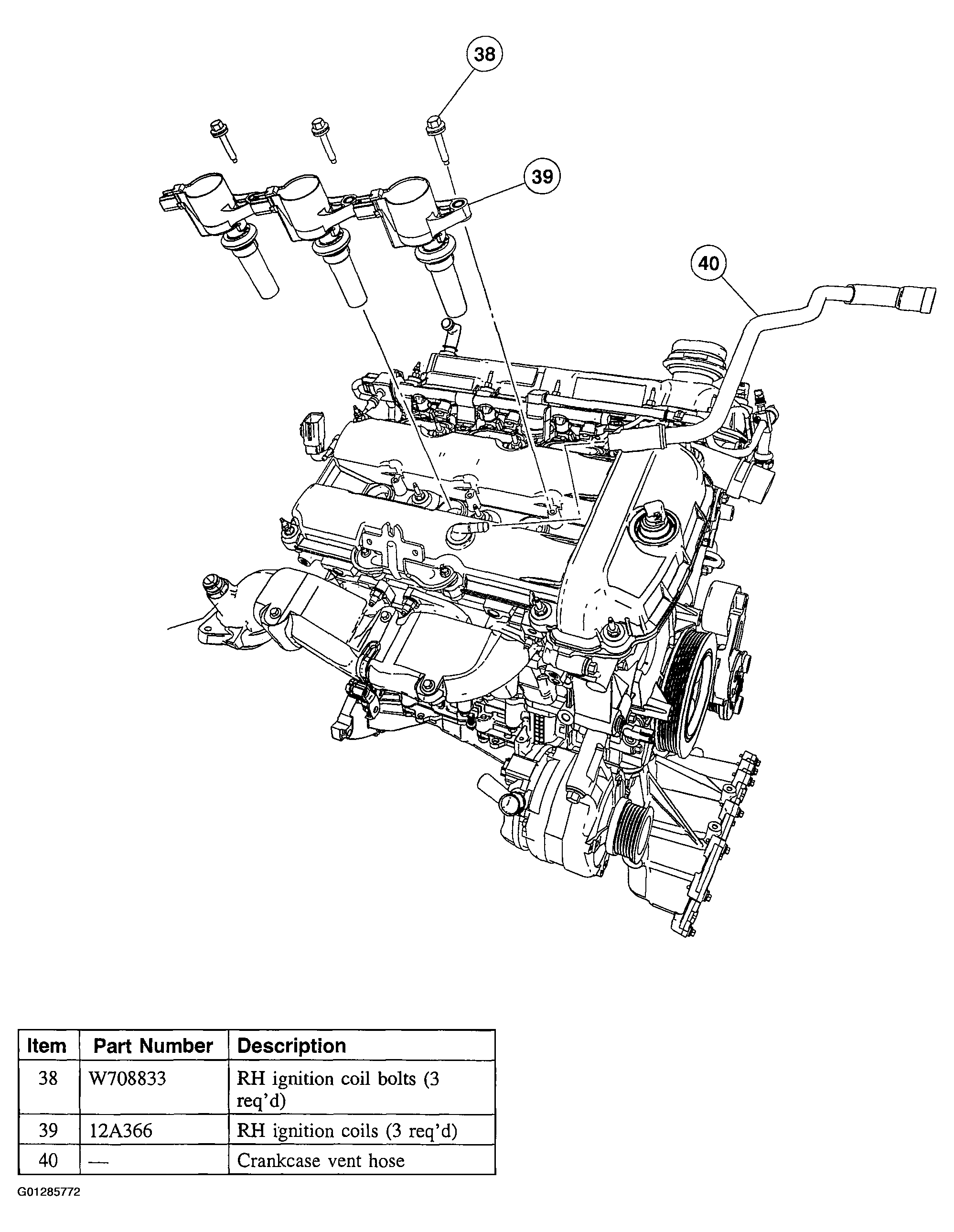

Fig 7: Removing RH Injection Coils
Courtesy of FORD MOTOR CO.
Remove the components in the order indicated in the following illustration and table. Illustration 8 of 21.

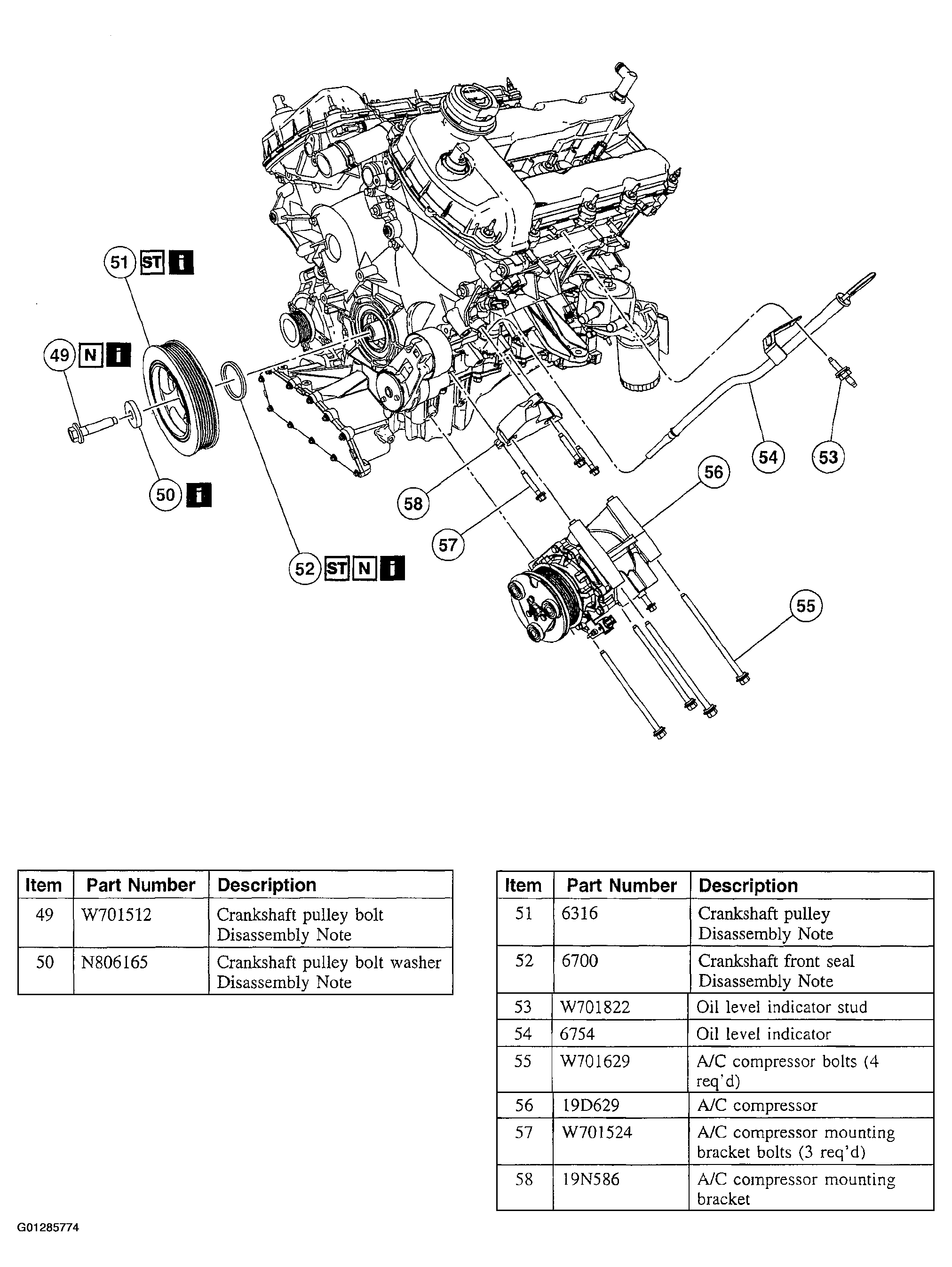

Fig 8: Removing LH Ignition Bolt
Courtesy of FORD MOTOR CO.
Remove the components in the order indicated in the following illustration and table. Illustration 9 of 21.

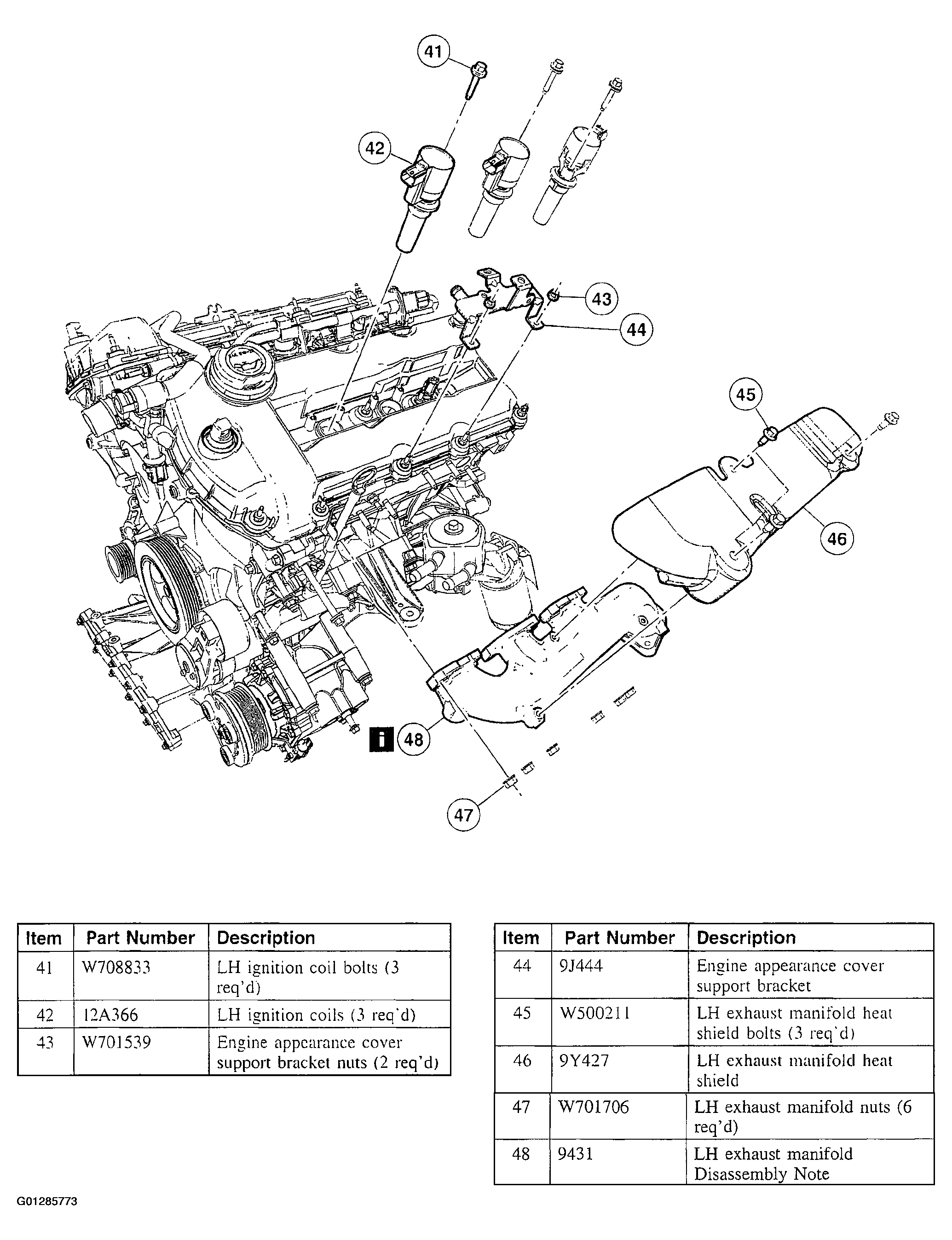

Fig 9: Removing LH Exhaust Manifold Nuts
Courtesy of FORD MOTOR CO.
Remove the components in the order indicated in the following illustration and table. Illustration 10 of 21.

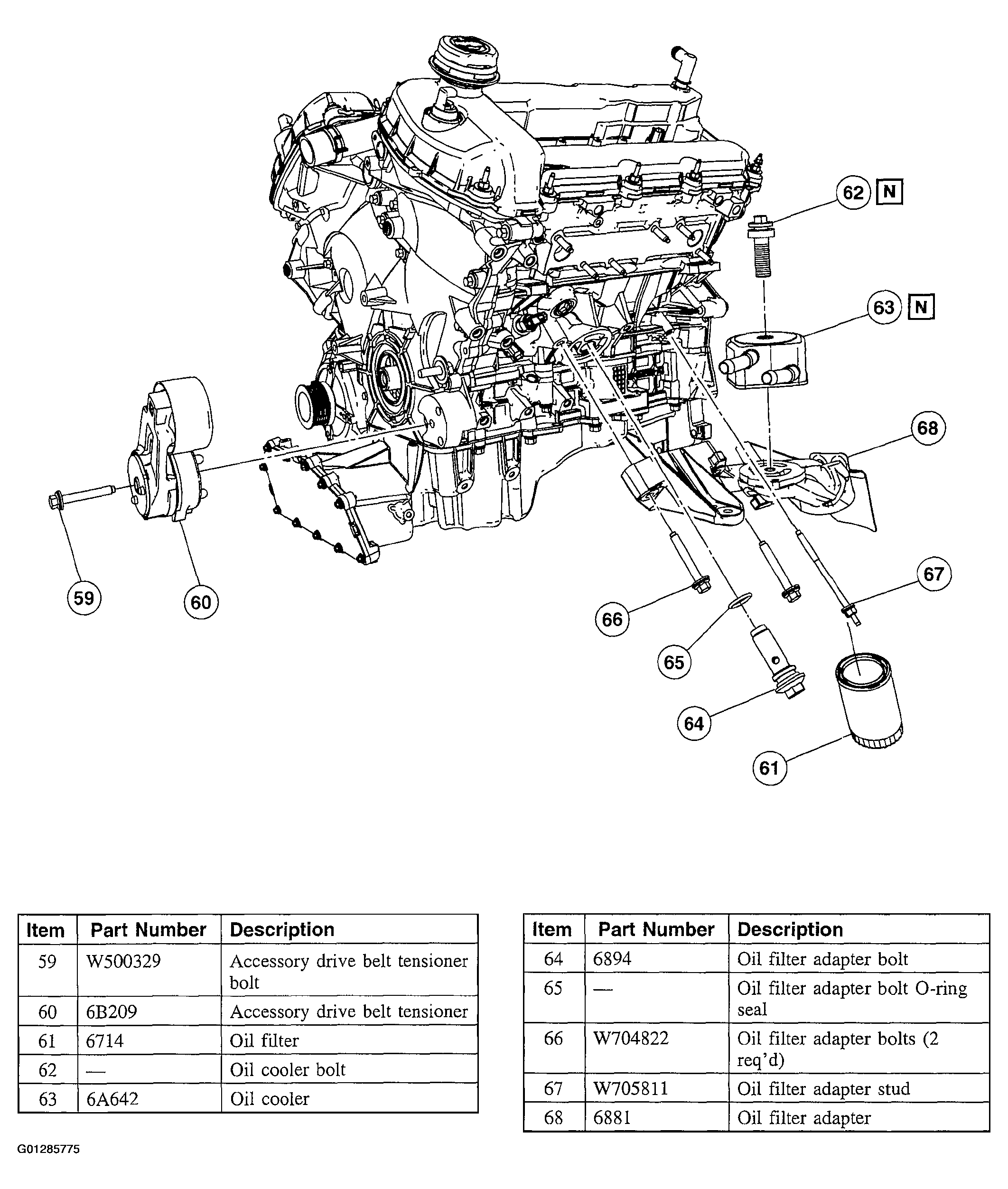

Fig 10: Removing Accessory Drive Belt Tensioner Bolt
Courtesy of FORD MOTOR CO.
Remove the components in the order indicated in the following illustration and table. Illustration 11 of 21.

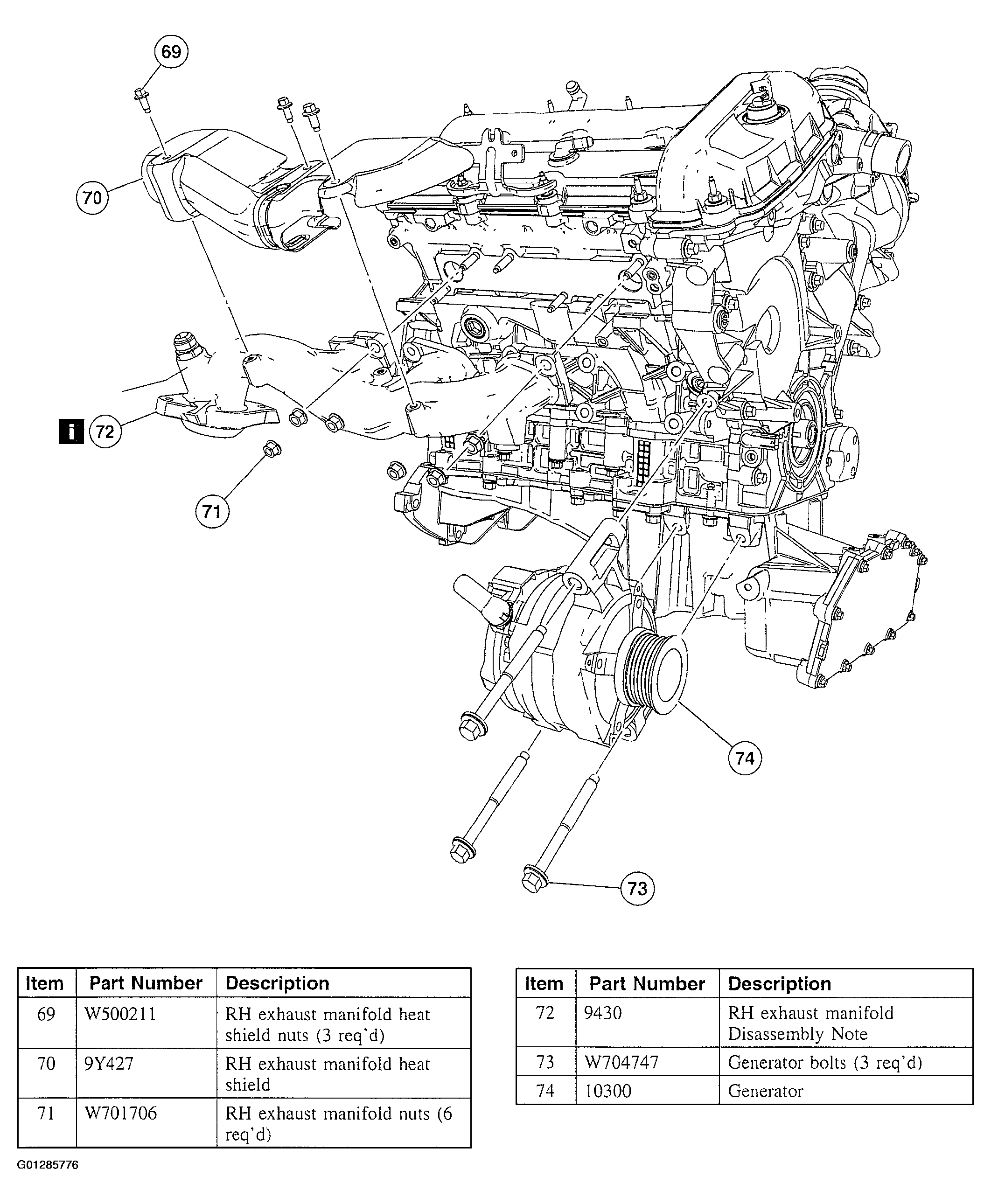

Fig 11: Removing RH Exhaust Manifold Heat Shield
Courtesy of FORD MOTOR CO.
Remove the components in the order indicated in the following illustration and table. Illustration 12 of 21.

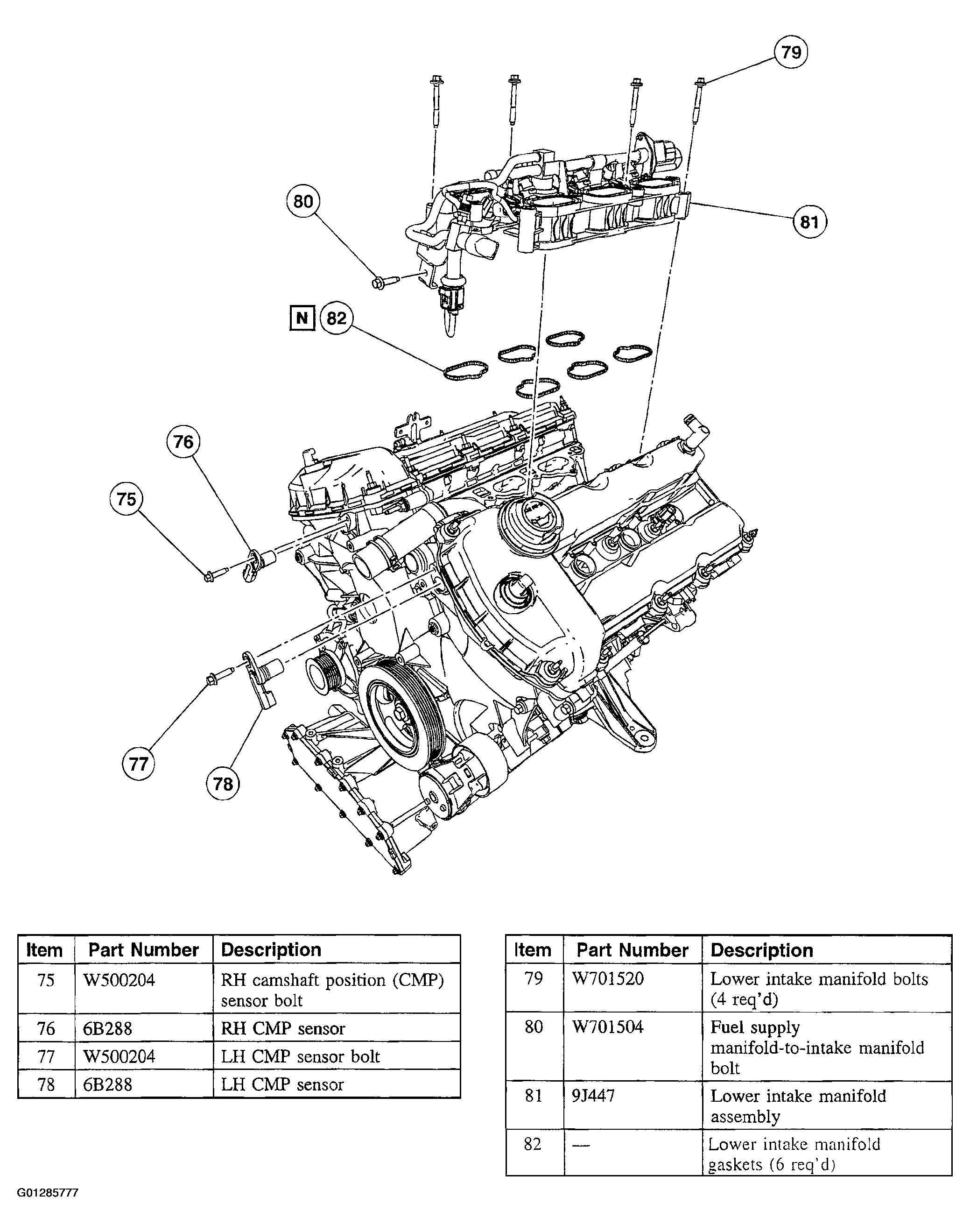

Fig 12: Removing RH CMP Sensor
Courtesy of FORD MOTOR CO.
Remove the components in the order indicated in the following illustration and table. Illustration 13 of 21.

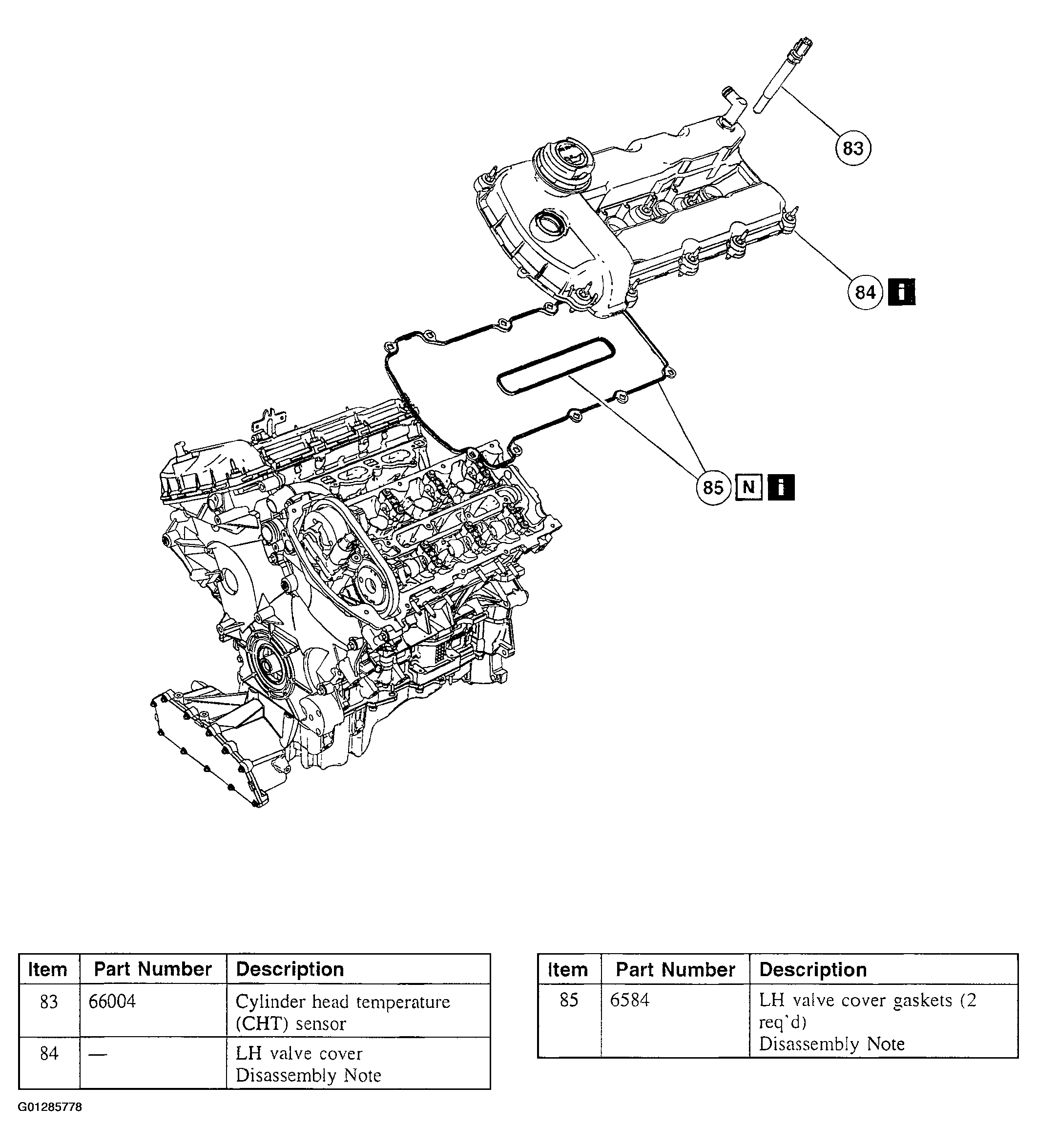

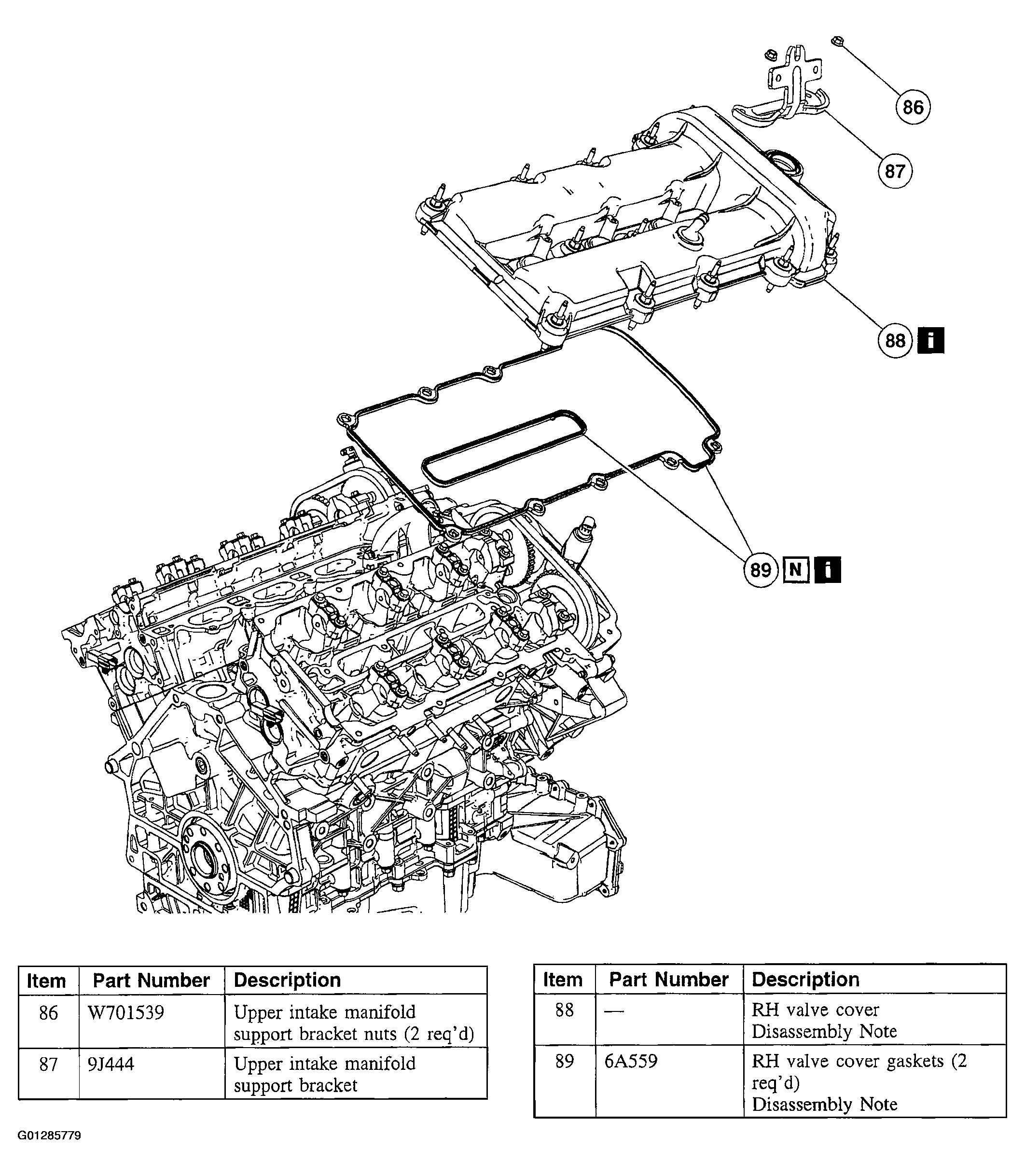

Fig 13: Removing Valve Cover Assembly
Courtesy of FORD MOTOR CO.
Remove the components in the order indicated in the following illustration and table. Illustration 14 of 21.

Fig 14: Removing Upper Intake Manifold Support Cover
Courtesy of FORD MOTOR CO.
Remove the components in the order indicated in the following illustration and table. Illustration 15 of 21.

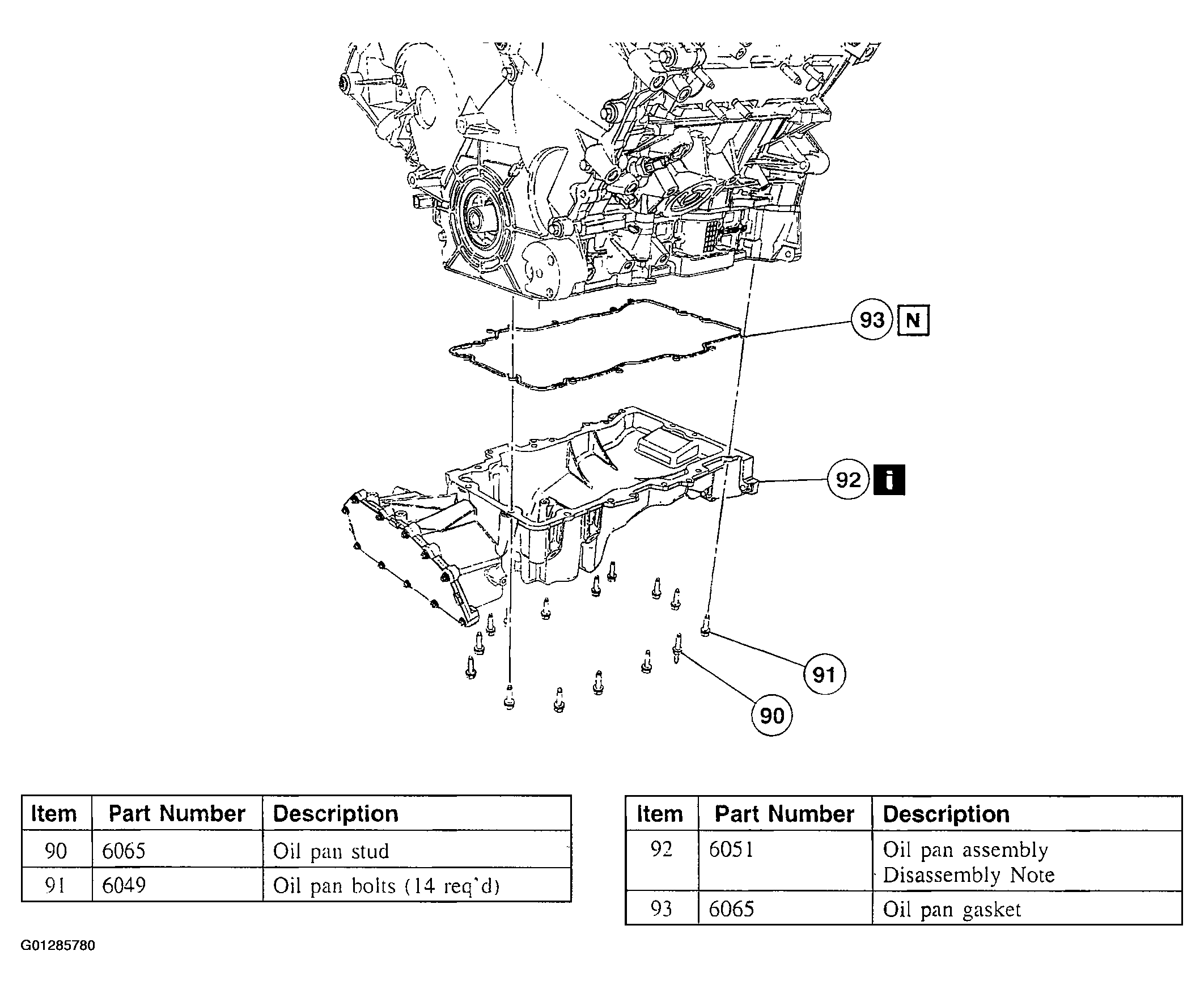

Fig 15: Removing Oil Sump Bolt
Courtesy of FORD MOTOR CO.
Remove the components in the order indicated in the following illustration and table. Illustration 16 of 21.

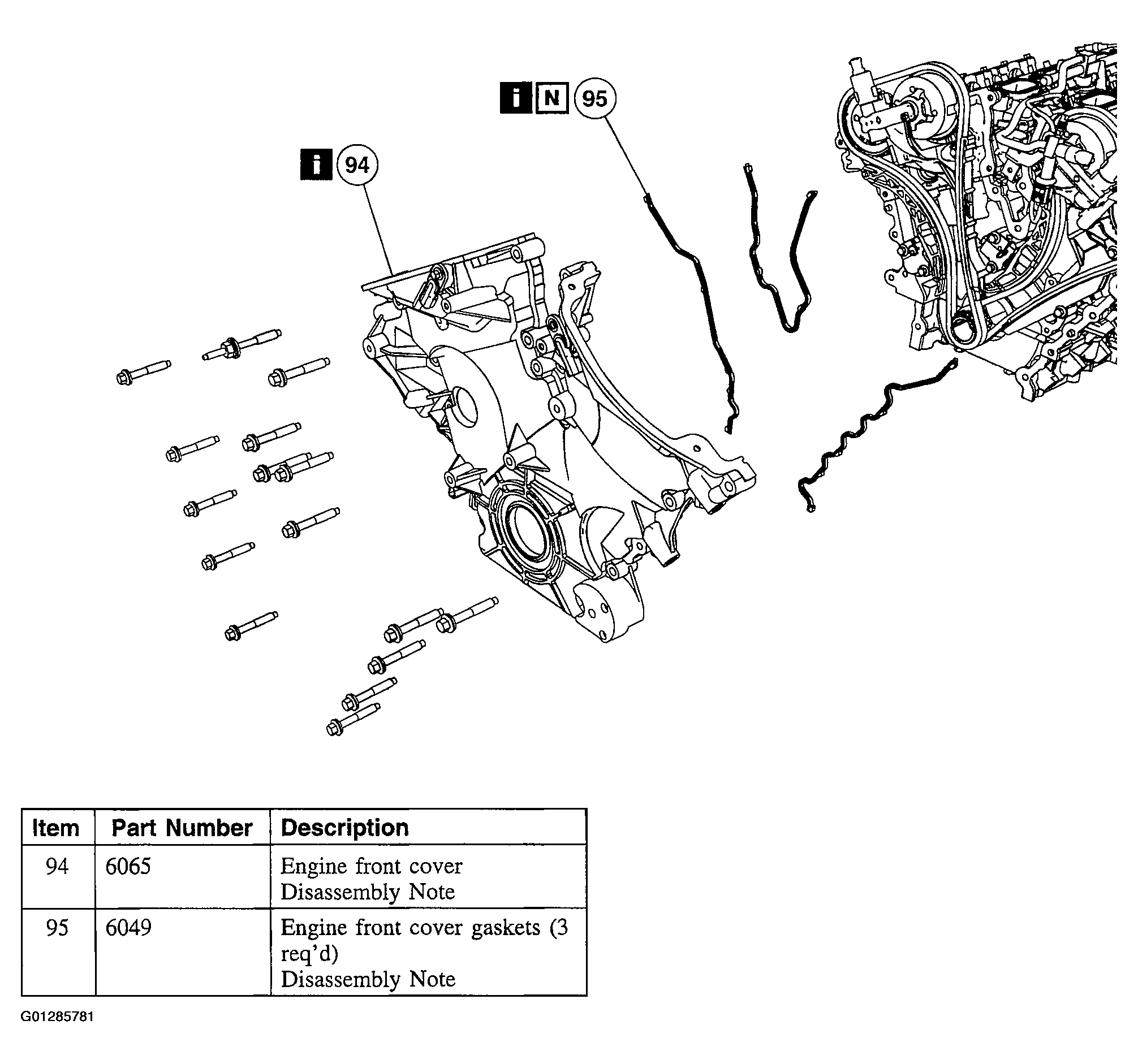

Fig 16: Identifying Timing Chain
Courtesy of FORD MOTOR CO.
Remove the components in the order indicated in the following illustration and table. Illustration 17 of 21.

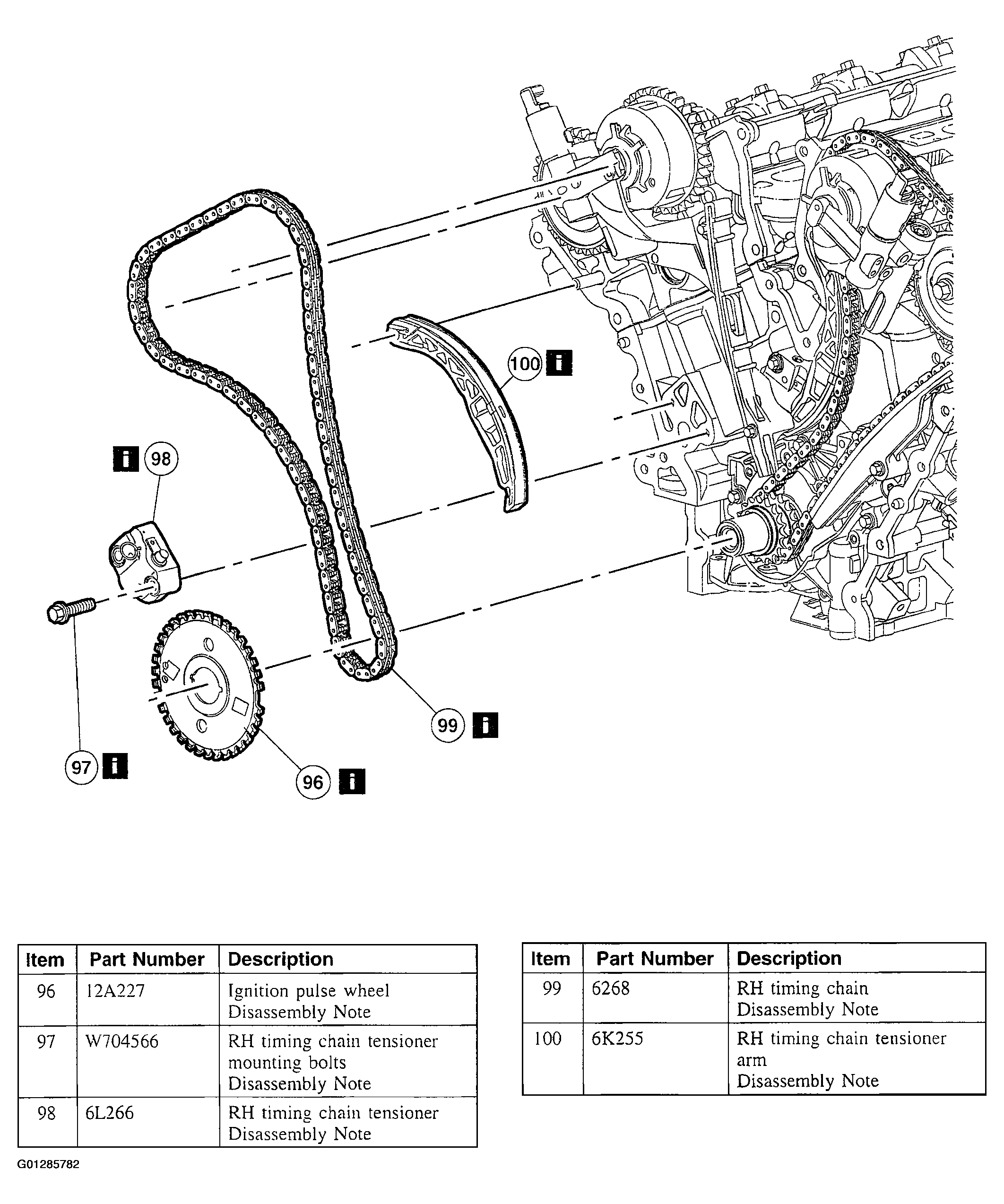

Fig 17: Identifying Timing Chain Assembly
Courtesy of FORD MOTOR CO.
Remove the components in the order indicated in the following illustration and table. Illustration 18 of 21.

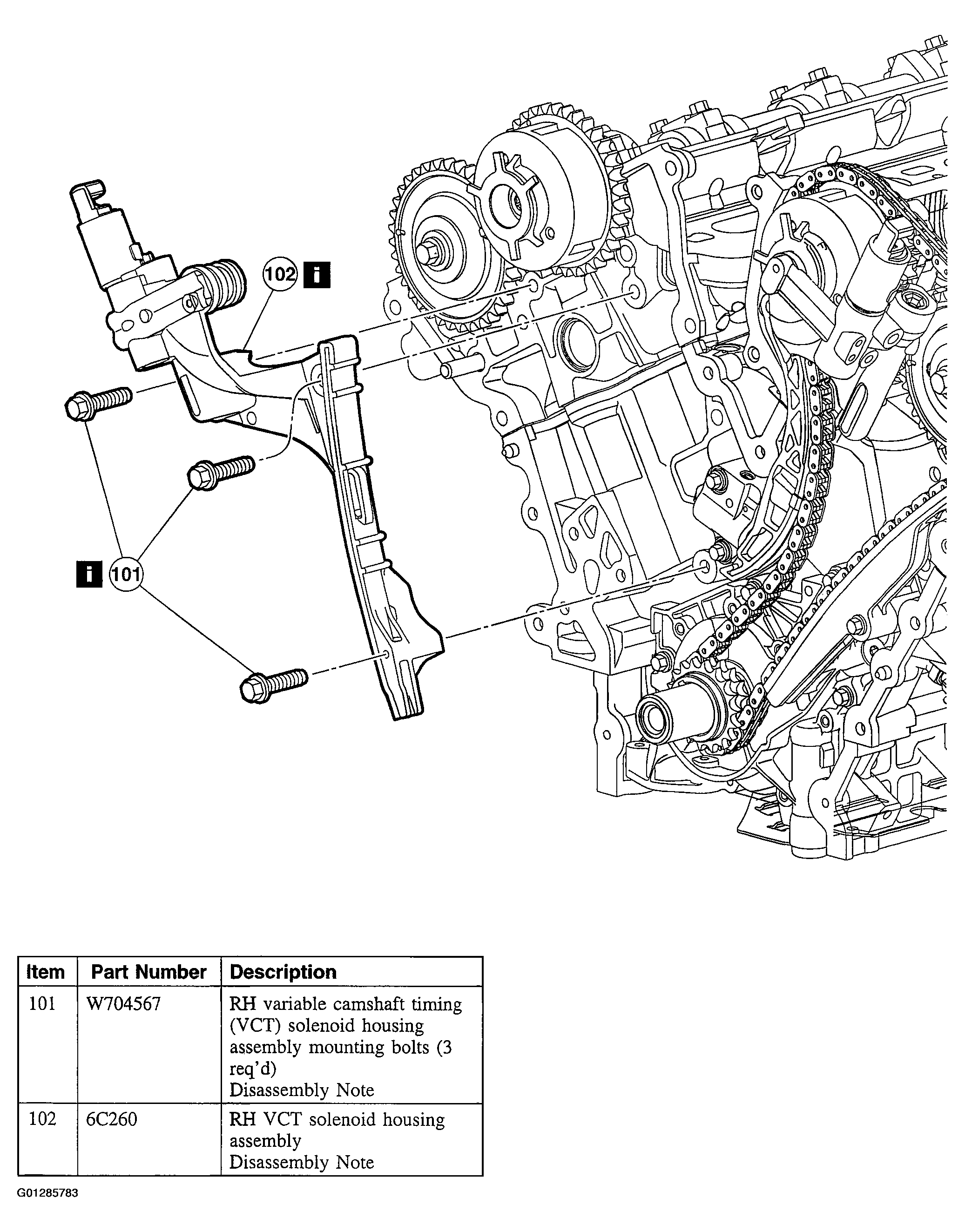

Fig 18: Removing RH Variable Camshaft Timing Solenoid Switch
Courtesy of FORD MOTOR CO.
Remove the components in the order indicated in the following illustration and table. Illustration 19 of 21.

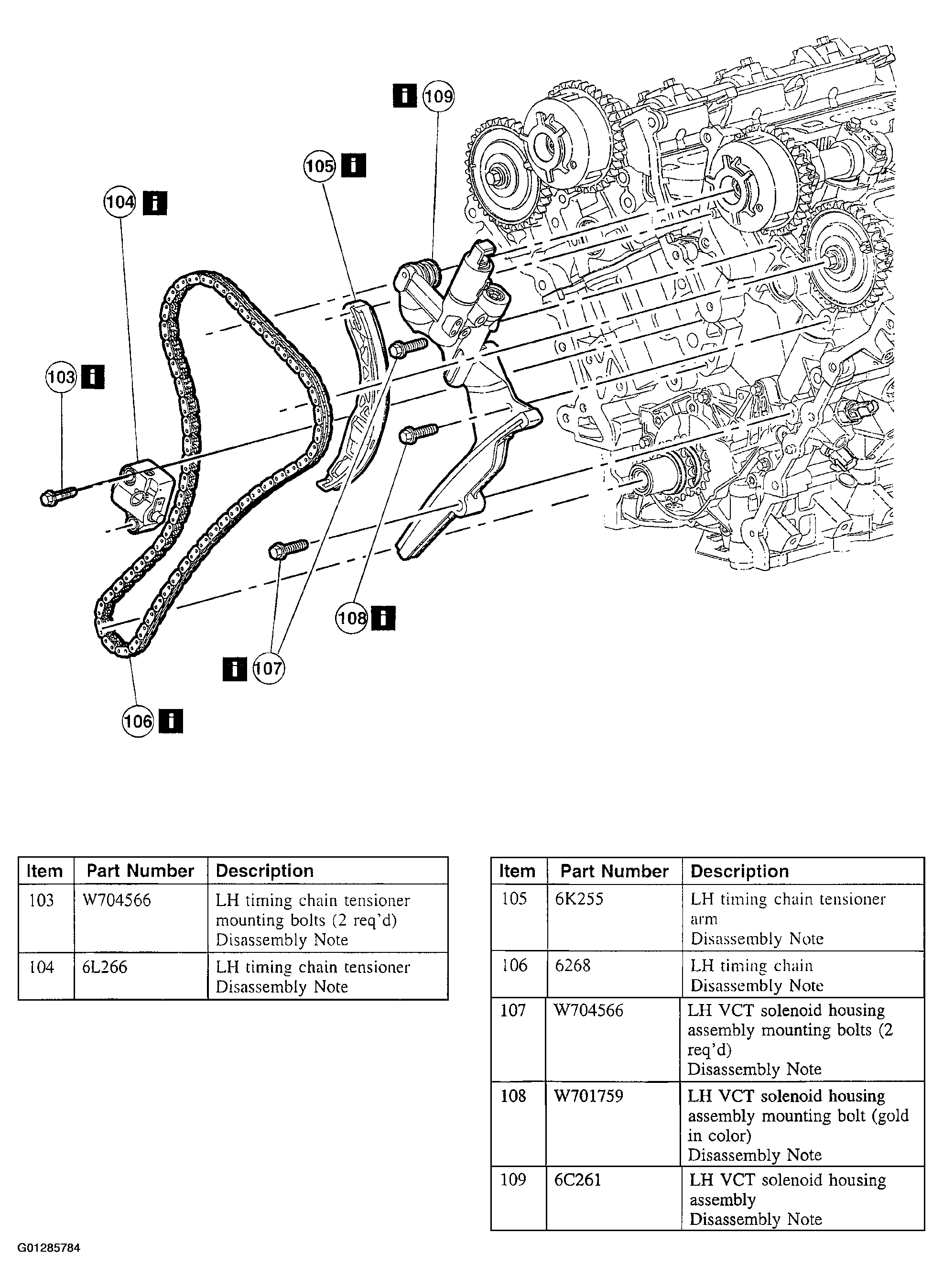

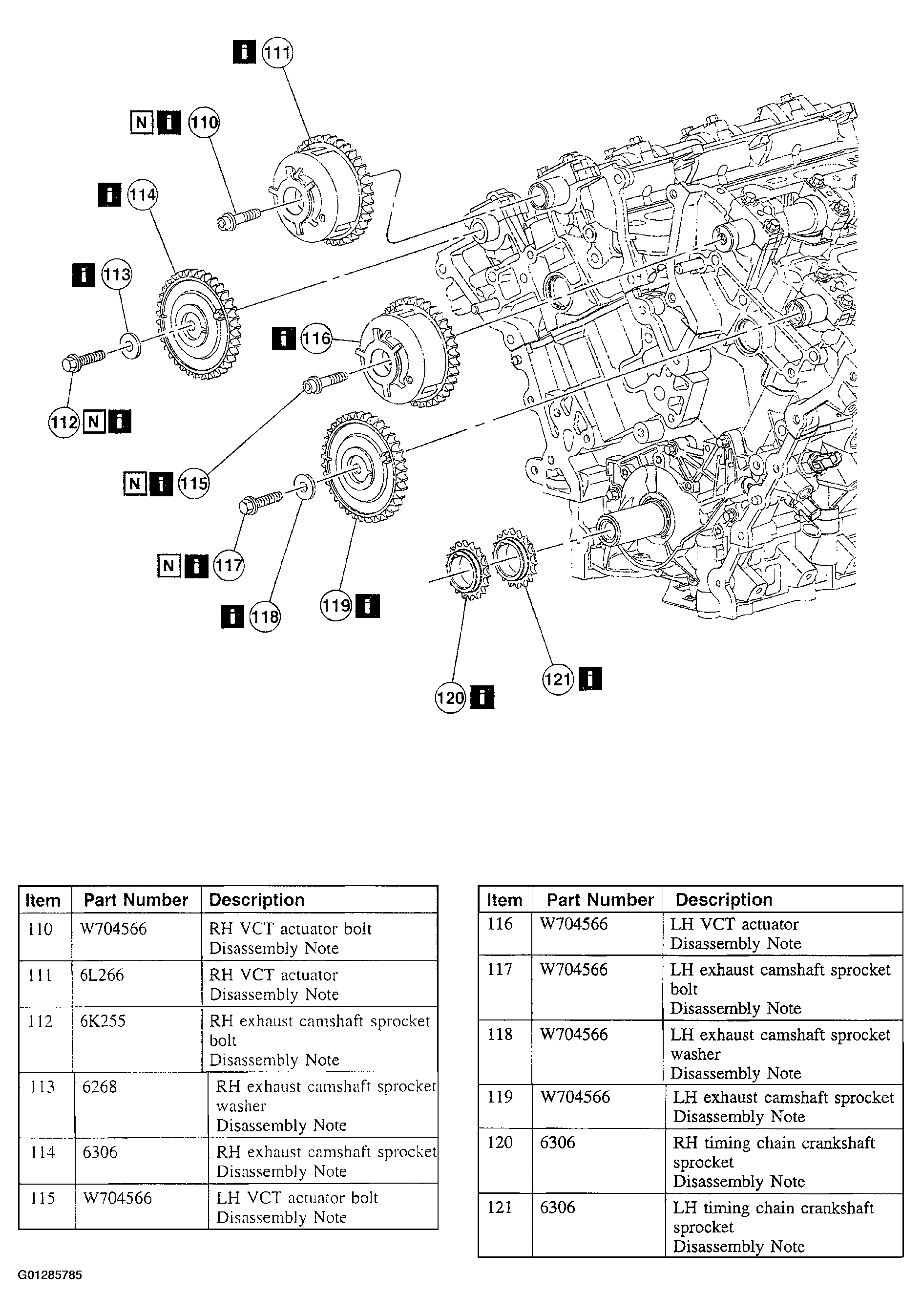

Fig 19: Removing LH Timing Chain Tensioner
Courtesy of FORD MOTOR CO.
Illustration 20 of 21. Remove the components in the order indicated in the following illustration and table.

Fig 20: Removing RH VCT Actuator Bolt
Courtesy of FORD MOTOR CO.
Remove the components in the order indicated in the following illustration and table. Illustration 21 of 21.

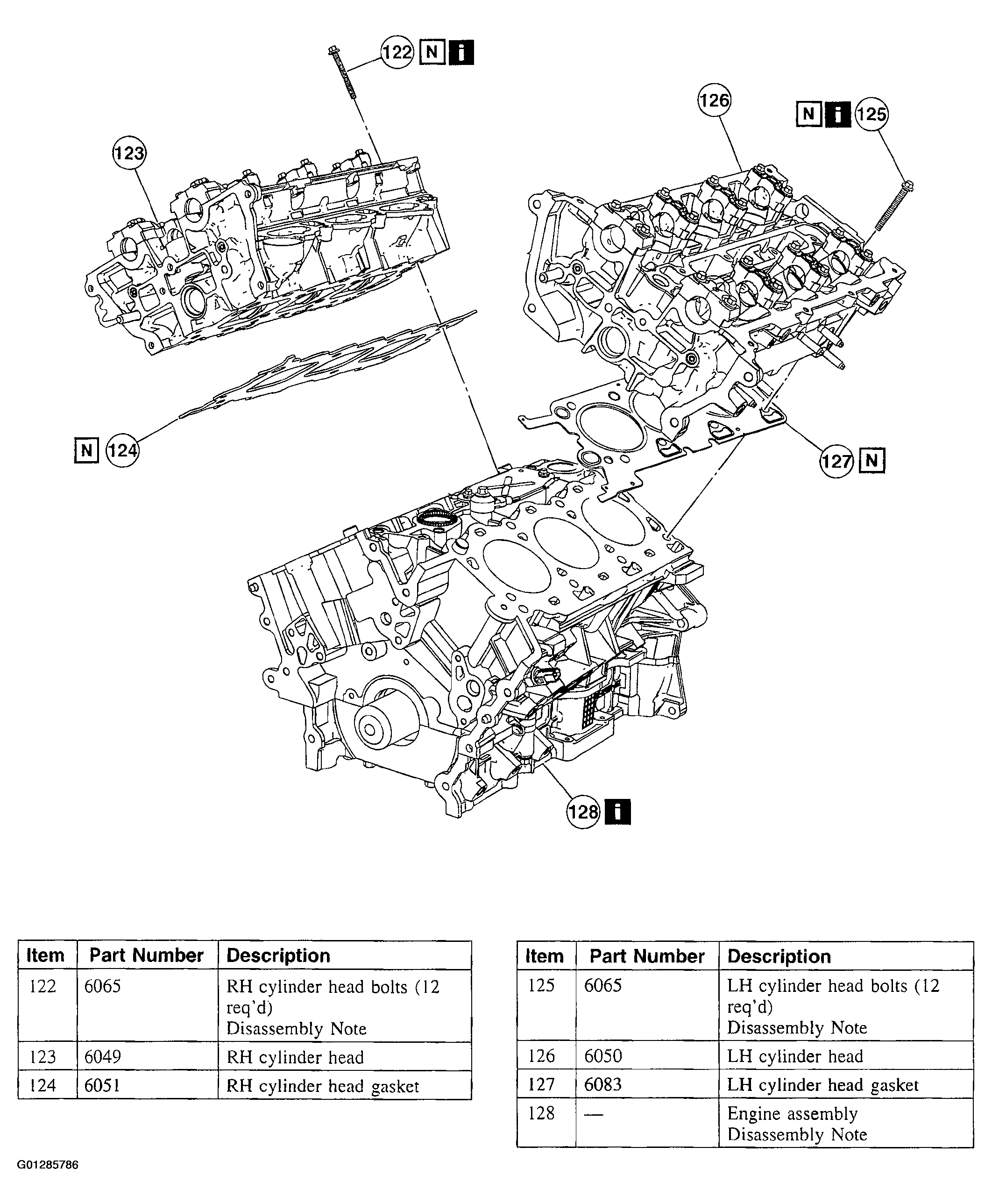

Fig 21: Removing RH Cylinder Head Bolt
Courtesy of FORD MOTOR CO.
