Digital Transmission Range (TR) Sensor Connector

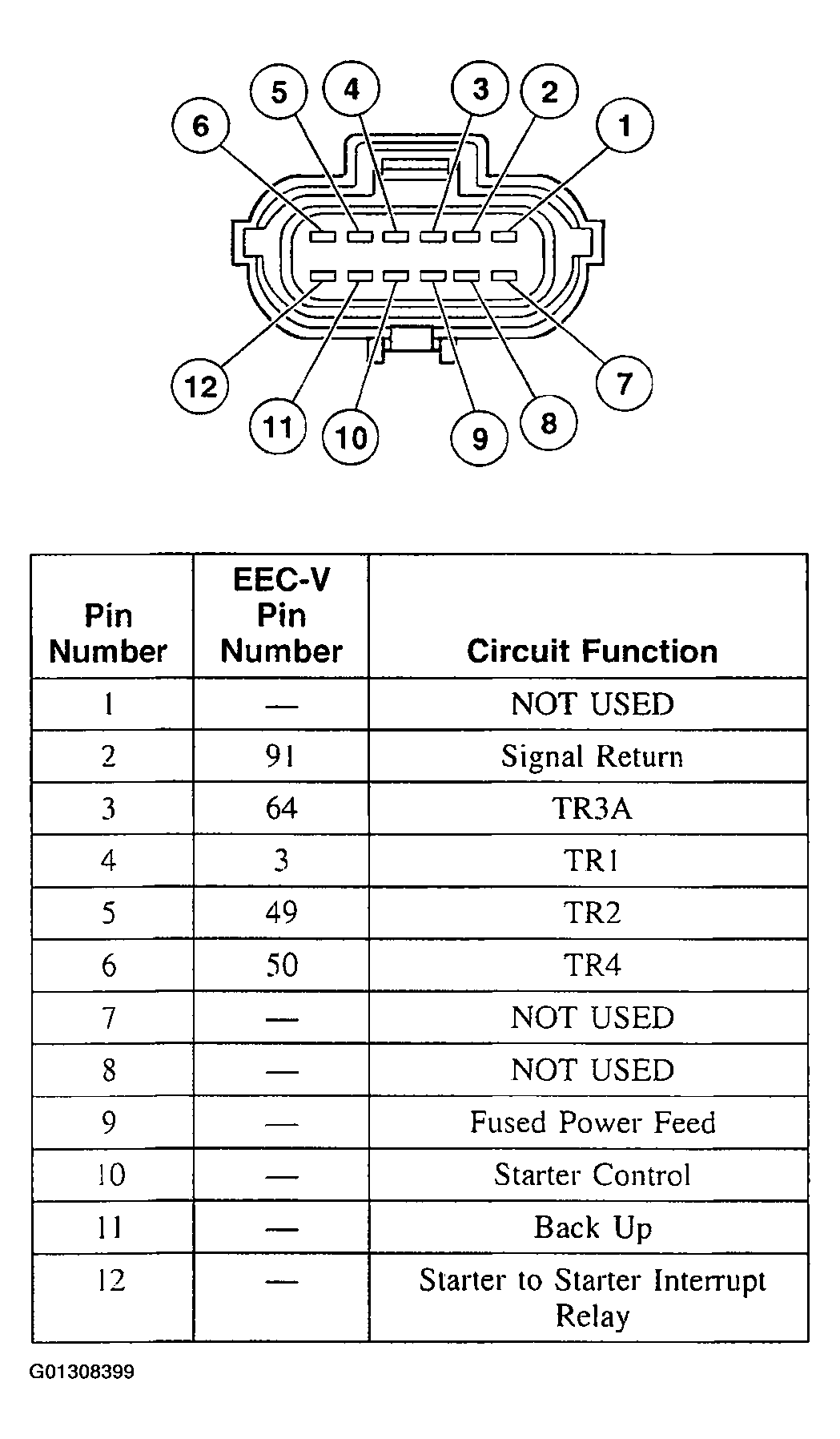

Fig 1: Identifying Digital Transmission Range Sensor Connector Terminals
G01308399Courtesy of FORD MOTOR CO.
