Pinpoint Test E: The Remote Keyless Entry (RKE) Module Does Not Respond To The Diagnostic Tool
WARNING: This page is about a different car, the 2002 Ford Windstar. However, it is still accessible from the selected car via links, so may be relevant.

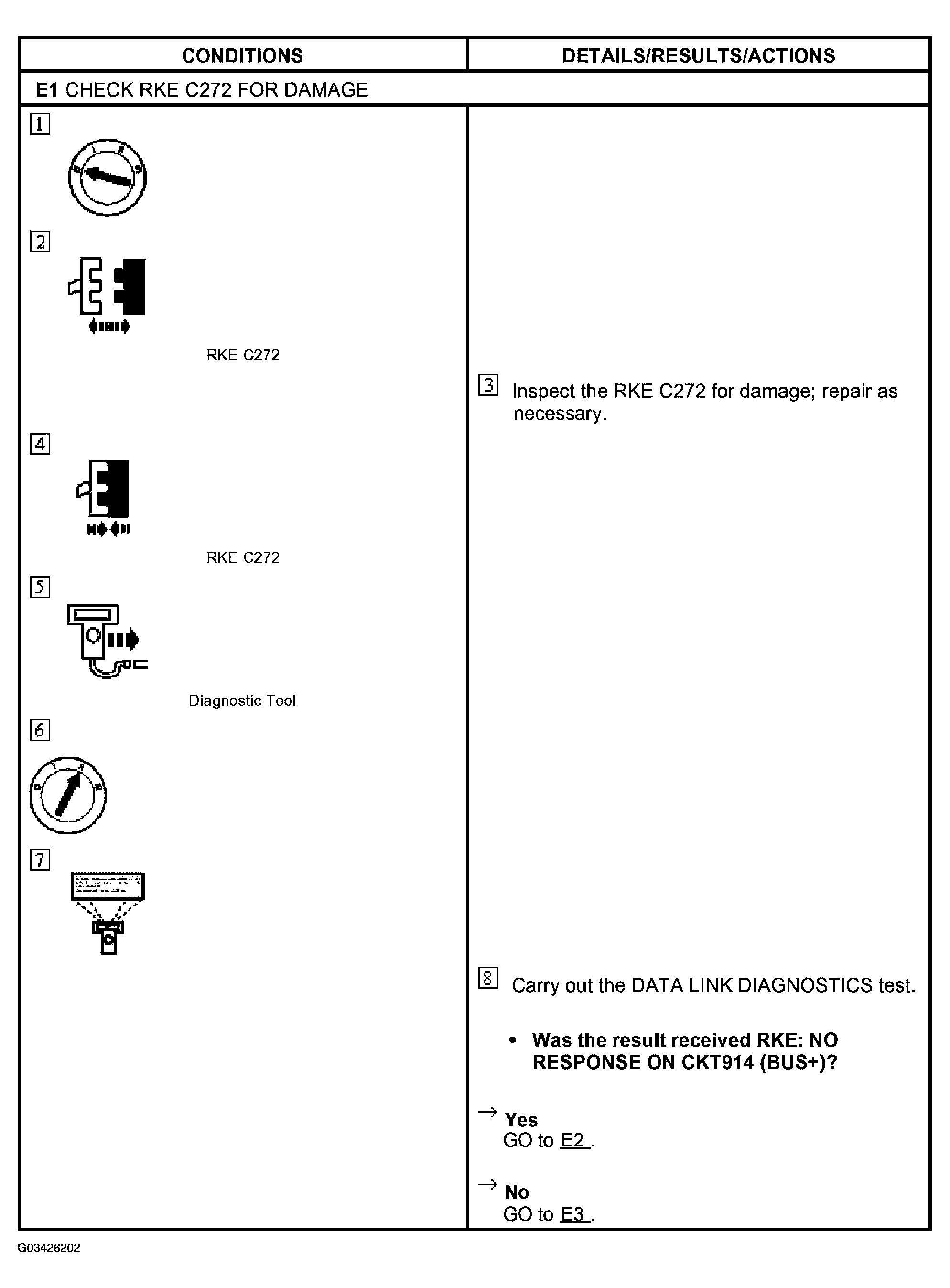

Fig 1: Pinpoint Test E Chart - Remote Keyless Entry Module Does Not Respond To Diagnostic Tool (E1)
Courtesy of FORD MOTOR CO.

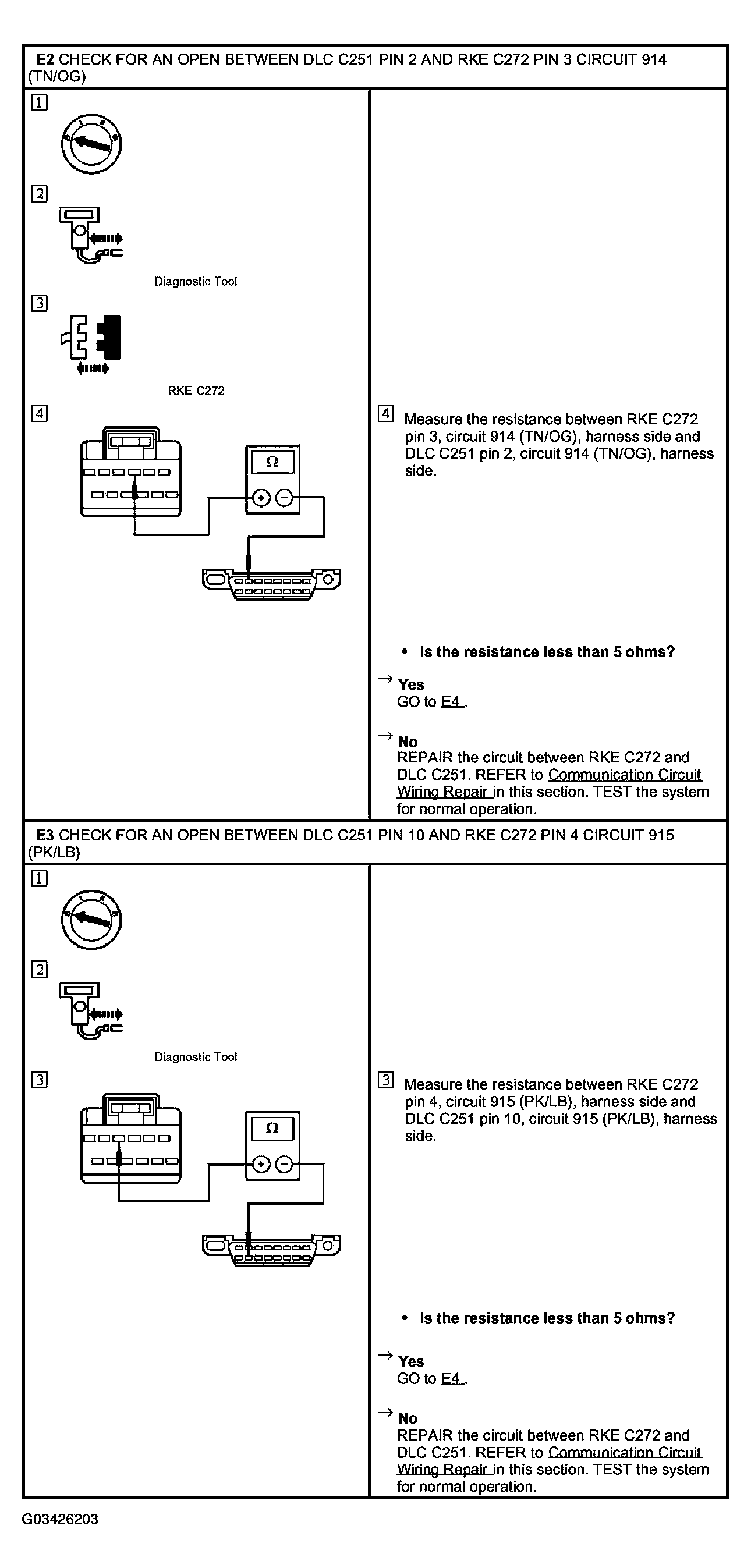

Fig 2: Pinpoint Test E Chart - Remote Keyless Entry Module Does Not Respond To Diagnostic Tool (E2 & E3)
Courtesy of FORD MOTOR CO.
Fig 3: Pinpoint Test E Chart - Remote Keyless Entry Module Does Not Respond To Diagnostic Tool (E4)
