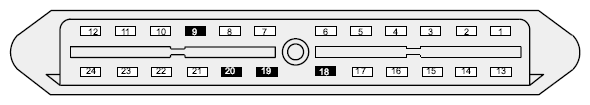

| 1 |
728 (GN/YE) |
Cooling Fan Motor |
| 2 |
728 (GN/YE) |
Cooling Fan Motor |
| 3 |
10 (BK/OG) |
Power (Hot at All Times) |
| 4 |
10 (BK/OG) |
Power (Hot at All Times) |
| 5 |
102 (BK/PK) |
Fuel Pump Output |
| 6 |
711 (YE) |
Cooling Fan Motor (High Speed) |
| 7 |
711 (YE) |
Cooling Fan Motor (High Speed) |
| 8 |
9 (WH/GN) |
Power (Hot at All Times) |
| 9 |
- |
NOT USED |
| 10 |
9 (WH/GN) |
Power (Hot at All Times) |
| 11 |
15 (BU/YE) |
Power (Hot at All Times) |
| 12 |
100 (RD/WH) |
PCM Relay Control Line |
| 13 |
60 (BK/WH) |
Power (Hot in Start or Run) |
| 14 |
719 (PK/WH) |
LFC Relay Control |
| 15 |
999 (BK/YE) |
Ground |
| 16 |
732 (RD) |
A/C Clutch Coil Ground |
| 17 |
866 (RD/BK) |
HFC Relay Control |
| 18 |
- |
NOT USED |
| 19 |
- |
NOT USED |
| 20 |
- |
NOT USED |
| 21 |
710 (WH) |
Powertrain Control Module (PCM) |
| 22 |
702 (BU/BK) |
Powertrain Control Module (PCM) |
| 23 |
731 (BU/WH) |
A/C Clutch Coil Field |
| 24 |
101 (WH/RD) |
PCM Relay Control Line |
