Item 23: Fuel Delivery Module Lock Ring Installation Note

WARNING: This page is about a different car, the 2003 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

Using the special tool, install the fuel delivery module lock ring.

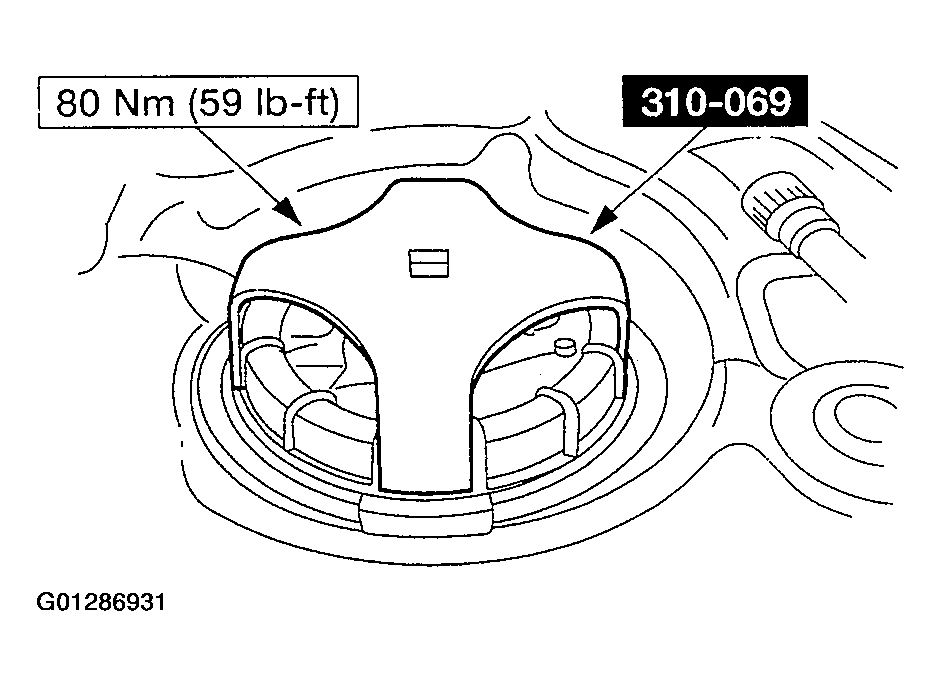

Fig 1: Installing Fuel Delivery Module Lock Ring
Courtesy of FORD MOTOR CO.
