Fluid Pump Assembly: Notes

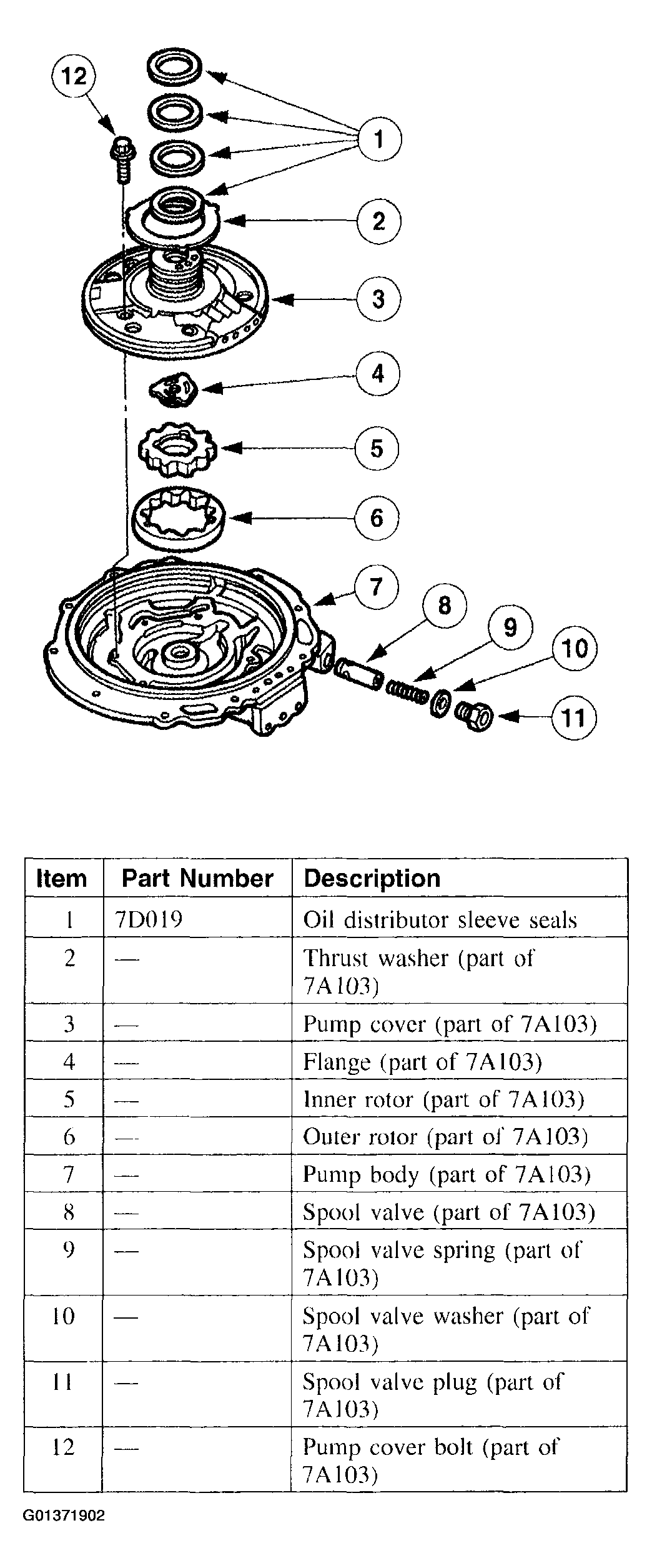

Fig 1: Exploded View Of Fluid Pump Assembly

G01371902

Courtesy of FORD MOTOR CO.
