Line Pressure Specification Chart

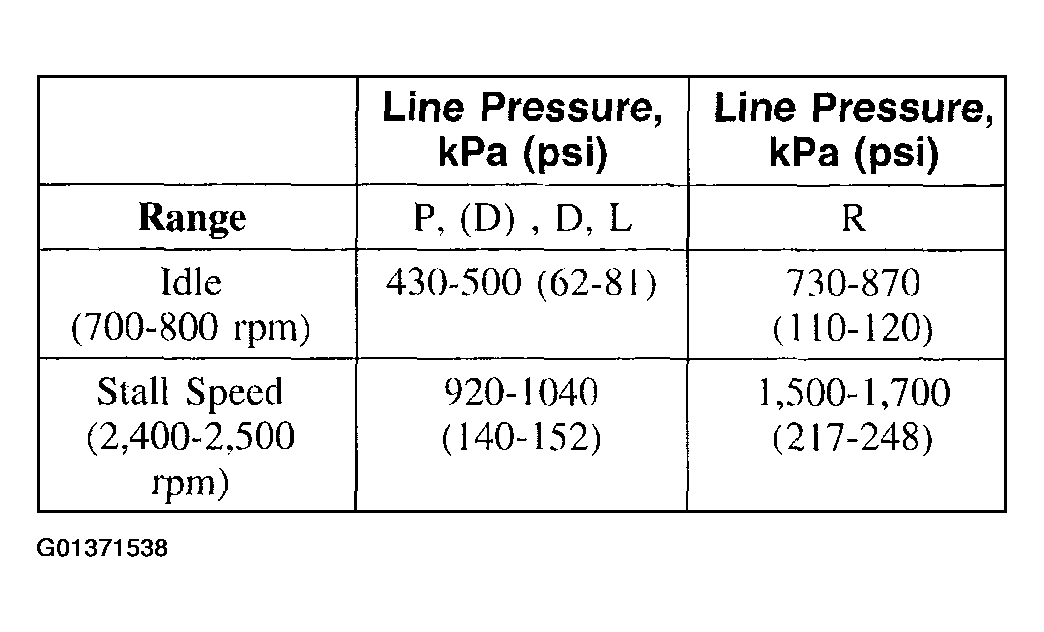

Fig 1: Line Pressure Specification Chart
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
