Removal & Installation (A/T)

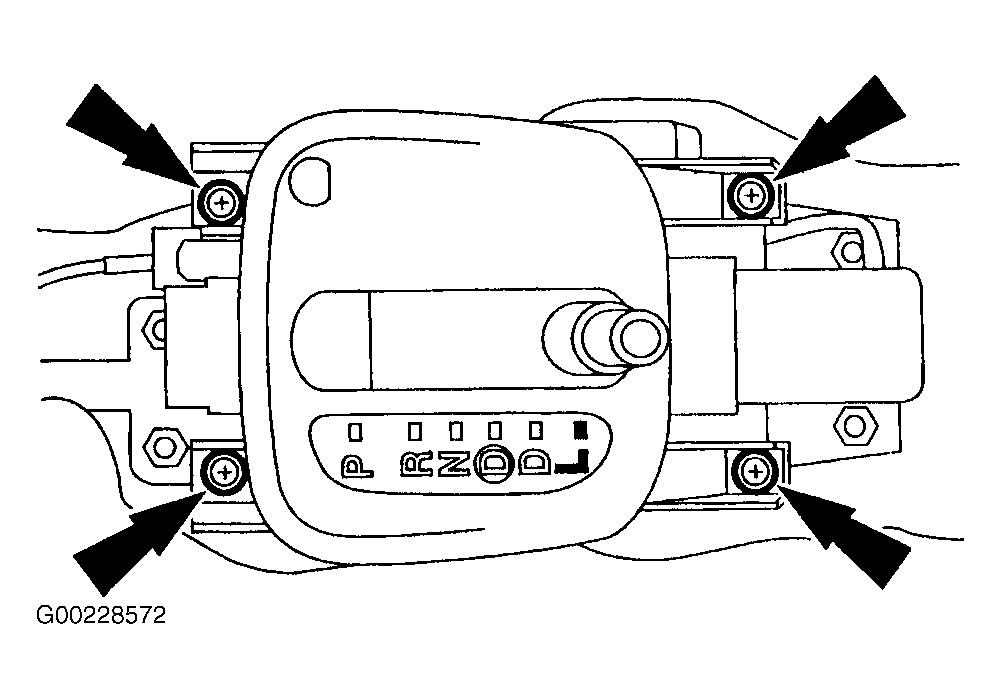

Disconnect negative battery cable. Remove parking brake and shifter consoles. Place gearshift lever in Low and remove shift indicator plate screws and turn shift indicator plate one quarter turn counterclockwise. See Fig 1. Loosen PCM connector retaining bolt, located in center of instrument panel, below center console. Slide PCM out. See Fig 2. To install, reverse removal procedure. Ensure anti-rattle clips are correctly aligned when installing PCM.
