Crankshaft Pulley: Removal

  1. Remove the splash shield - front fender. Refer to SPLASH SHIELD--FRONT FENDER .
  2. Loosen the bolt retaining the crankshaft pulley.
  3. Remove the drive belt (8620). Refer to ACCESSORY DRIVE BELT .
  4. Raise the vehicle. Refer to JACKING & HOISTING .
  5. Remove the bolts and the splash shield.

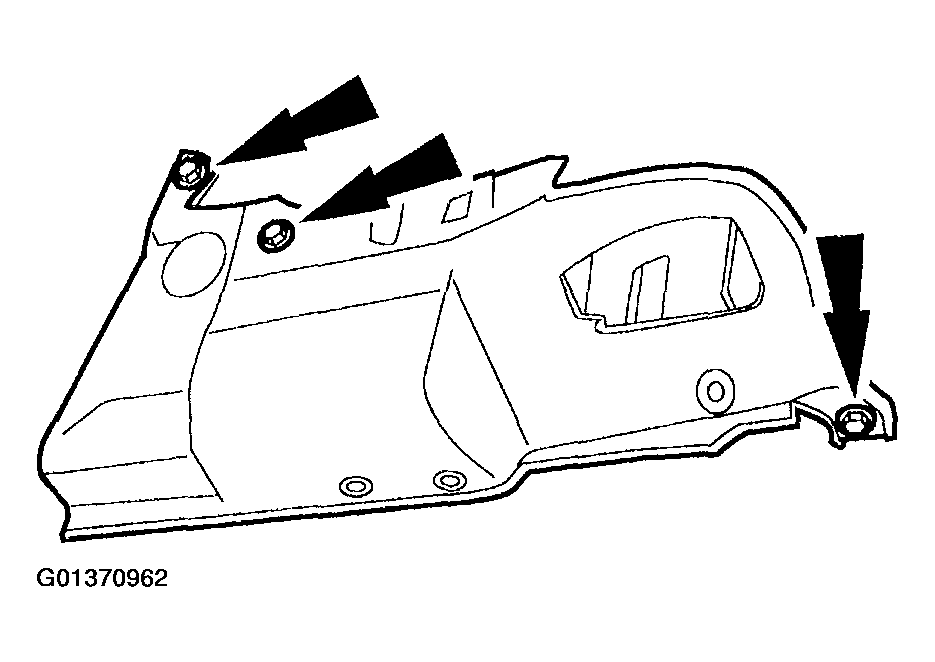

    Fig 1: Removing Bolts And Splash Shield
    G01370962Courtesy of FORD MOTOR CO.
  6. Remove the bolts and the crankshaft pulley (6312) and washer.

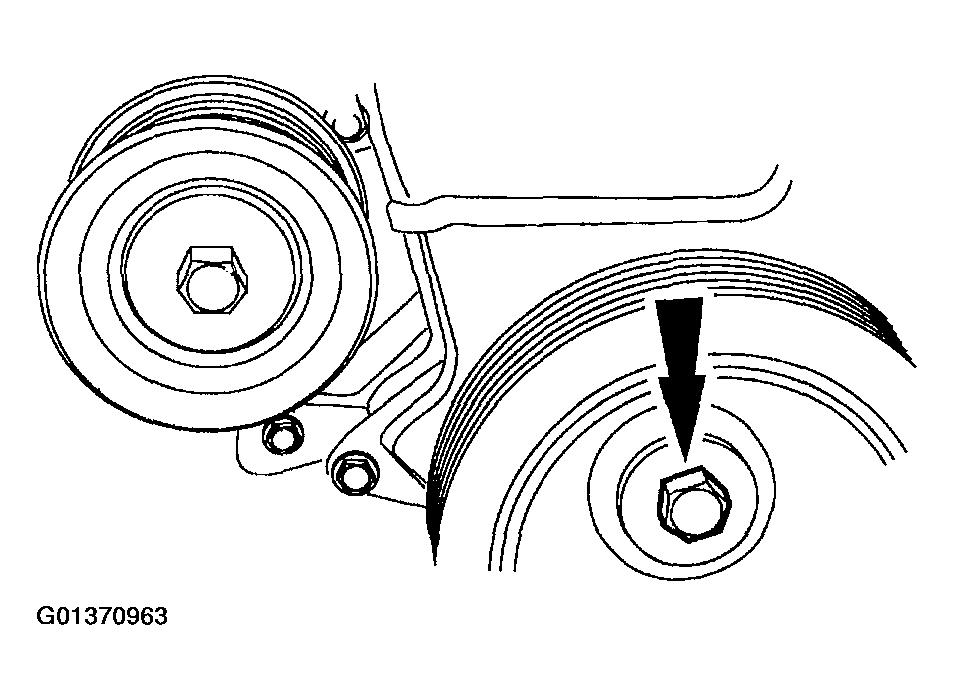

    Fig 2: Removing Bolts And Crankshaft Pulley
    G01370963Courtesy of FORD MOTOR CO.
