Timing Drive Components - Timing Sprockets: Installation

    CAUTION: The variable camshaft timing (VCT) sprocket has a rectangular tab on the backside of the sprocket which must align with the hole on the front face of the thrust bushing. Failure to align may result in poor engine performance.

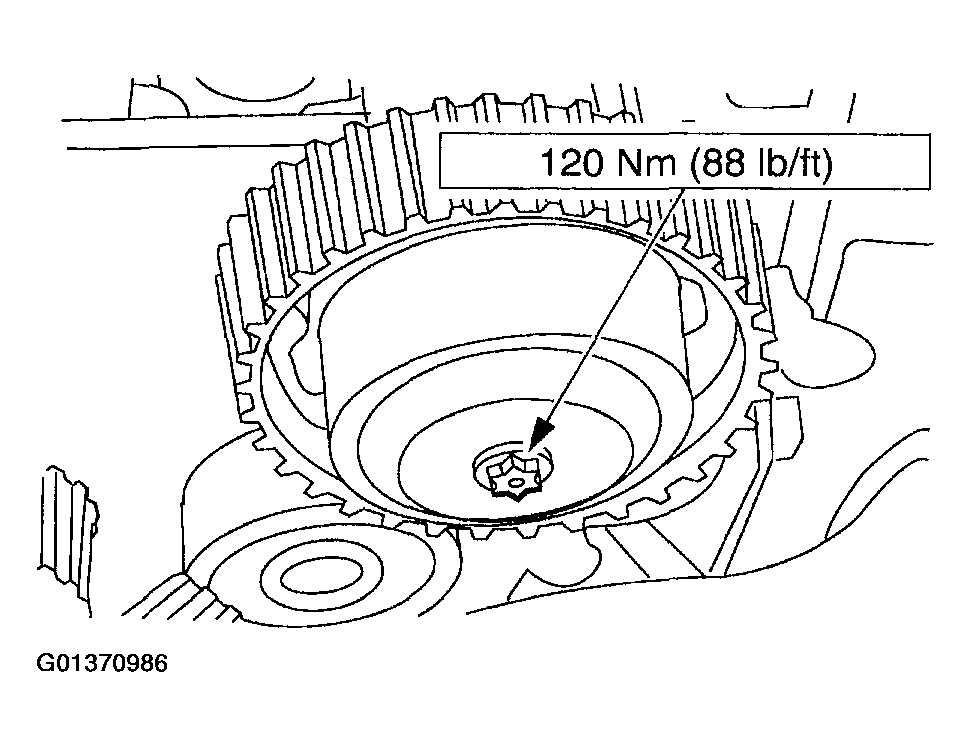

    Fig 1: Tightening Bolt With Torque Specification (1 Of 2)
    G01370986Courtesy of FORD MOTOR CO.

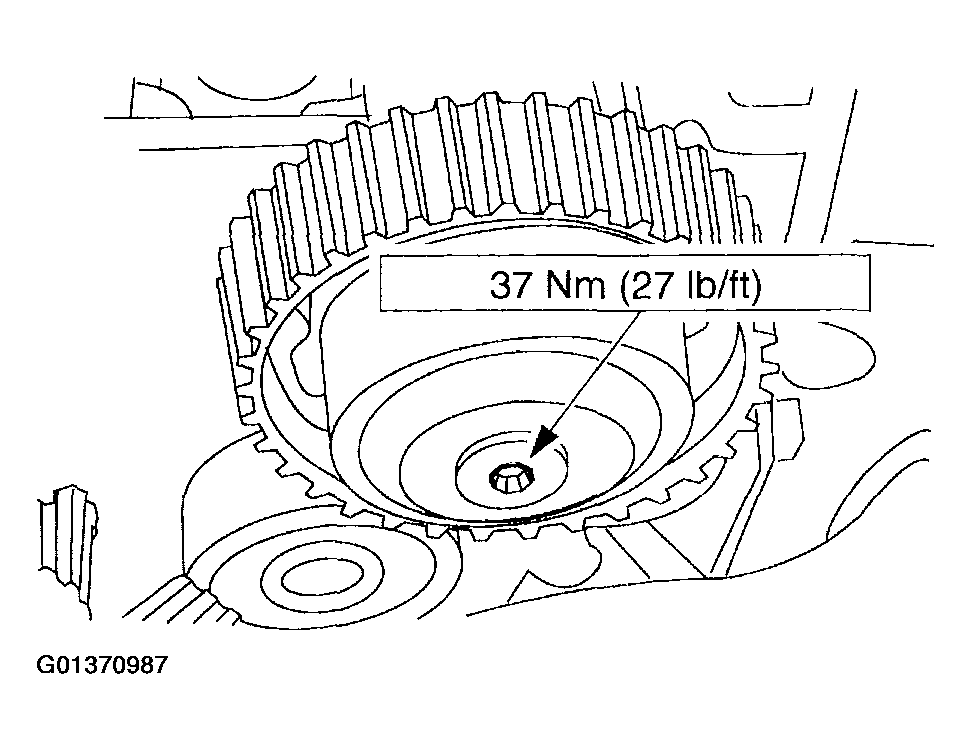

    Fig 2: Tightening Bolt With Torque Specification (2 Of 2)
    G01370987Courtesy of FORD MOTOR CO.

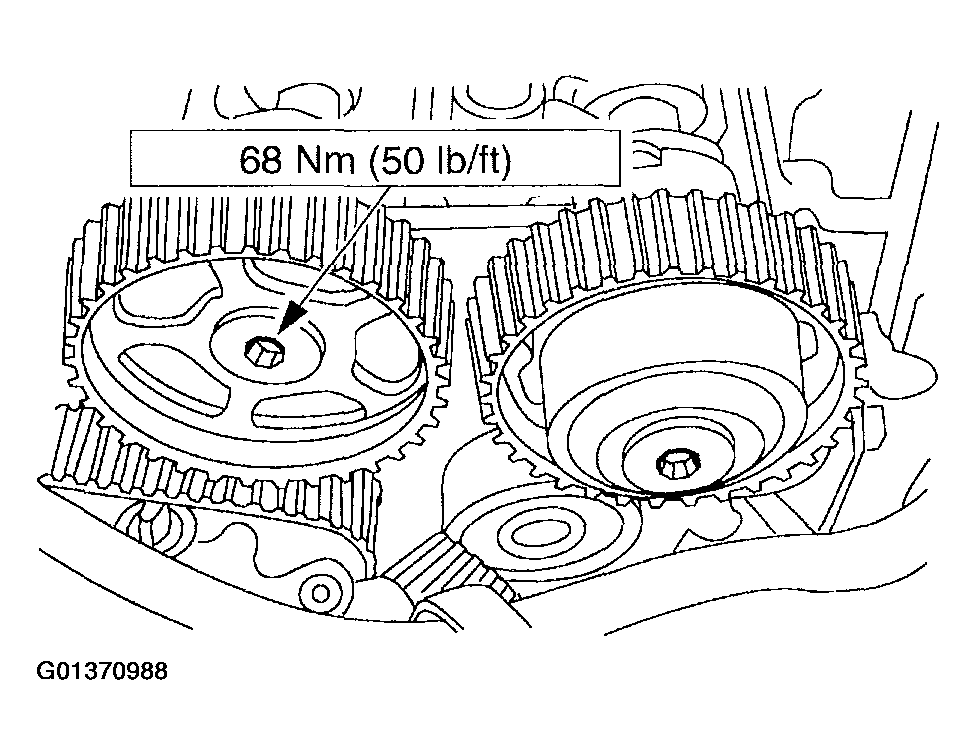

    Fig 3: Installing Bolt And Intake Camshaft Timing Sprocket
    G01370988Courtesy of FORD MOTOR CO.
  1. To install, reverse the removal procedure.
