Intermediate/Overdrive Cylinder Assembly, Disassembled View

WARNING: This page is about a different car, the 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

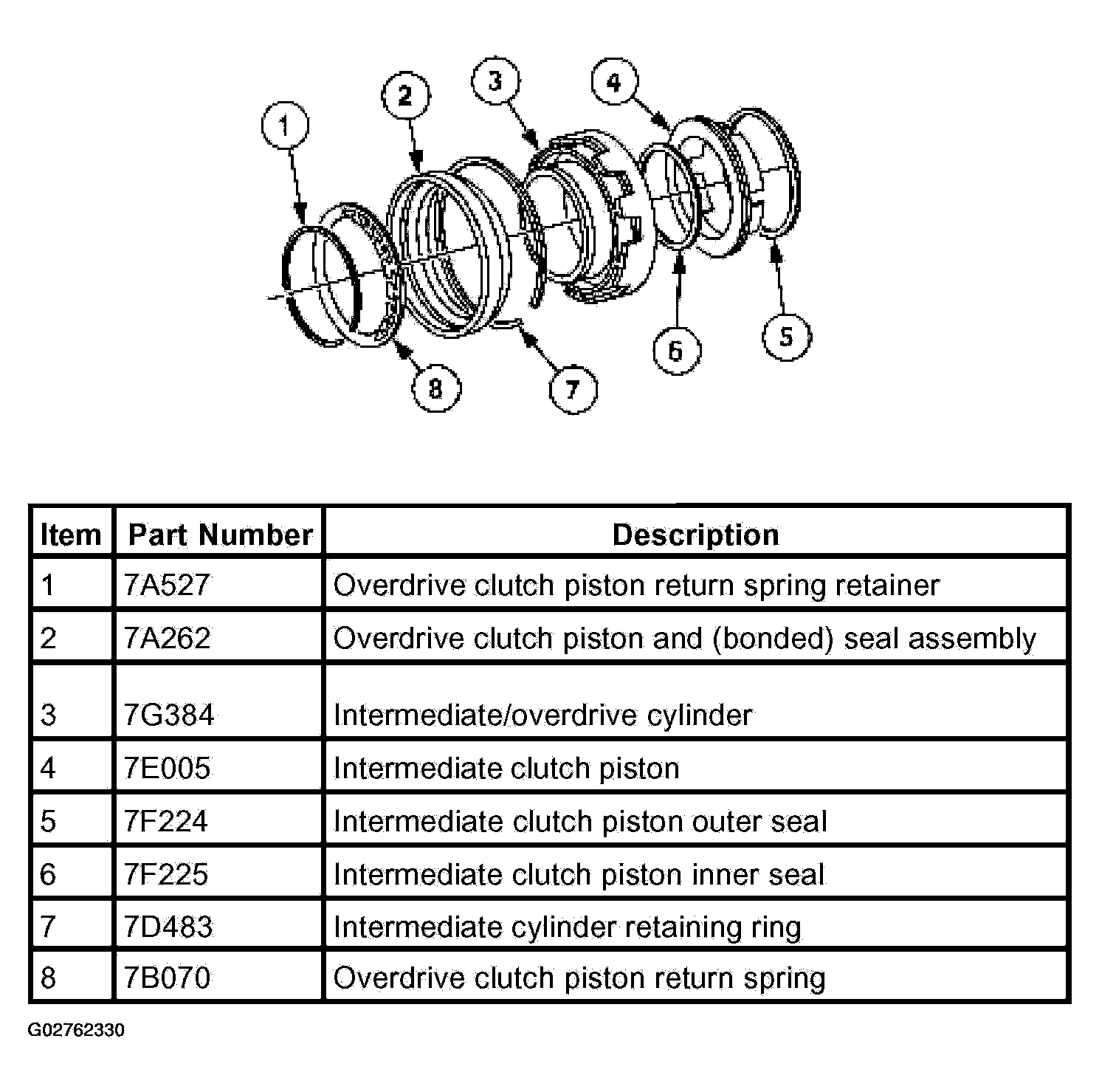

Fig 1: Disassembled View Intermediate/Overdrive Cylinder Assembly
G02762330Courtesy of FORD MOTOR CO.
