Low One-Way Clutch Assembly: Notes

WARNING: This page is about a different car, the 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

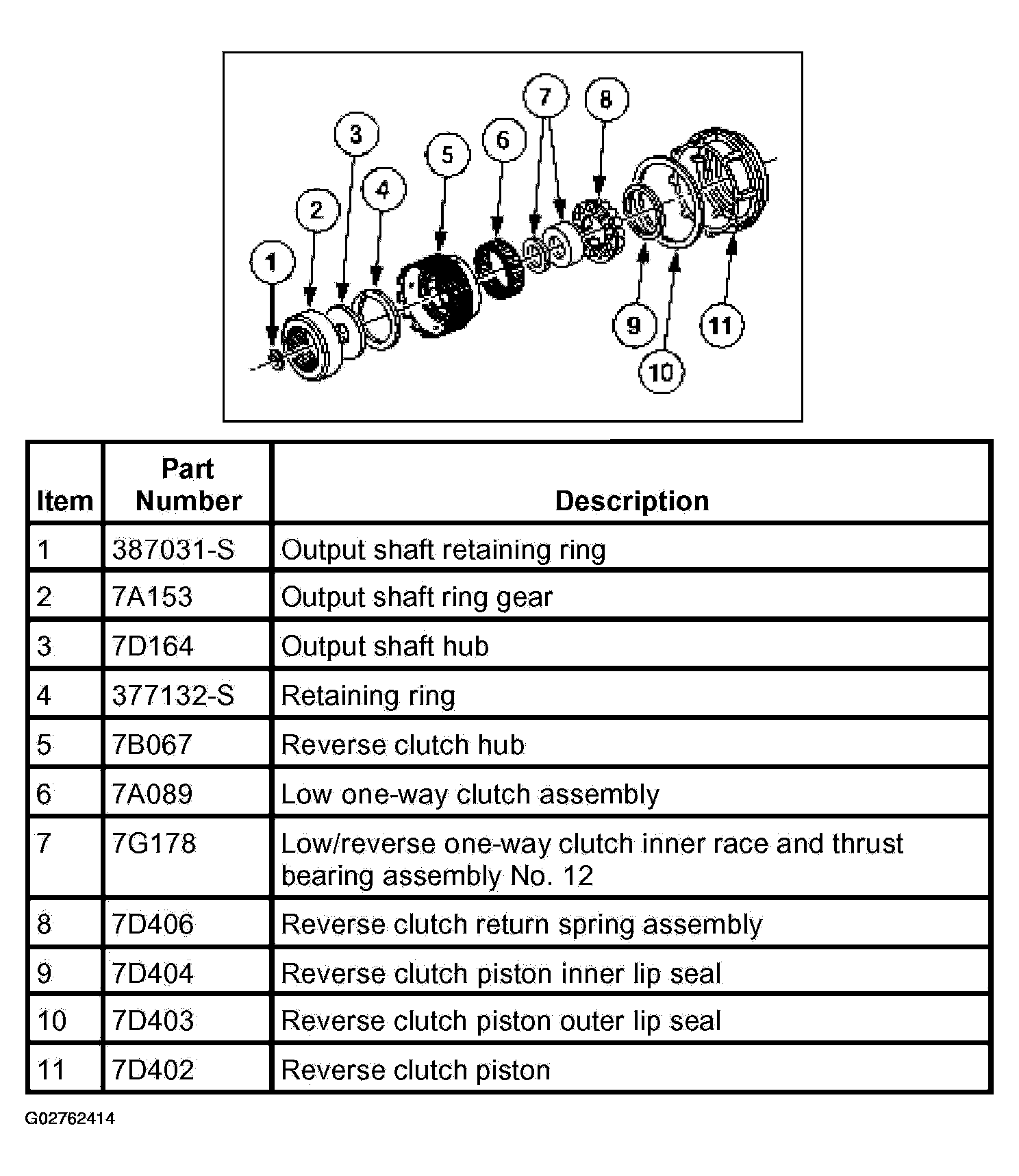

Low/Reverse One-Way Clutch Assembly and Piston, Disassembled View

Fig 1: Disassembled View Low/Reverse One-Way Clutch Assembly
G02762414Courtesy of FORD MOTOR CO.
