Pump Assembly, Disassembled View

WARNING: This page is about a different car, the 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

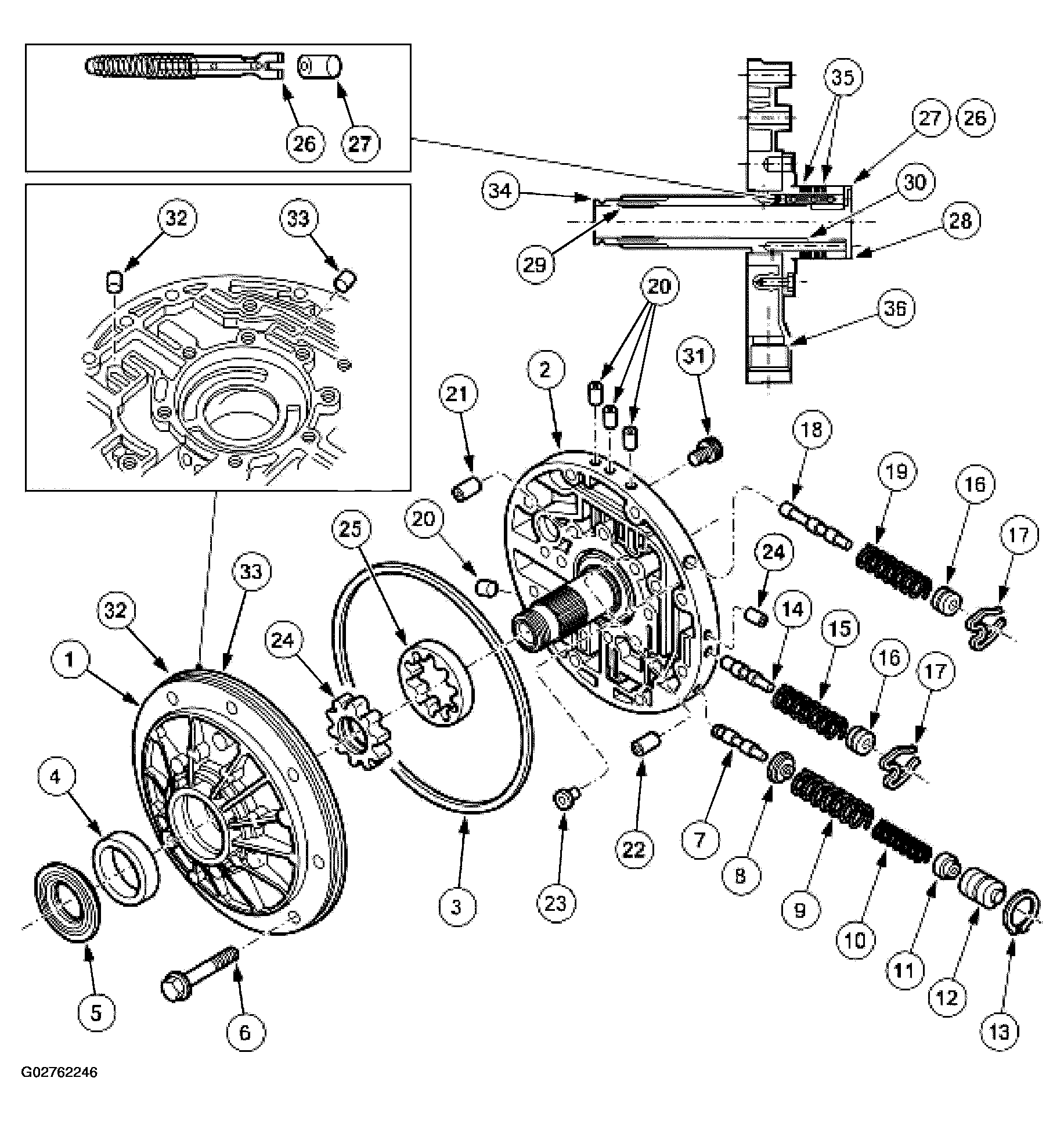

Fig 1: Disassembled View Pump Assembly
G02762246Courtesy of FORD MOTOR CO.

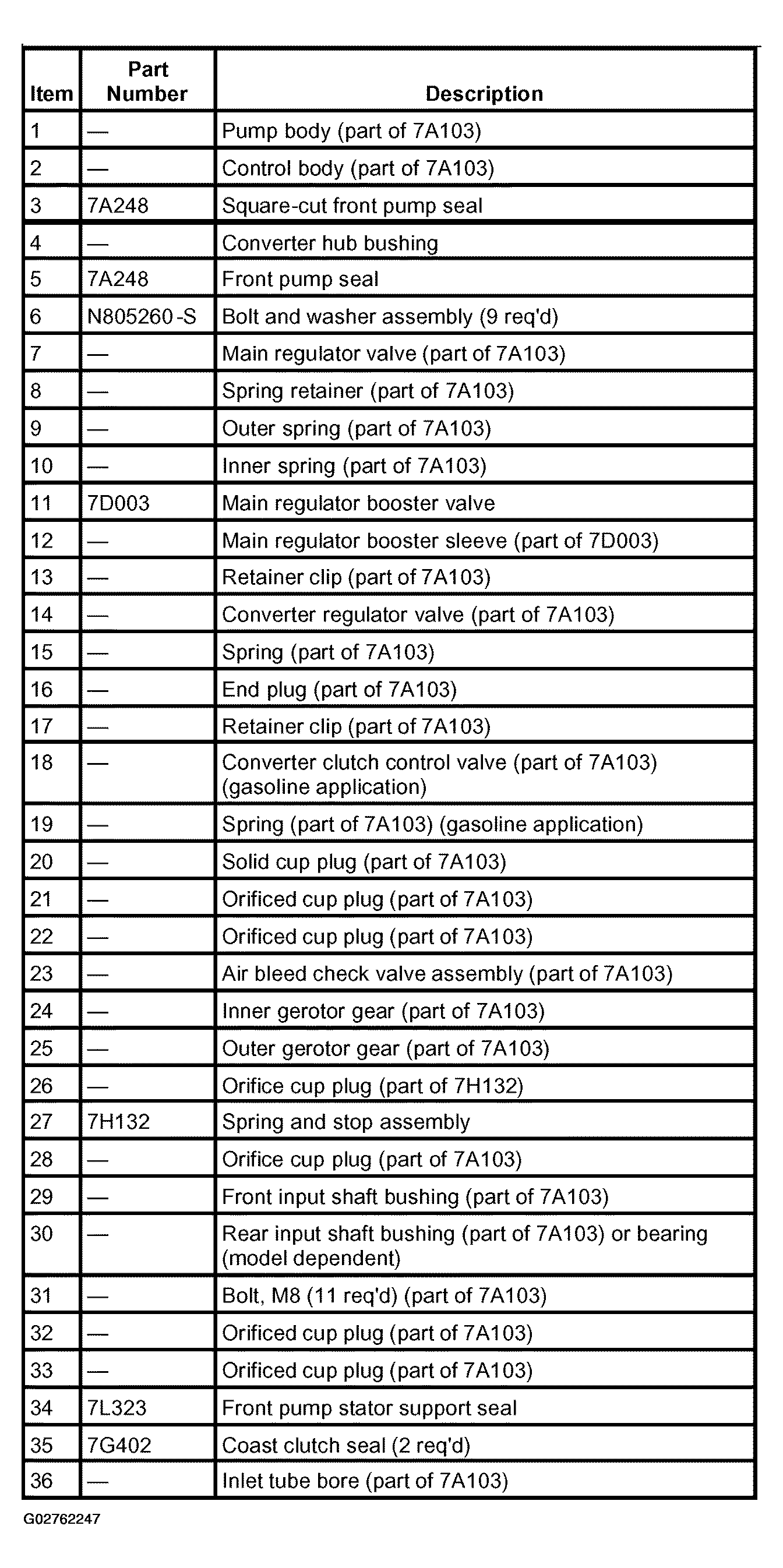

Fig 2: Items Description (Items 1-36)
G02762247Courtesy of FORD MOTOR CO.
